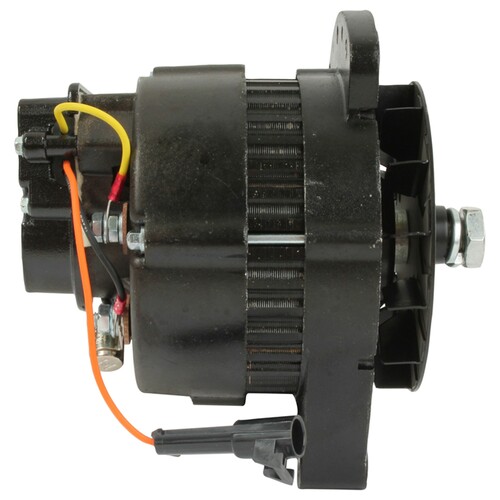

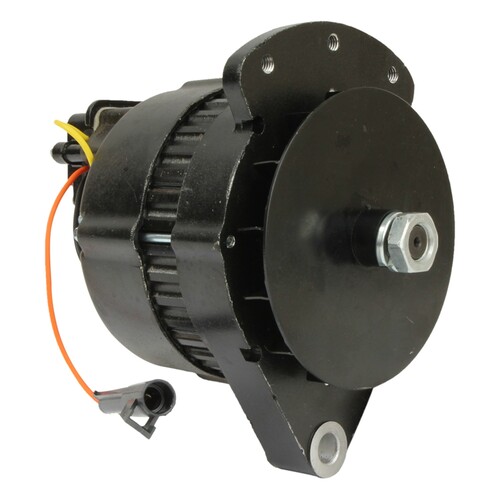

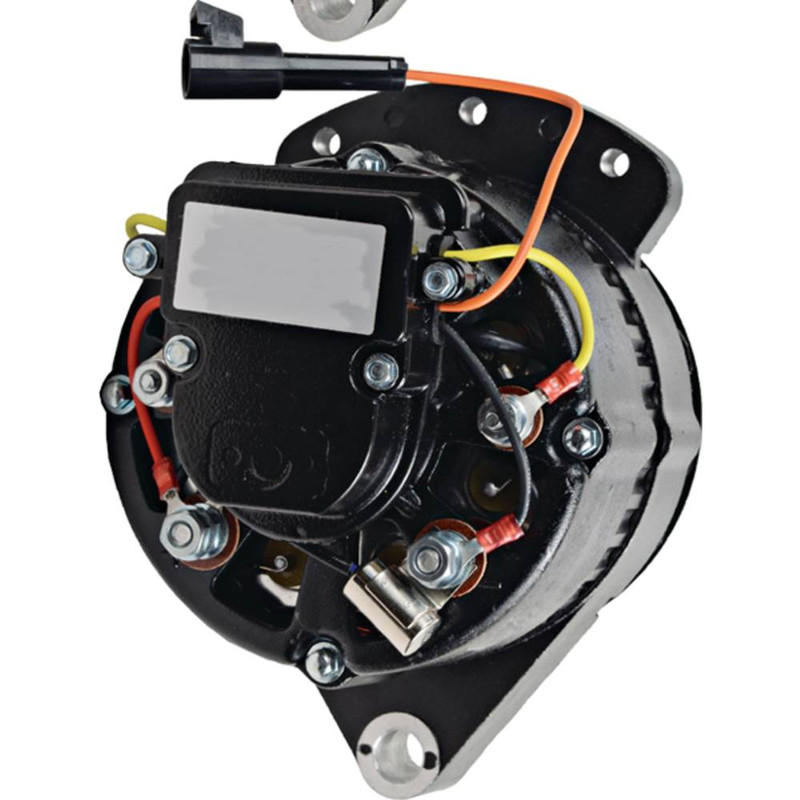

NEW Alternator for ATLAS Crawler Excavators & DEUTZ Engines; 400-29019, 01183618, [MAHLE11.203.061, 11.203.399, AAK5143, AAK5334, AAK5568, IA1026, MG312]; LESTER 14622
$314.94
Specifications
| Description | Alternator |
| Family | Leece Neville 8MA/8MH/8MR |
| Quality Type | Standard |
| Volt | 12 |
| Amps | 105 |
| Regulator Clock | 12:00 |
| Rotation Direction | Counter Clockwise |
| Mount Hole ID 1 | 5/16-18 |
| Mount Hole 1 Type | Threaded |
| Mount Hole ID 2 | 5/16-18 |
| Mount Hole 2 Type | Threaded |
| Mount Hole ID 3 | 5/16-18 |
| Mount Hole 3 Type | Threaded |
| Mount Hole ID 4 | 13.300mm |
| Mount Hole 4 Type | Unthreaded |
| Mounting Ear Thickness | 0.433″ |
| Mounting Ear Thickness | 11mm |
| Mounting Ear 2 Thickness | 0.433″ |
| Mounting Ear 2 Thickness | 11mm |
| Mounting Ear 3 Thickness | 0.433″ |
| Mounting Ear 3 Thickness | 11mm |
| Mounting Ear 4 Thickness | 1.071″ |
| Mounting Ear 4 Thickness | 27.200mm |
| Fan Location | External |
| Regulator Location | Internal |
| Terminal ID 2 | B+ |
| Terminal 2 Size | 1/4-20 |
| Terminal ID 3 | D+ |
| Terminal 3 Size | Spade |
| Terminal ID 4 | AC |
| Terminal 4 Size | 10-24 |
| Terminal ID 5 | B- |
| Terminal 5 Size | 1/4-20 |
| Shaft Pulley OD | 0.630″ |
| Shaft Pulley OD | 16mm |
| Shaft | 5/8-16 |
| Warranty | 1 Year |
| Includes Fan, Self Excited, D+ Spade Terminal with Lead |
