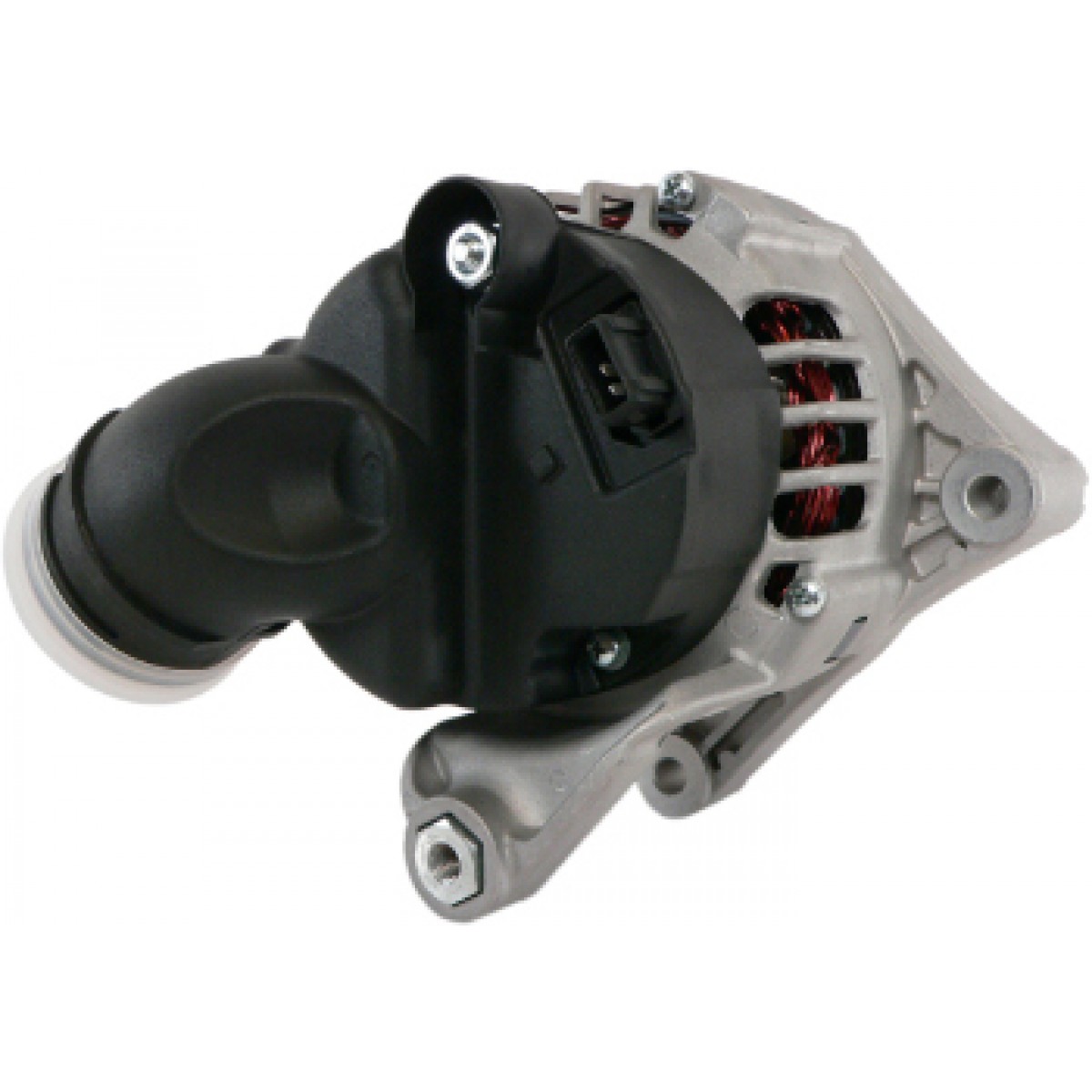

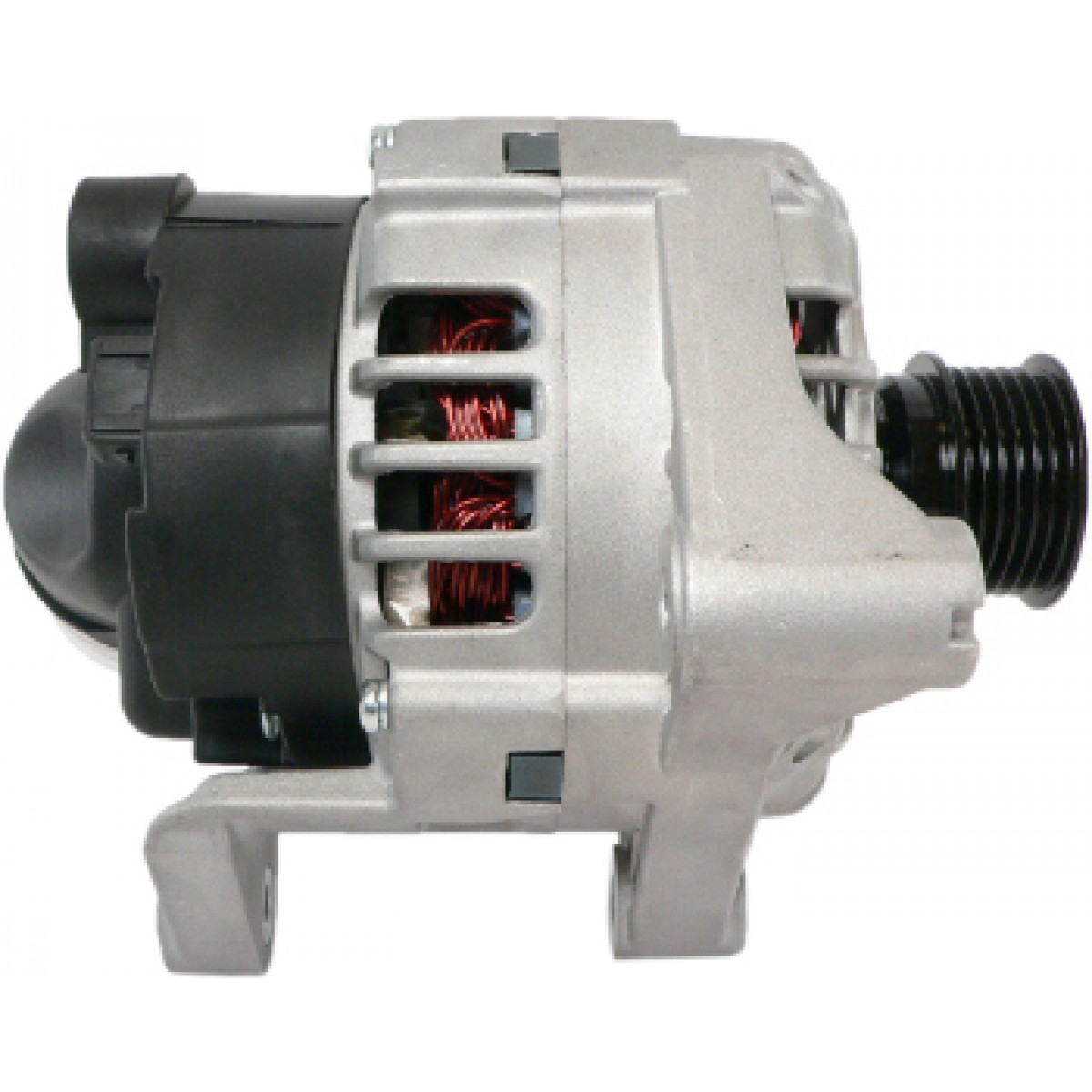

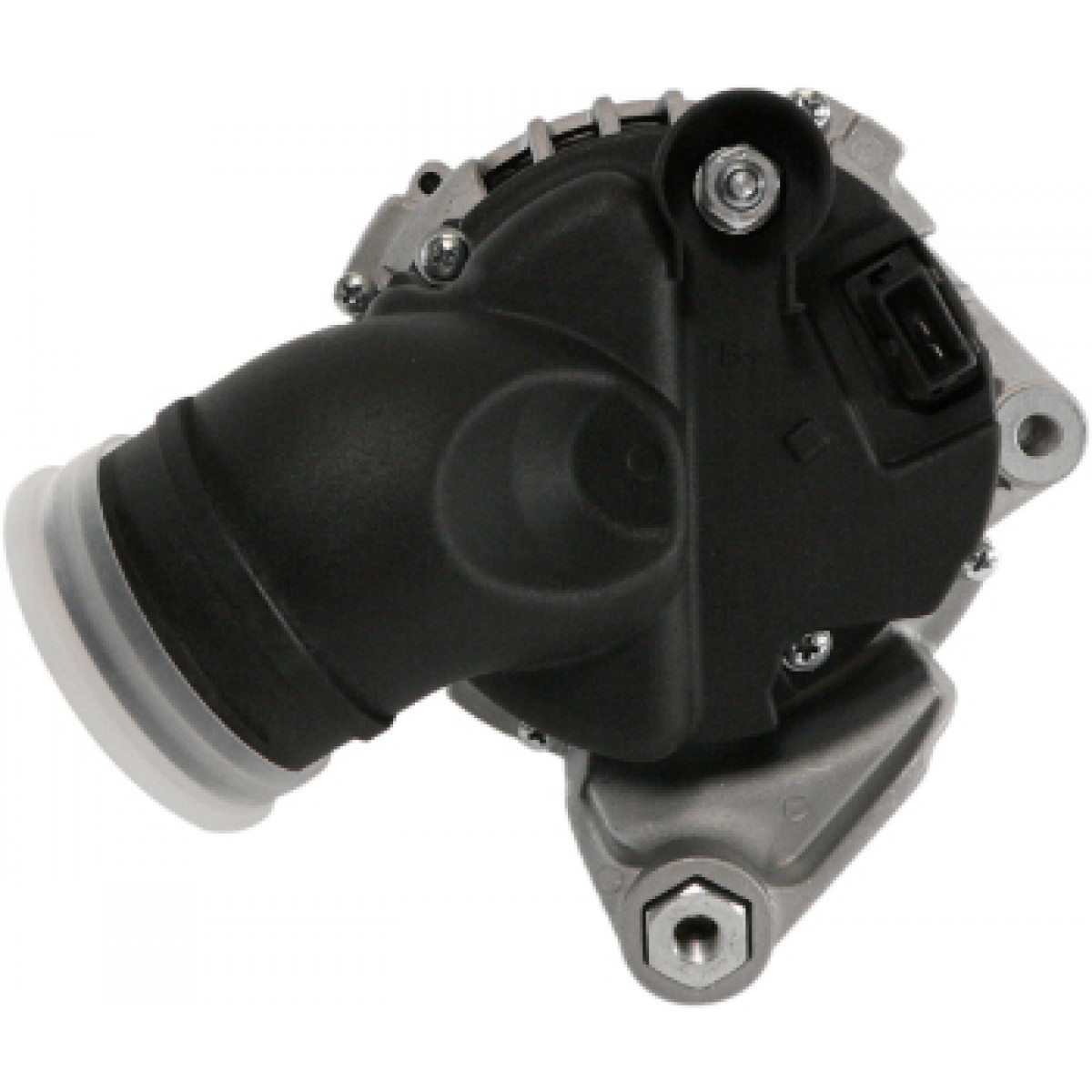

NEW Alternator for BMW Applications; 400-40091, 12-31-7-510-593, 12-31-7-510-597, 12-31-7-510-599, 2542377, 437367, 439398, SG12B029; LESTER 13970
$254.99
Specifications
| UNIT TYPE | Alternator |
| VOLT | 12 |
| AMPS | 120 |
| REGULATOR CLOCK | 2:00 |
| ROTATION DIRECTION | Clockwise |
| MOUNT HOLE ID 1 | 10.600mm |
| MOUNT HOLE 1 TYPE | Unthreaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| MOUNT HOLE ID 3 | M10x1.50 |
| MOUNT HOLE 3 TYPE | Threaded |
| MOUNTING EAR THICKNESS | 1.811″ |
| MOUNTING EAR THICKNESS | 46mm |
| MOUNTING EAR 2 THICKNESS | 1.102″ |
| MOUNTING EAR 2 THICKNESS | 28mm |
| MOUNTING EAR 3 THICKNESS | 0.945″ |
| MOUNTING EAR 3 THICKNESS | 24mm |
| FAN LOCATION | Internal |
| REGULATOR LOCATION | Internal |
| TERMINAL ID 2 | B+ |
| TERMINAL 2 SIZE | M8x1.25 |
| TERMINAL ID 3 | L |
| TERMINAL 3 SIZE | Spade |
| TERMINAL ID 4 | IG |
| TERMINAL 4 SIZE | Spade |
| POLARITY | Negative |
| NUMBER OF GROOVES | 6 |
| GROOVE OD | 1.929″ |
| GROOVE OD | 49mm |
| PULLEY TYPE | Solid |
| PULLEY OUTER DIAMETER | 2.165″ |
| PULLEY OUTER DIAMETER | 55mm |
| ADD’L INFO | 64.4mm OD Air Intake |
WRITE YOUR OWN REVIEW
We appreciate your feedback about our parts, services experience or anything which may help us to serve you better.
[testimonial_view id=”1″]
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | AVA0041, BAL0703X, V439398 |
| BMW | 12-31-7-510-593, 12-31-7-510-597, 12-31-7-510-599 |
| BOSCH | AL0703X |
| J&N ELECTRICAL PRODUCTS | 400-40091 |
| LESTER | 13970 |
| LUCAS ELECTRIC | LRA02204 |
| VALEO | 2542377, 437367, 439398, SG12B029 |
Part fit
| Year | Make | Model | Engine |
|---|---|---|---|
| Year | Make | Model | Engine |
| 2001 - 2003 | BMW | 325 SERIES | 2.5L |
| 2001 - 2003 | BMW | 525 SERIES | 2.5L |
| 2001 - 2003 | BMW | 530 SERIES | 3.0L |
| 2001 - 2006 | BMW | 330 SERIES | 3.0L |
| 2001 - 2006 | BMW | X5 | 3.0L |
