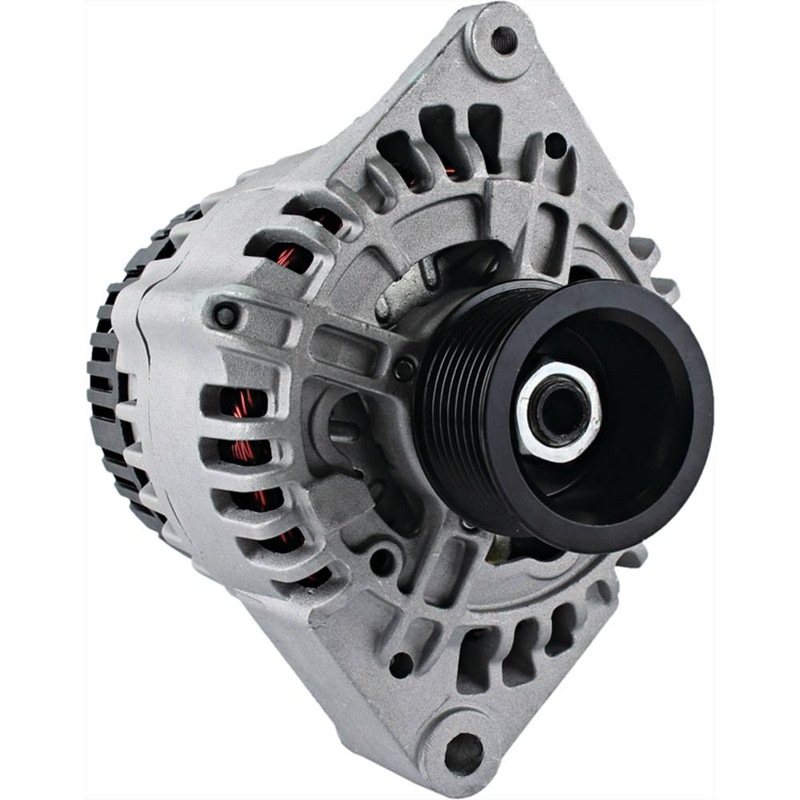

NEW Alternator for CASE IH & NEW HOLLAND Applications; 400-29030, 2855467, 87371504, 504193811, MG561; LESTER 11675
$249.99
Search: Mahle Alt.
Specifications
| UNIT TYPE | Alternator |
| FAMILY | Letrika/MAHLE AAK |
| VOLT | 12 |
| AMPS | 120 |
| ROTATION DIRECTION | Clockwise |
| MOUNT HOLE ID 1 | M8x1.25 |
| MOUNT HOLE 1 TYPE | Threaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| MOUNTING EAR THICKNESS | 0.630″ |
| MOUNTING EAR THICKNESS | 16mm |
| MOUNTING EAR 2 THICKNESS | 2″ |
| MOUNTING EAR 2 THICKNESS | 50.800mm |
| FAN LOCATION | Internal |
| REGULATOR LOCATION | Internal |
| TERMINAL ID 2 | B+ |
| TERMINAL 2 SIZE | M8x1.25 |
| TERMINAL ID 3 | D+ |
| TERMINAL 3 SIZE | M5x0.8 |
| TERMINAL ID 4 | W |
| TERMINAL 4 SIZE | M5x0.8 Spade Combo |
| POLARITY | Negative |
| NUMBER OF GROOVES | 8 |
| PULLEY TYPE | Solid |
| PULLEY OUTER DIAMETER | 2.343″ |
| PULLEY OUTER DIAMETER | 59.500mm |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | AIA0023, MG561 |
| CASEIH | 2855467, 87371504 |
| FIAT | 2855467, 87371504 |
| IVECO | 504193811 |
| J&N ELECTRICAL PRODUCTS | 400-29030 |
| LESTER | 11675 |
| LETRIKA/ISKRA | 11.203.434, AAK5581, IA 1286 |
| MAHLE | 11.203.434, AAK5581, IA1286, MG561 |
