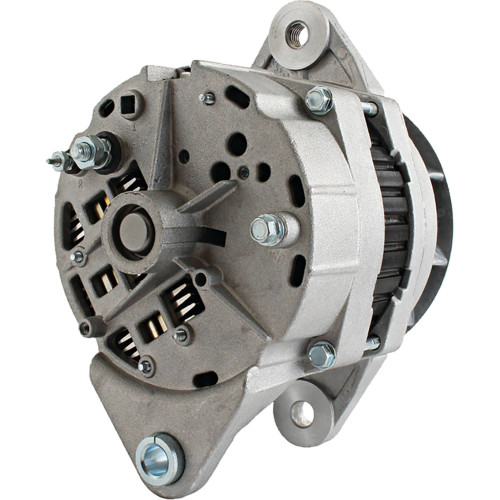

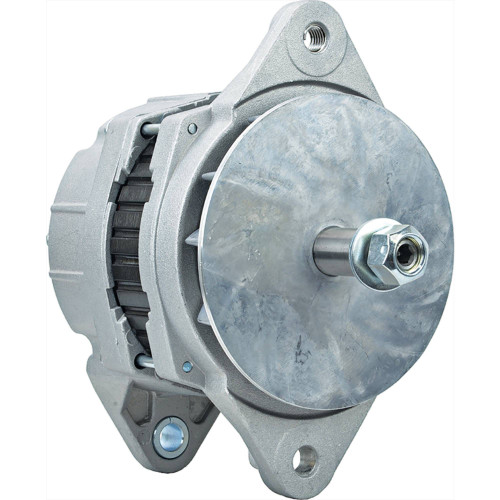

NEW Alternator for CASE IH 9210 to 9280 & 9310 to 9390 Tractors; 400-12476, 3675159RX, [DELCO 10459460, 10459463, 1117926, 1117945, 19010118]; LESTER 8029, 8035, 8037, 8038
$189.99
Specifications
| UNIT TYPE | Alternator |
| FAMILY | Delco 21SI |
| VOLT | 12 |
| AMPS | 160 |
| REGULATOR CLOCK | 12:00 |
| J180 HINGE LENGTH | 197.87 |
| MOUNT HOLE ID 1 | 1/2-13 |
| MOUNT HOLE 1 TYPE | Threaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| MOUNT HOLE ID 3 | 13.200mm |
| MOUNT HOLE 3 TYPE | Unthreaded |
| MOUNTING EAR THICKNESS | 0.571″ |
| MOUNTING EAR THICKNESS | 14.500mm |
| MOUNTING EAR 2 THICKNESS | 0.571″ |
| MOUNTING EAR 2 THICKNESS | 14.500mm |
| MOUNTING EAR 3 THICKNESS | 0.787″ |
| MOUNTING EAR 3 THICKNESS | 20mm |
| FAN LOCATION | External |
| REGULATOR LOCATION | Internal |
| TERMINAL ID 2 | B+ |
| TERMINAL 2 SIZE | 5/16-18 |
| TERMINAL ID 3 | R |
| TERMINAL 3 SIZE | 10-24 |
| POLARITY | Negative |
| SHAFT PULLEY OD | 0.875″ |
| SHAFT PULLEY OD | 22.220mm |
| SHAFT | 5/8-18 |
| WARRANTY | 1 Year |
| ADD’L INFO | 3-Wire System |
