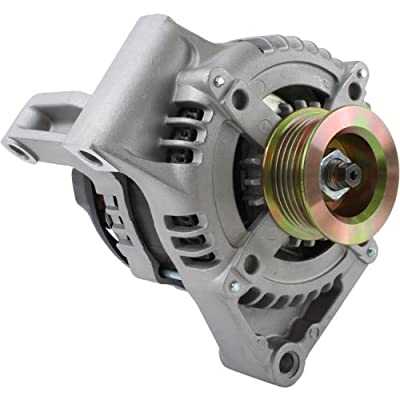

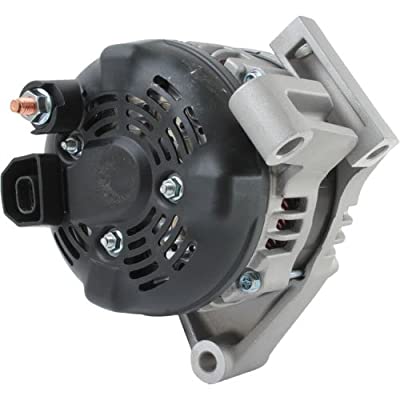

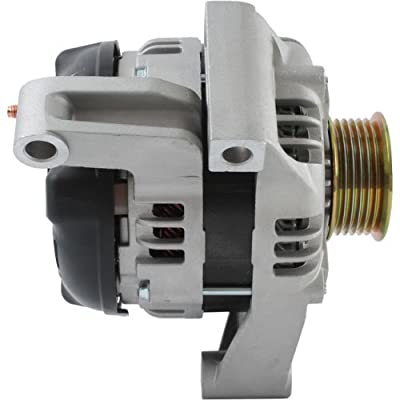

NEW Alternator for CHEVROLET & PONTIAC Applications; AND0420, 104210-2160, 104210-5070, 104210-5420, 210-0613, 15826299, 25862643, 96673482; LESTER 11156, 11476
$274.99
Specifications
| UNIT TYPE | Alternator |
| FAMILY | Denso SC (Hairpin) |
| VOLT | 12 |
| AMPS | 150 |
| REGULATOR CLOCK | 9:00 |
| ROTATION DIRECTION | Clockwise |
| MOUNT HOLE ID 1 | 11.300mm |
| MOUNT HOLE 1 TYPE | Unthreaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| MOUNT HOLE ID 3 | 10.300mm |
| MOUNT HOLE 3 TYPE | Unthreaded |
| MOUNTING EAR THICKNESS | 2.913″ |
| MOUNTING EAR THICKNESS | 74mm |
| MOUNTING EAR 2 THICKNESS | 1.197″ |
| MOUNTING EAR 2 THICKNESS | 30.400mm |
| MOUNTING EAR 3 THICKNESS | 1.705″ |
| MOUNTING EAR 3 THICKNESS | 43.300mm |
| FAN LOCATION | Internal |
| REGULATOR LOCATION | Internal |
| TERMINAL ID 2 | B+ |
| TERMINAL 2 SIZE | M8x1.25 |
| TERMINAL ID 3 | F |
| TERMINAL 3 SIZE | Spade |
| TERMINAL ID 4 | L |
| TERMINAL 4 SIZE | Spade |
| POLARITY | Negative |
| NUMBER OF GROOVES | 6 |
| GROOVE OD | 2.240″ |
| GROOVE OD | 56.900mm |
| PULLEY TYPE | Solid |
| PULLEY OUTER DIAMETER | 2.484″ |
| PULLEY OUTER DIAMETER | 63.100mm |
WRITE YOUR OWN REVIEW
We appreciate your feedback about our parts, services experience or anything which may help us to serve you better.
[testimonial_view id=”1″]
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | ND0420, AND0524, VND0420 |
| BOSCH | AL8630X |
| DELCO | 15826299 |
| DENSO | 104210-2160, 104210-5070, 104210-5420, 210-0613 |
| GENERAL MOTORS | 15826299, 25862643, 96673482 |
| J&N ELECTRICAL PRODUCTS | 400-52374, 400-52374R |
| LESTER | 11156, 11476 |
Applications
| MAKE | MODEL | ENGINE | YEAR |
| CHEVROLE | EQUINOX | 3.4L(207) V6 | 2007, 2008, 2009 |
| PONTIAC | TORRENT | 3.4L(207) V6 | 2007, 2008, 2009 |
| SATURN | VUE | 3.5L(213) V6 | 2008, 2009, 2010 |
