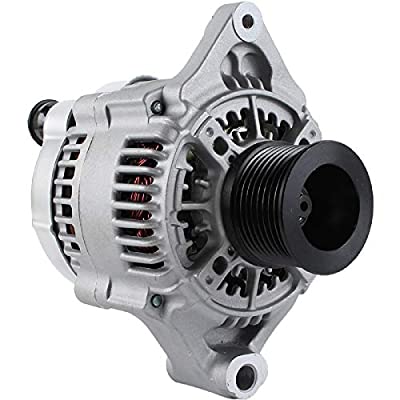

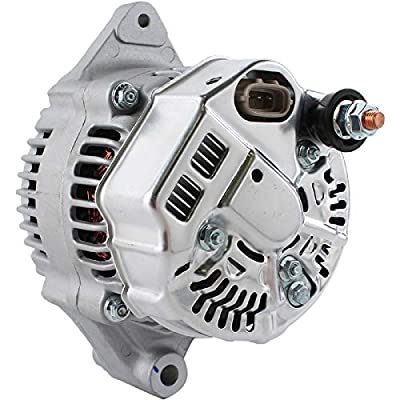

NEW Alternator for Case IH Various Applications; 400-52220, 87422777, 84254289, 021080-1600, 102211-9090; LESTER 12776
$204.99
Specifications
| UNIT TYPE |
Alternator |
| VOLT |
12 |
| AMPS |
90 |
| REGULATOR CLOCK |
12:00 |
| MOUNT HOLE ID 1 |
M8x1.25 |
| MOUNT HOLE 1 TYPE |
Threaded |
| MOUNT HOLE 2 TYPE |
Unthreaded |
| FAN LOCATION |
Internal |
| REGULATOR LOCATION |
Internal |
| TERMINAL ID 2 |
B+ |
| TERMINAL 2 SIZE |
M8x1.25 |
| POLARITY |
Negative |
| NUMBER OF GROOVES |
8 |
| PULLEY TYPE |
Solid |
Part Number & Interchanges
| Manufacturer Name |
Manufacturer Part # |
| ARROWHEAD |
IA1453, MG137, ND021080-1600, ND102211-9090 |
| CASEIH |
87422777 |
| DENSO |
021080-1600, 102211-9090 |
| FORD/NEW HOLLAND |
84254289, 87422777 |
| J&N ELECTRICAL PRODUCTS |
400-52220 |
| LESTER |
12776 |
| LETRIKA/ISKRA |
IA 1453 |
| LUCAS ELECTRIC |
12776 |
| MAHLE |
MG137 |
