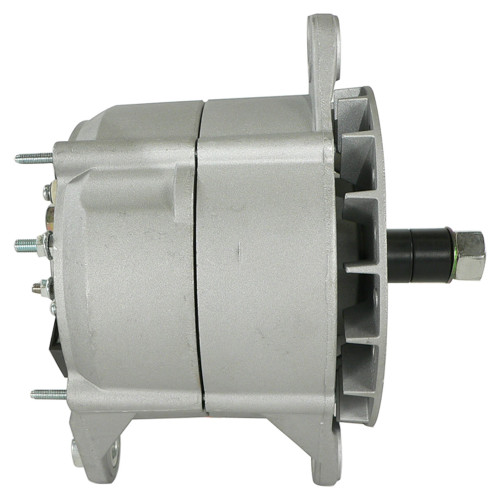

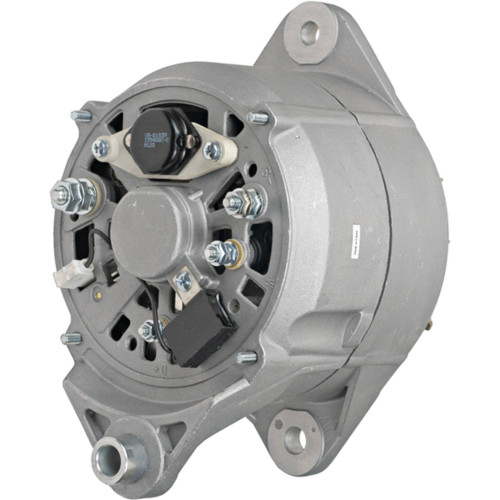

NEW Alternator for CASE, INTERNATIONAL, CATERPILLAR, JOHN DEERE and OTH Applications; 400-24055, 0120468055, 0-120-468-055, AL9941X; LESTER 12162
$208.38
Specifications
| Unit Type | Alternator |
| Volt | 12 |
| Amps | 135 |
| Regulator Clock | 12:00 |
| J180 Hinge Length | 197.87 |
| Mount Hole ID 1 | 1/2-13 |
| Mount Hole 1 Type | Threaded |
| Mount Hole 2 Type | Unthreaded |
| Mount Hole ID 3 | 13.300mm |
| Mount Hole 3 Type | Unthreaded |
| Mounting Ear Thickness | 0.551″ |
| Mounting Ear Thickness | 14mm |
| Mounting Ear 2 Thickness | 0.551″ |
| Mounting Ear 2 Thickness | 14mm |
| Mounting Ear 3 Thickness | 0.787″ |
| Mounting Ear 3 Thickness | 20mm |
| Fan Location | External |
| Regulator Location | Internal |
| Terminal ID 2 | B+ |
| Terminal 2 Size | 7/16-14 |
| Terminal ID 3 | D+ |
| Terminal 3 Size | M4x0.7 |
| Terminal ID 4 | W |
| Terminal 4 Size | M5x0.8 |
| Terminal ID 5 | B- |
| Terminal 5 Size | M6x1.00 |
| Polarity | Negative |
| Shaft Pulley OD | 0.875″ |
| Shaft Pulley OD | 22.220mm |
| Warranty | 1 Year |
