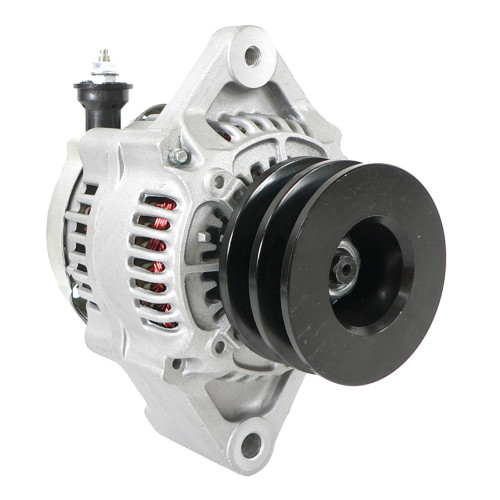

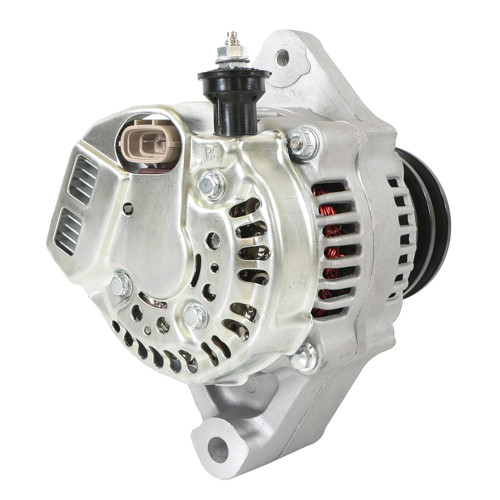

NEW Alternator for CATERPILLAR Applications; 400-52093, 0R4327, 0R9273, 105-2811, 1052812, 105-2812, OR4327, 101211-224, 101211-2240, 101211-231; LESTER 12346
$149.99
Specifications
| UNIT TYPE | Alternator |
| VOLT | 12 |
| AMPS | 55 |
| REGULATOR CLOCK | 12:00 |
| FAN LOCATION | Internal |
| REGULATOR LOCATION | Internal |
| TERMINAL ID 2 | B+ |
| TERMINAL 2 SIZE | M6x1.00 |
| POLARITY | Negative |
| WARRANTY | 1 Year |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | AND0526, ND101211-2240, ND101211-2310, ND9761219-224, ND9761219-231 |
| CATERPILLAR | 0R4327, 0R9273, 105-2811, 1052812, 105-2812, OR4327 |
| DENSO | 101211-224, 101211-2240, 101211-231, 101211-2310, 9761219-224, 9761219-231 |
| J&N ELECTRICAL PRODUCTS | 400-52093 |
| LESTER | 12346 |
Applications
Part fit
| MAKE | MODEL | Engine | YEAR |
| Caterpillar | 416 | 305 | 1992, 1993, 1994, 1995, 1996 |
| Caterpillar | 416B | Cat. 305 | 1992, 1993, 1994, 1995, 1996 |
| Caterpillar | 416B | Perkins 305 | 1992, 1993, 1994, 1995, 1996 |
| Caterpillar | 416C | Cat. 305 | 1996, 1997, 1998, 1999, 2000 |
| Caterpillar | 416C | Perkins 305 | 1996, 1997, 1998, 1999, 2000 |
| Caterpillar | 416D | Cat. 3054 -B – | 2001, 2002, 2003, 2004, 2005 |
| Caterpillar | 416D | Caterpillar 3054 | 2001, 2002, 2003, 2004, 2005 |
| Caterpillar | 416D | Perkins 305 | 2001, 2002, 2003, 2004, 2005 |
| Caterpillar | 420D | Cat. 305 | 2001, 2002, 2003, 2004, 2005 |
| Caterpillar | 420D | Perkins 305 | 2001, 2002, 2003, 2004, 2005 |
| Caterpillar | 424D | Cat. 3054 -B – | 2001, 2002, 2003, 2004, 2005 |
| Caterpillar | 424D | Caterpillar 3054 | 2001, 2002, 2003, 2004, 2005 |
| Caterpillar | 424D | Perkins 305 | 2001, 2002, 2003, 2004, 2005 |
| Caterpillar | 426B | Cat. 305 | 1992, 1993, 1994, 1995, 1996 |
| Caterpillar | 426B | Perkins 305 | 1992, 1993, 1994, 1995, 1996 |
| Caterpillar | 426C | 305 | |
| Caterpillar | 426C | Cat. 305 | |
| Caterpillar | 426C | Perkins 305 | 1996 |
| Caterpillar | 426C | ||
| Caterpillar | 428C | Cat. 305 | 1996, 1997, 1998, 1999, 2000, 2001 |
| Caterpillar | 428C | Perkins 305 | 1996, 1997, 1998, 1999, 2000, 2001 |
| Caterpillar | 428D | Cat. 3054 – | 2001, 2002, 2003, 2004, 2005 |
| Caterpillar | 428D | Caterpillar 3054 | 2001, 2002, 2003, 2004, 2005 |
| Caterpillar | 428D | Perkins 305 | 2001, 2002, 2003, 2004, 2005 |
| Caterpillar | 428E | 3054 | 2006 |
| Caterpillar | 428E | Cat. 3054 | |
| Caterpillar | 430D | Cat. 3054 – | 2001, 2002, 2003, 2004, 2005 |
| Caterpillar | 430D | Caterpillar 3054 | 2001, 2002, 2003, 2004, 2005 |
| Caterpillar | 430D | Perkins 305 | 2001, 2002, 2003, 2004, 2005 |
| Caterpillar | 430E | 3054 | 2006 |
| Caterpillar | 430E | Cat. 3054 | |
| Caterpillar | 432D | Cat. 3054 – | 2001, 2002, 2003, 2004, 2005 |
| Caterpillar | 432D | Caterpillar 3054 | 2001, 2002, 2003, 2004, 2005 |
| Caterpillar | 432D | Perkins 305 | 2001, 2002, 2003, 2004, 2005 |
| Caterpillar | 436C | 305 | |
| Caterpillar | 436C | Cat. 305 | |
| Caterpillar | 436C | Perkins 305 | 1996 |
| Caterpillar | 436C | ||
| Caterpillar | 438B | Cat. 305 | 1992, 1993, 1994, 1995, 1996 |
| Caterpillar | 438B | Perkins 305 | 1992, 1993, 1994, 1995, 1996 |
| Caterpillar | 438C | Cat. 305 | 1996, 1997, 1998, 1999, 2000, 2001 |
| Caterpillar | 438C | Perkins 305 | 1996, 1997, 1998, 1999, 2000, 2001 |
| Caterpillar | 438D | Cat. 305 | 2001, 2002, 2003 |
| Caterpillar | 438D | Perkins 305 | 2001, 2002, 2003 |
| Caterpillar | 442D | Cat. 305 | 2001, 2002, 2003, 2004, 2005 |
| Caterpillar | 442D | Perkins 305 | 2001, 2002, 2003, 2004, 2005 |
| Caterpillar | 908 | Cat. 305 | 1998, 1999, 2000, 2001, 2002, 2003 |
| Caterpillar | 908 | Perkins 305 | 1998, 1999, 2000, 2001, 2002, 2003 |
| Caterpillar | 908 | ||
| Caterpillar | 933 | ||
| Caterpillar | 933C | ||
| Caterpillar | 933CLGP | ||
| Caterpillar | 933LGP | ||
| Caterpillar | 939 | ||
| Caterpillar | 939C | ||
| Caterpillar | D3CIII | ||
| Caterpillar | D3CIIILGP | ||
| Caterpillar | D3CIIIXL | ||
| Caterpillar | D3G | ||
| Caterpillar | D3GLGP | ||
| Caterpillar | D4C | Perkins Engine | 1993, 1994, 1995 |
| Caterpillar | D4C | 1993, 1994, 1995 | |
| Caterpillar | D4CIII | ||
| Caterpillar | D4CIIILGP | ||
| Caterpillar | D4CIIIXL | ||
| Caterpillar | D4G | ||
| Caterpillar | D4GLGP | ||
| Caterpillar | D5CIII | ||
| Caterpillar | D5CIIILGP | ||
| Caterpillar | D5CIIIXL | ||
| Caterpillar | D5CLGP | ||
| Caterpillar | D5G | ||
| Caterpillar | D5GLGP | ||
| Caterpillar | TH62 | ||
| Caterpillar | TH63 | ||
| Caterpillar | TH82 |
