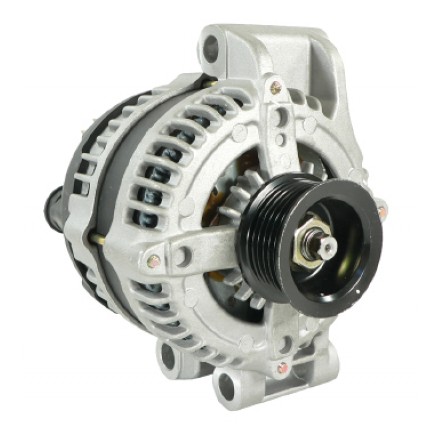

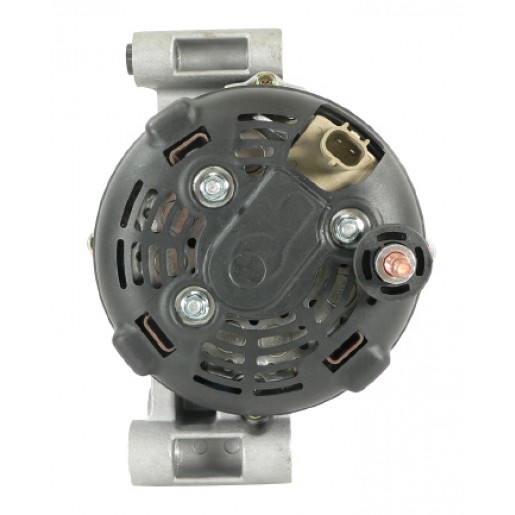

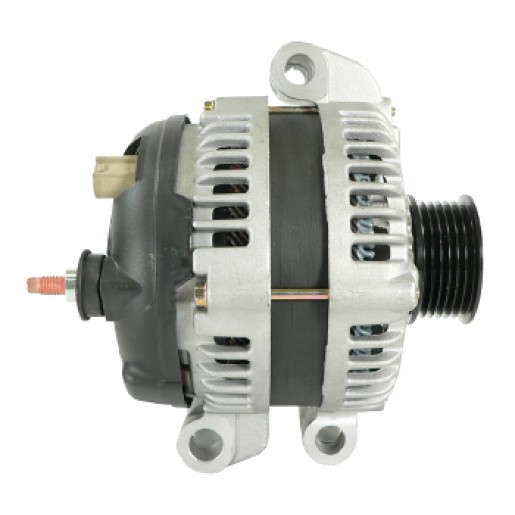

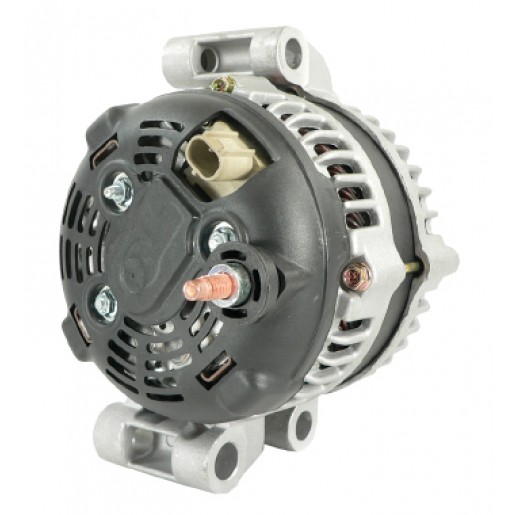

NEW Alternator for CHRYSLER & DODGE Applications; AND0342, 4896805AA, 4896805AB, 4896805AC, 210-0562, 421000-0260, 421000-0261, 421000-0262; LESTER 11113
$244.99
Specifications
| UNIT TYPE | Alternator |
| FAMILY | Denso SC (Hairpin) |
| VOLT | 12 |
| AMPS | 145 |
| REGULATOR CLOCK | 1:30 |
| ROTATION DIRECTION | Clockwise |
| MOUNT HOLE ID 1 | 10.800mm |
| MOUNT HOLE 1 TYPE | Unthreaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| MOUNT HOLE ID 3 | 12.700mm |
| MOUNT HOLE 3 TYPE | Unthreaded |
| MOUNTING EAR THICKNESS | 2.724″ |
| MOUNTING EAR THICKNESS | 69.200mm |
| MOUNTING EAR 2 THICKNESS | 2.555″ |
| MOUNTING EAR 2 THICKNESS | 64.900mm |
| MOUNTING EAR 3 THICKNESS | 2.555″ |
| MOUNTING EAR 3 THICKNESS | 64.900mm |
| FAN LOCATION | Internal |
| REGULATOR LOCATION | External |
| TERMINAL ID 2 | B+ |
| TERMINAL 2 SIZE | M8x1.25 |
| TERMINAL ID 3 | F1 |
| TERMINAL 3 SIZE | Spade |
| TERMINAL ID 4 | F2 |
| TERMINAL 4 SIZE | Spade |
| POLARITY | Negative |
| NUMBER OF GROOVES | 6 |
| PULLEY TYPE | Solid |
| PULLEY OUTER DIAMETER | 2.323″ |
| PULLEY OUTER DIAMETER | 59mm |
