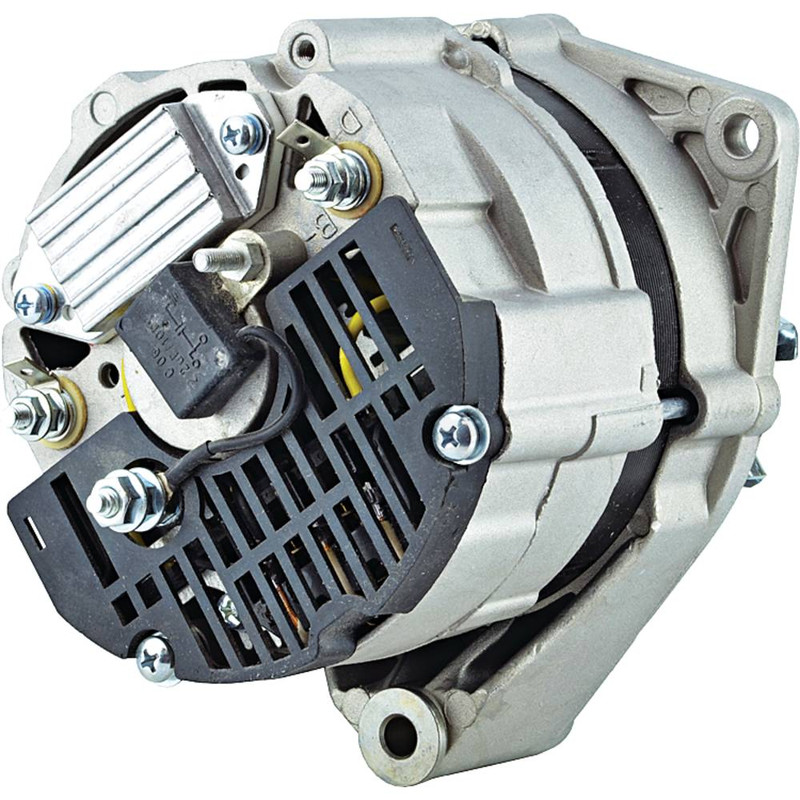

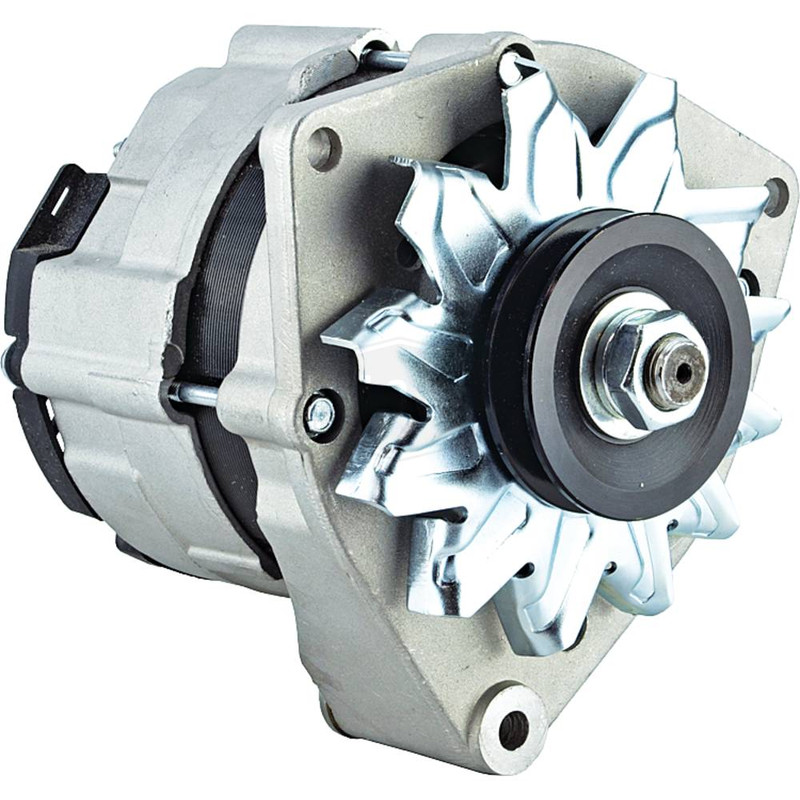

NEW Alternator for DEUTZ DX 6.5, IN-trac 6.3, IN-trac 6.6 Tractors & DEUTZ M2385 Combine; 400-29035, 12885N, 11.201.914, IA0914, MG210
$214.73
info: MAHLE Replacement | Search: MAHLE Alt
Specifications
| UNIT TYPE | Alternator |
| FAMILY | Letrika/MAHLE AAK |
| VOLT | 12 |
| AMPS | 80 |
| REGULATOR CLOCK | 11:00 |
| ROTATION DIRECTION | Clockwise |
| MOUNT HOLE ID 1 | 8.200mm |
| MOUNT HOLE 1 TYPE | Unthreaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| MOUNT HOLE ID 3 | 8.600mm |
| MOUNT HOLE 3 TYPE | Unthreaded |
| MOUNTING EAR THICKNESS | 0.449″ |
| MOUNTING EAR THICKNESS | 11.400mm |
| MOUNTING EAR 2 THICKNESS | 0.449″ |
| MOUNTING EAR 2 THICKNESS | 11.400mm |
| MOUNTING EAR 3 THICKNESS | 2.189″ |
| MOUNTING EAR 3 THICKNESS | 55.600mm |
| FAN LOCATION | External |
| REGULATOR LOCATION | Internal |
| TERMINAL ID 2 | B+ |
| TERMINAL 2 SIZE | M8x1.25 |
| TERMINAL ID 3 | D+ |
| TERMINAL 3 SIZE | M5x0.8 Spade Combo |
| TERMINAL ID 4 | W |
| TERMINAL 4 SIZE | M5x0.8 Spade Combo |
| TERMINAL ID 5 | B- |
| TERMINAL 5 SIZE | M4x0.7 |
| POLARITY | Negative |
| NUMBER OF GROOVES | 1 |
| PULLEY TYPE | Solid |
| PULLEY OUTER DIAMETER | 2.673″ |
| PULLEY OUTER DIAMETER | 67.900mm |
| ADD’L INFO | Dust Proof |
