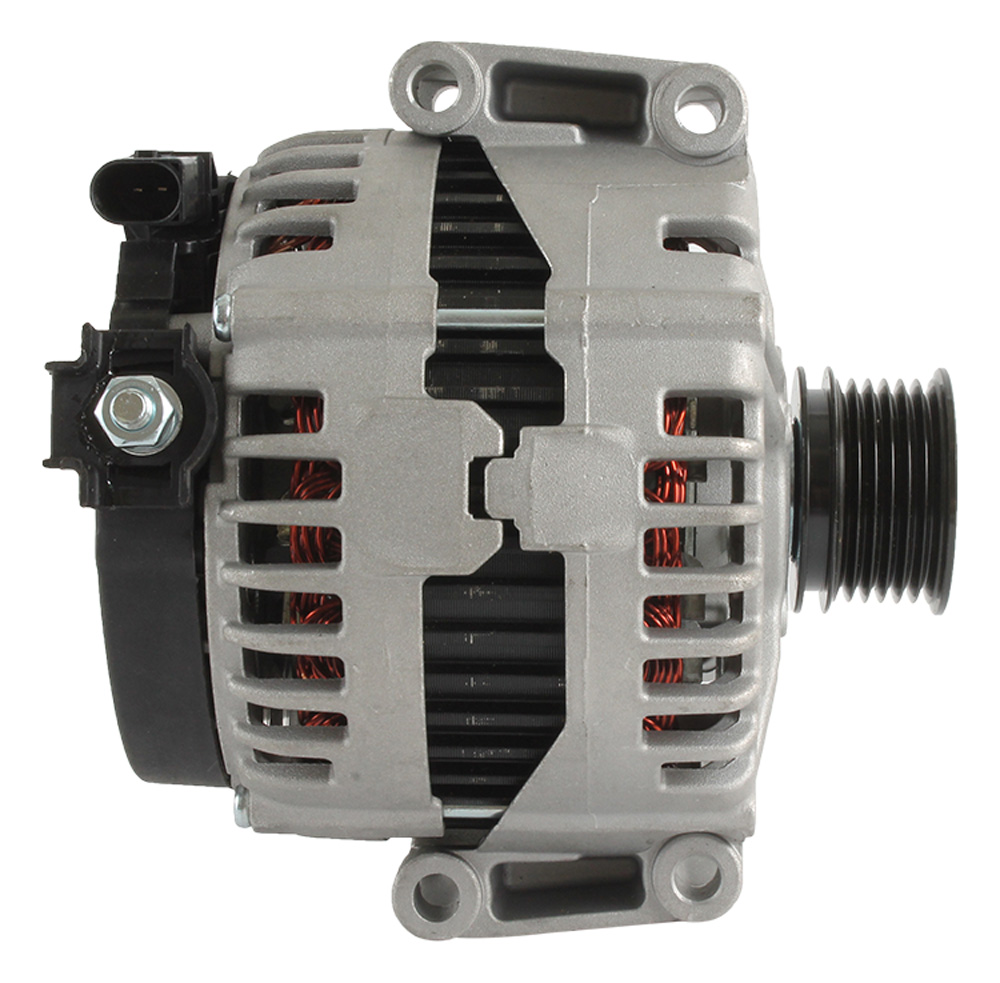

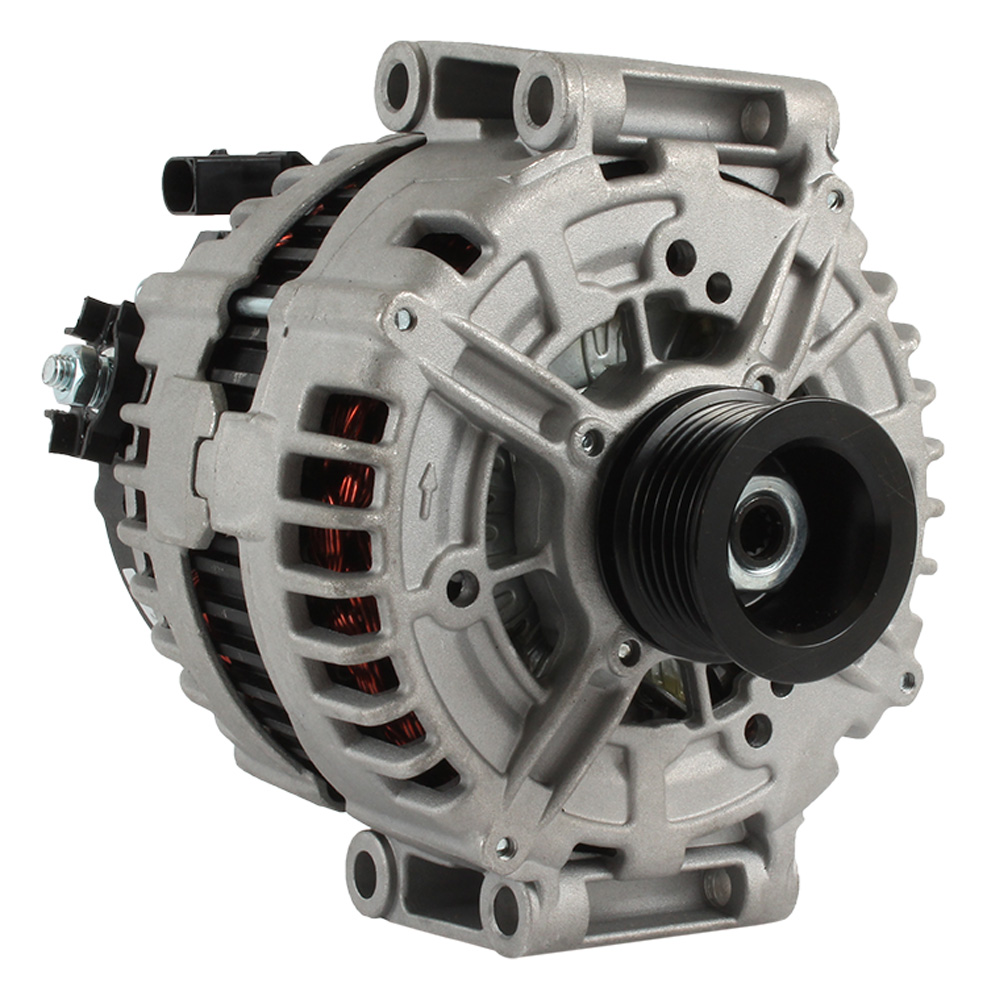

NEW Alternator for DODGE, FREIGHTLINER & MERCEDES BENZ Applications; 400-24225, 013-154-05-02, 68011843AA, 68011843AC, 68011843AD; LESTER 11305
$269.99
SEARCH: EXACT MATCH EXC. PULLEY
SEARCH: SAME EXC. USES CLUTCH TYPE
SEARCH: DIFF. RECT. & STATOR
Specifications
| UNIT TYPE | Alternator |
| VOLT | 12 |
| AMPS | 220 |
| REGULATOR CLOCK | 1:00 |
| ROTATION DIRECTION | Clockwise |
| MOUNT HOLE ID 1 | 9.300mm |
| MOUNT HOLE 1 TYPE | Unthreaded |
| MOUNT HOLE ID 2 | 8.400mm |
| MOUNT HOLE 2 TYPE | Unthreaded |
| MOUNT HOLE ID 3 | 9.300mm |
| MOUNT HOLE 3 TYPE | Unthreaded |
| MOUNT HOLE 4 TYPE | Slotted |
| MOUNTING EAR THICKNESS | 2.756″ |
| MOUNTING EAR THICKNESS | 70mm |
| MOUNTING EAR 2 THICKNESS | 2.756″ |
| MOUNTING EAR 2 THICKNESS | 70mm |
| MOUNTING EAR 3 THICKNESS | 2.756″ |
| MOUNTING EAR 3 THICKNESS | 70mm |
| MOUNTING EAR 4 THICKNESS | 2.756″ |
| MOUNTING EAR 4 THICKNESS | 70mm |
| FAN LOCATION | Internal |
| REGULATOR LOCATION | Internal |
| TERMINAL ID 2 | B+ |
| TERMINAL 2 SIZE | M8x1.25 |
| TERMINAL ID 3 | COM |
| TERMINAL 3 SIZE | Spade |
| TERMINAL ID 4 | N/C |
| TERMINAL 4 SIZE | Spade |
| POLARITY | Negative |
| NUMBER OF GROOVES | 6 |
| GROOVE OD | 1.972″ |
| GROOVE OD | 50.100mm |
| PULLEY TYPE | Solid |
| PULLEY OUTER DIAMETER | 2.161″ |
| PULLEY OUTER DIAMETER | 54.900mm |
Part Number & Interchanges
| Manufacturer Part # | Manufacturer Name |
| ABO0407 | ARROWHEAD |
| VBO0407 | ARROWHEAD (OEM) |
| 400-24225 | J & N |
| 400-24225 | J amp; N |
| 11305 | LESTER |
| 11305 | BBB |
| 11305 | BBB NEW |
| 0-121-813-001 | BOSCH |
| 0-121-813-101 | BOSCH |
| 68011843AD | CHRYSLER |
| 68011843AC | CHRYSLER |
| 68011843AA | CHRYSLER |
| A-6566 | DIXIE |
| 10926 | EXCEL |
| LRA03135 | LUCAS ELECTRICAL EUROPE |
| 013-154-05-02 | MERCEDES BENZ |
| 12939 | REMY LIGHT DUTY |
| A3307 | USA INDUSTRIES |
| 90-15-6582 | WILSON |
| 90-15-6582 | WILSON NEW |
| 12939 | WORLDWIDE |
Part fit
| Year | Make | Model | Engine |
|---|---|---|---|
| Year | Make | Model | Engine |
| 2007 - 2008 | DODGE | SPRINTER 2500 | 3.5L(213) V6 |
| 2007 - 2008 | FREIGHTLINER | SPRINTER VAN | 3.5L(213) V6 |
| 2007 - 2008 | MERCEDES BENZ | CL550 | 5.5L V8 |
| 2007 - 2009 | MERCEDES BENZ | S CLASS | 5.5L |
| 2007 - 2009 | MERCEDES BENZ | S550 | 5.5L |
