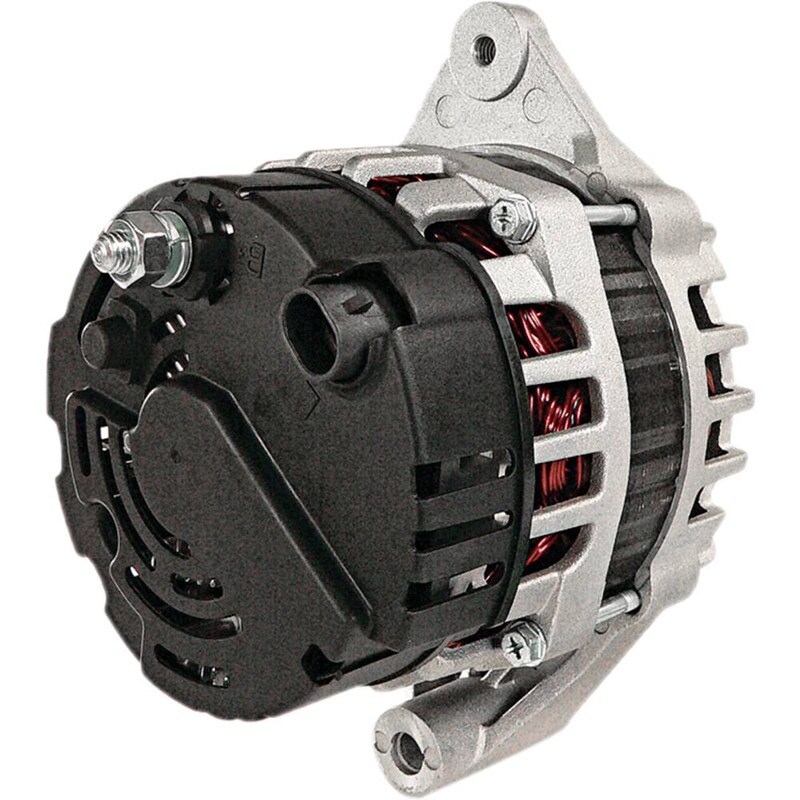

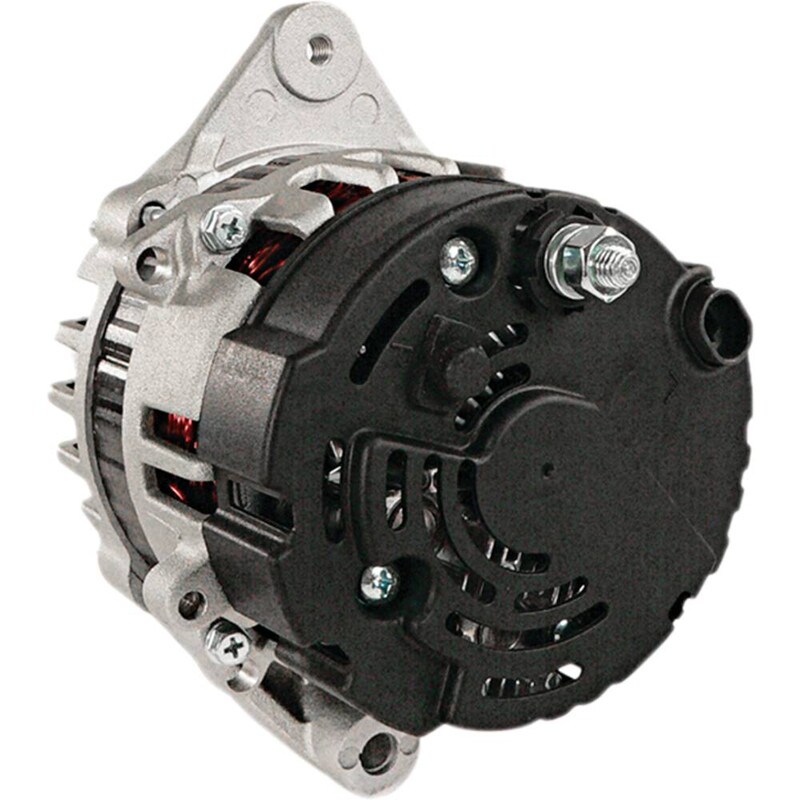

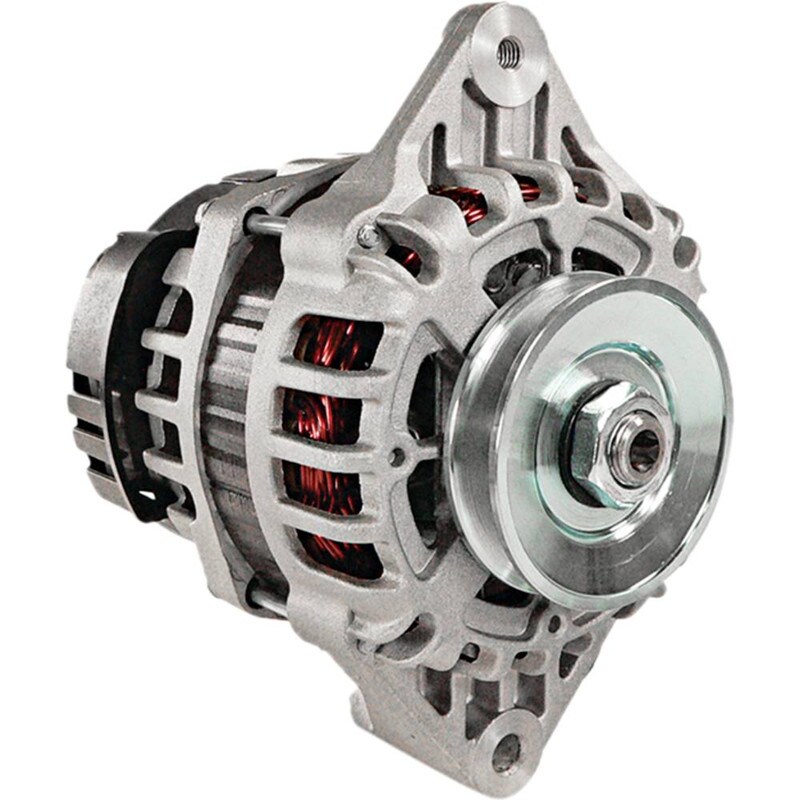

NEW Alternator for Engines – Marine Applications; 400-40116, 2656299, 425299, A0002655299, 3862612; Lester 12672
$249.99
Specifications
| UNIT TYPE | Alternator |
| Volt | 12 |
| Amps | 65 |
| Regulator Clock | 2:00 |
| Rotation Direction | Clockwise |
| Mount Hole ID 1 | 5/16-18 |
| Mount Hole 1 Type | Threaded |
| Mount Hole 2 Type | Unthreaded |
| Mounting Ear Thickness | 0.449″ |
| Mounting Ear Thickness | 11.400mm |
| Mounting Ear 2 Thickness | 1.996″ |
| Mounting Ear 2 Thickness | 50.700mm |
| Fan Location | Internal |
| Regulator Location | Internal |
| Terminal ID 2 | B+ |
| Terminal 2 Size | M8x1.25 |
| Terminal ID 3 | S |
| Terminal 3 Size | Spade |
| Terminal ID 4 | L |
| Terminal 4 Size | Spade |
| Polarity | Negative |
| Number of Grooves | 1 |
| Pulley Type | Solid |
| Pulley Outer Diameter | 2.862″ |
| Pulley Outer Diameter | 72.700mm |
| Warranty | 1 Year |
