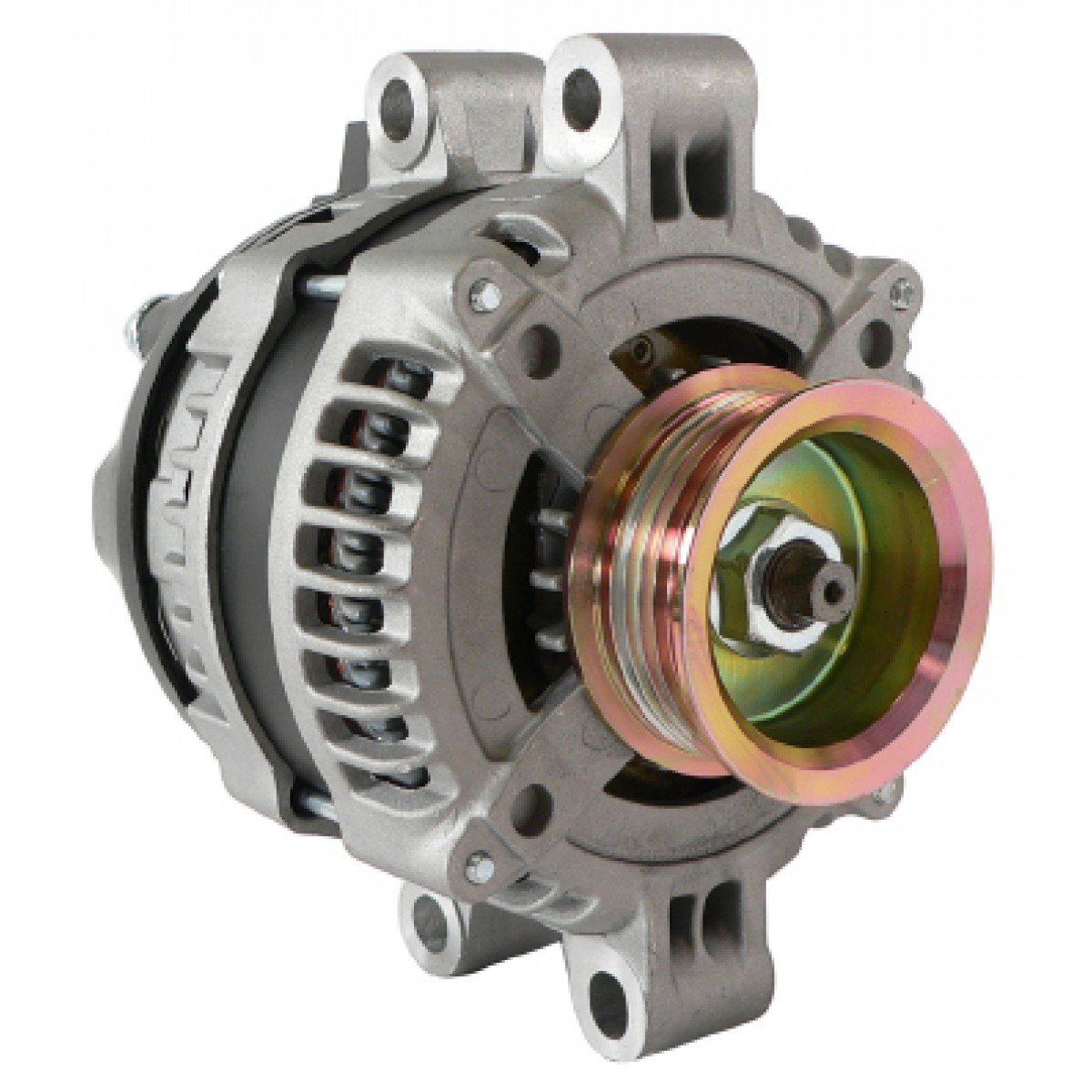

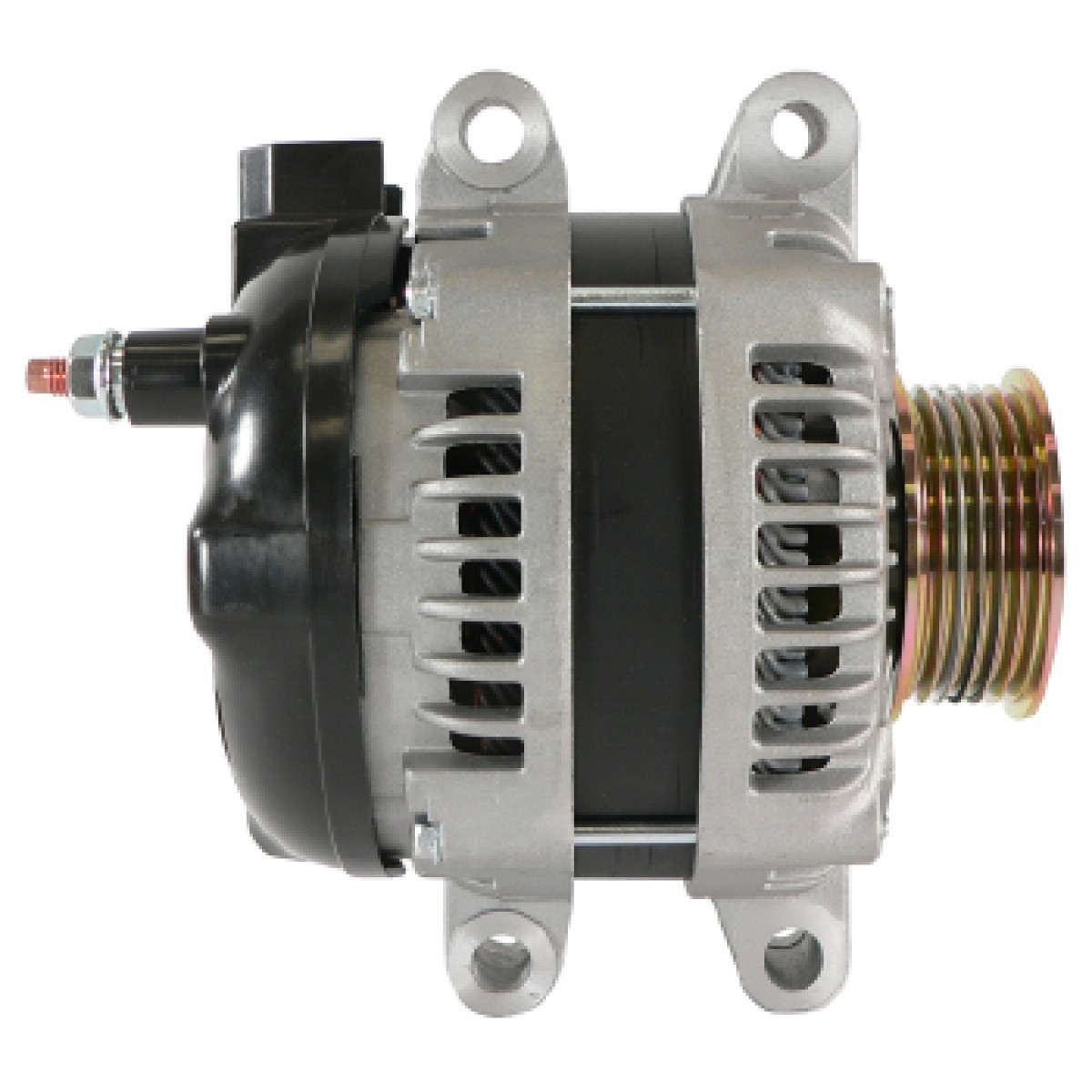

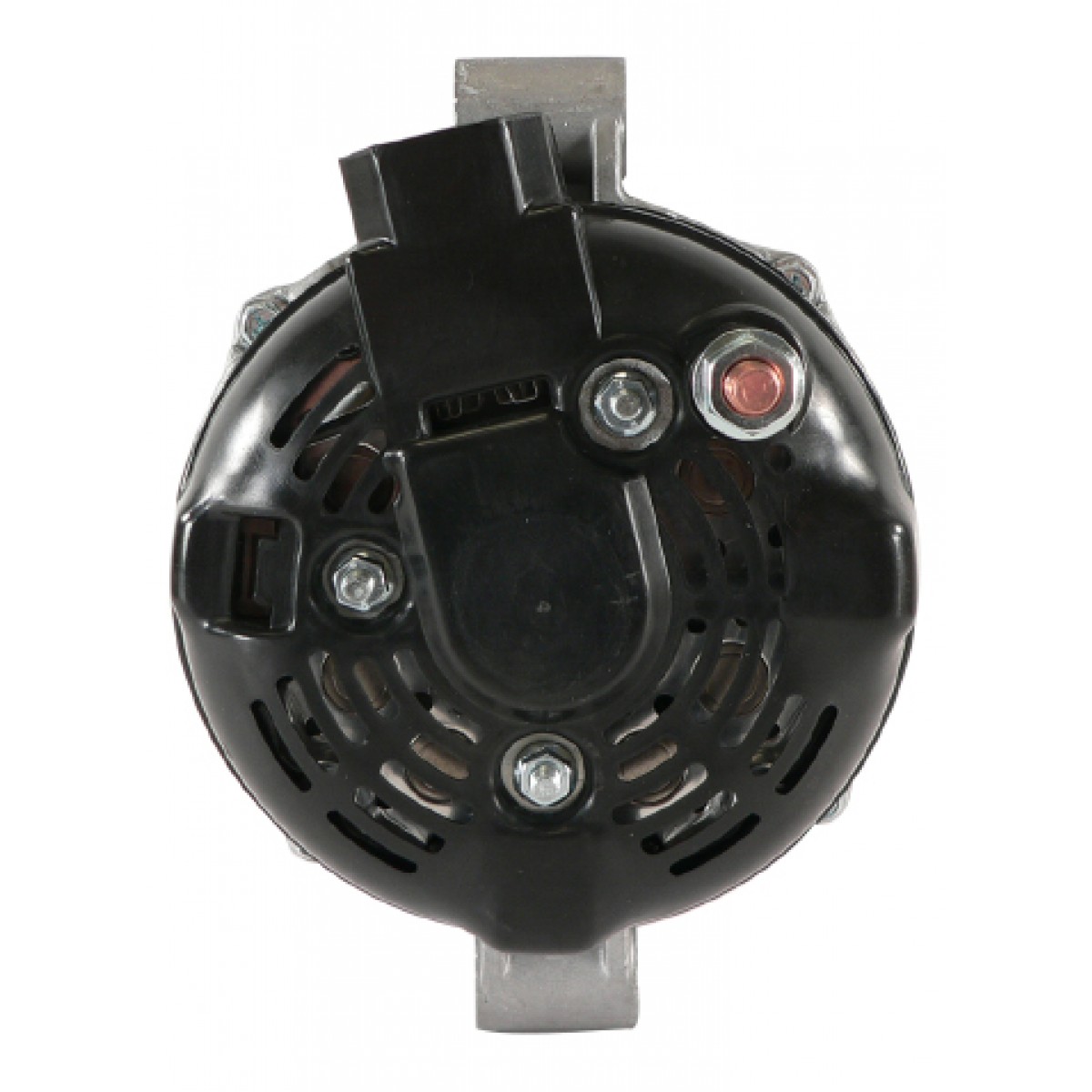

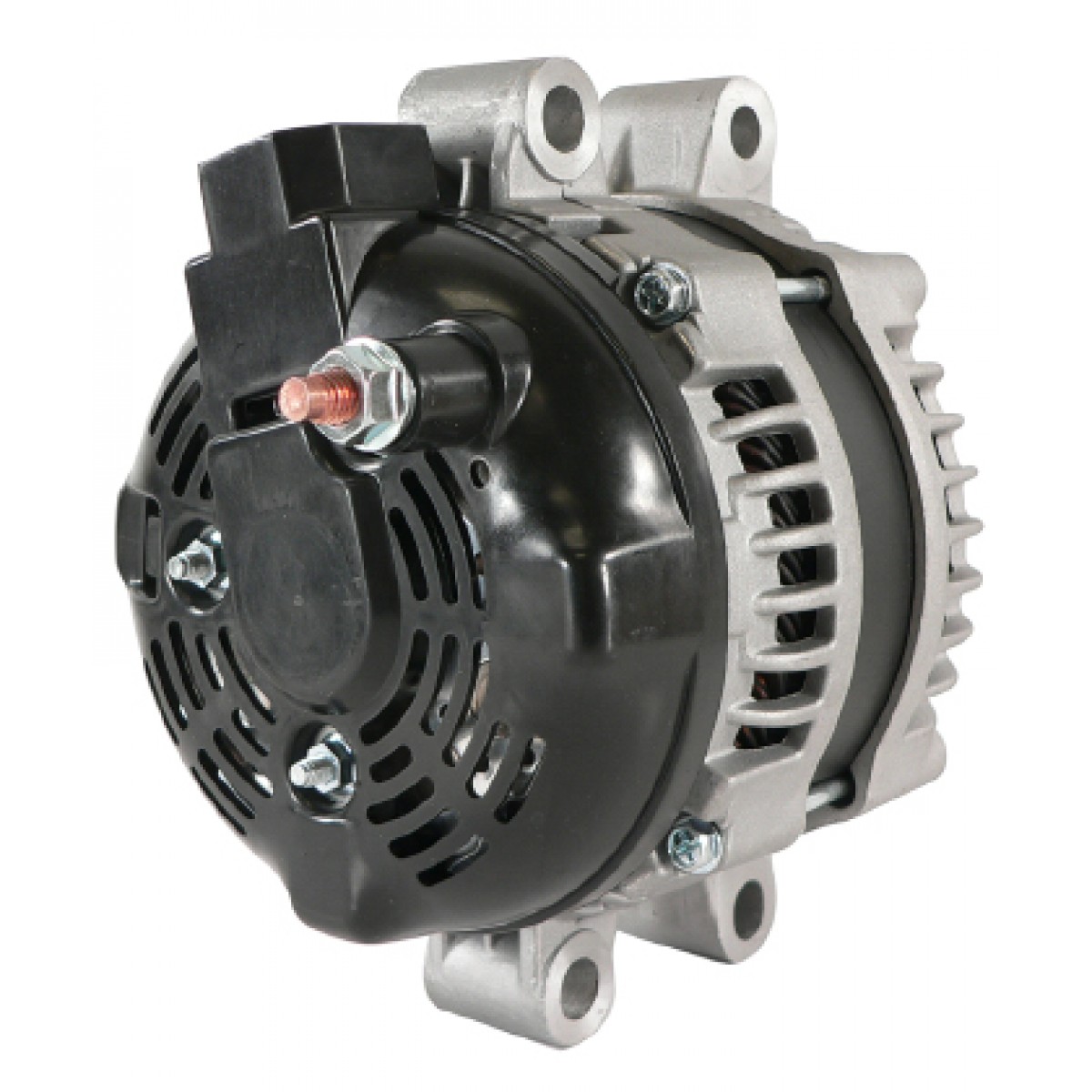

NEW Alternator for BUICK, CHEVROLET & PONTIAC 5.3L Applications; AND0319, 104210-422, 210-0573,15139480; LESTER 11179
$254.99
Specifications
UNIT TYPE |
Alternator |
FAMILY |
Denso SC (Hairpin) |
VOLT |
12 |
AMPS |
135 |
REGULATOR CLOCK |
11:30 |
ROTATION DIRECTION |
Clockwise |
MOUNT HOLE ID 1 |
10.100mm |
MOUNT HOLE 1 TYPE |
Unthreaded |
MOUNT HOLE 2 TYPE |
Slotted |
MOUNT HOLE ID 3 |
11.600mm |
MOUNT HOLE 3 TYPE |
Unthreaded |
MOUNT HOLE ID 4 |
11.600mm |
MOUNT HOLE 4 TYPE |
Unthreaded |
MOUNTING EAR THICKNESS |
1.181″ |
MOUNTING EAR THICKNESS |
30mm |
MOUNTING EAR 2 THICKNESS |
1.181″ |
MOUNTING EAR 2 THICKNESS |
30mm |
MOUNTING EAR 3 THICKNESS |
1.181″ |
MOUNTING EAR 3 THICKNESS |
30mm |
MOUNTING EAR 4 THICKNESS |
1.181″ |
MOUNTING EAR 4 THICKNESS |
30mm |
FAN LOCATION |
Internal |
REGULATOR LOCATION |
Internal |
TERMINAL ID 2 |
B+ |
TERMINAL 2 SIZE |
M8x1.25 |
TERMINAL ID 3 |
F |
TERMINAL 3 SIZE |
Spade |
TERMINAL ID 4 |
L |
TERMINAL 4 SIZE |
Spade |
POLARITY |
Negative |
NUMBER OF GROOVES |
6 |
PULLEY TYPE |
Solid |
PULLEY OUTER DIAMETER |
2.717″ |
PULLEY OUTER DIAMETER |
69mm |
WARRANTY |
1 Year |
Part Number & Interchanges
Manufacturer Name |
Manufacturer Part # |
ARROWHEAD |
AND0319, VND0319 |
BOSCH |
AL8835X |
DELCO |
15139480 |
DENSO |
104210-4220, 210-0573 |
GENERAL MOTORS |
15139480 |
J&N |
400-52122, 400-52574, 400-52574R |
LESTER |
11179 |
Part fit
Year |
Make |
Model |
Engine |
Year |
Make |
Model |
Engine |
2005 - 2008 |
PONTIAC |
GRAND PRIX |
5.3L(325) V8 |
2006 - 2007 |
CHEVROLET |
MONTE CARLO |
5.3L(325) V8 |
2006 - 2009 |
CHEVROLET |
IMPALA |
5.3L(325) V8 |
2008 - 2009 |
BUICK |
ALLURE |
5.3L(325) V8 |
