NEW Regulator / Rectifier for ARCTIC CAT 400 2×4, 400 4×4 & 500 4×4 ATVs; 230-22220, 0530-006, 0530-137, SH678LB
$174.37

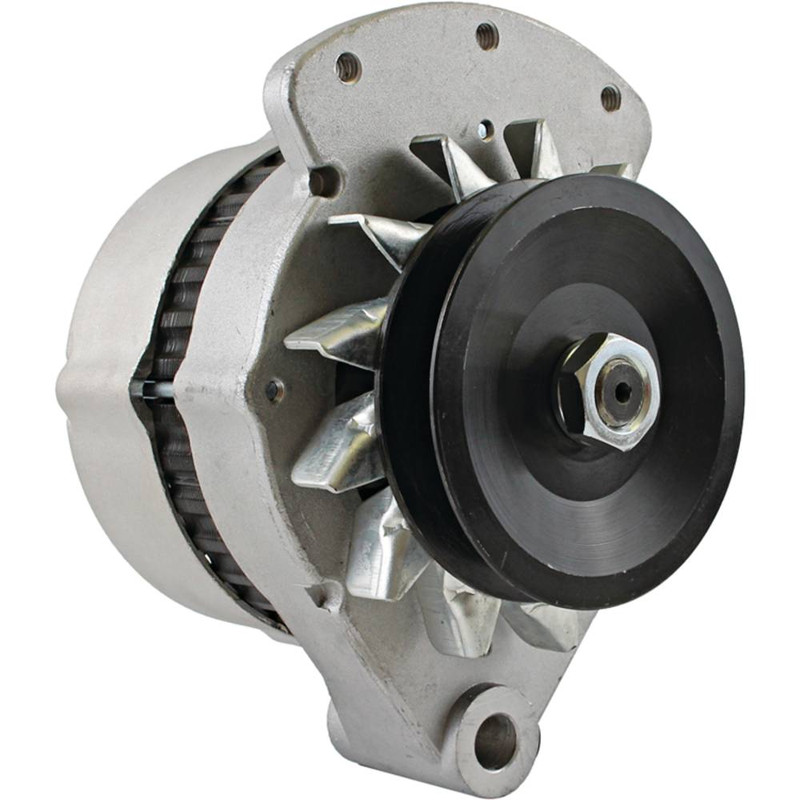

Specifications
| UNIT TYPE | Alternator |
| FAMILY | Leece Neville 8AL/8AR |
| VOLT | 12 |
| AMPS | 51 |
| REGULATOR CLOCK | 12:00 |
| ROTATION DIRECTION | Clockwise |
| MOUNT HOLE ID 1 | 5/16-18 |
| MOUNT HOLE 1 TYPE | Threaded |
| MOUNT HOLE ID 2 | 5/16-18 |
| MOUNT HOLE 2 TYPE | Threaded |
| MOUNT HOLE ID 3 | 5/16-18 |
| MOUNT HOLE 3 TYPE | Threaded |
| MOUNT HOLE ID 4 | 13mm |
| MOUNT HOLE 4 TYPE | Unthreaded |
| MOUNTING EAR THICKNESS | 0.433″ |
| MOUNTING EAR THICKNESS | 11mm |
| MOUNTING EAR 2 THICKNESS | 0.433″ |
| MOUNTING EAR 2 THICKNESS | 11mm |
| MOUNTING EAR 3 THICKNESS | 0.433″ |
| MOUNTING EAR 3 THICKNESS | 11mm |
| MOUNTING EAR 4 THICKNESS | 2″ |
| MOUNTING EAR 4 THICKNESS | 50.800mm |
| FAN LOCATION | External |
| REGULATOR LOCATION | External |

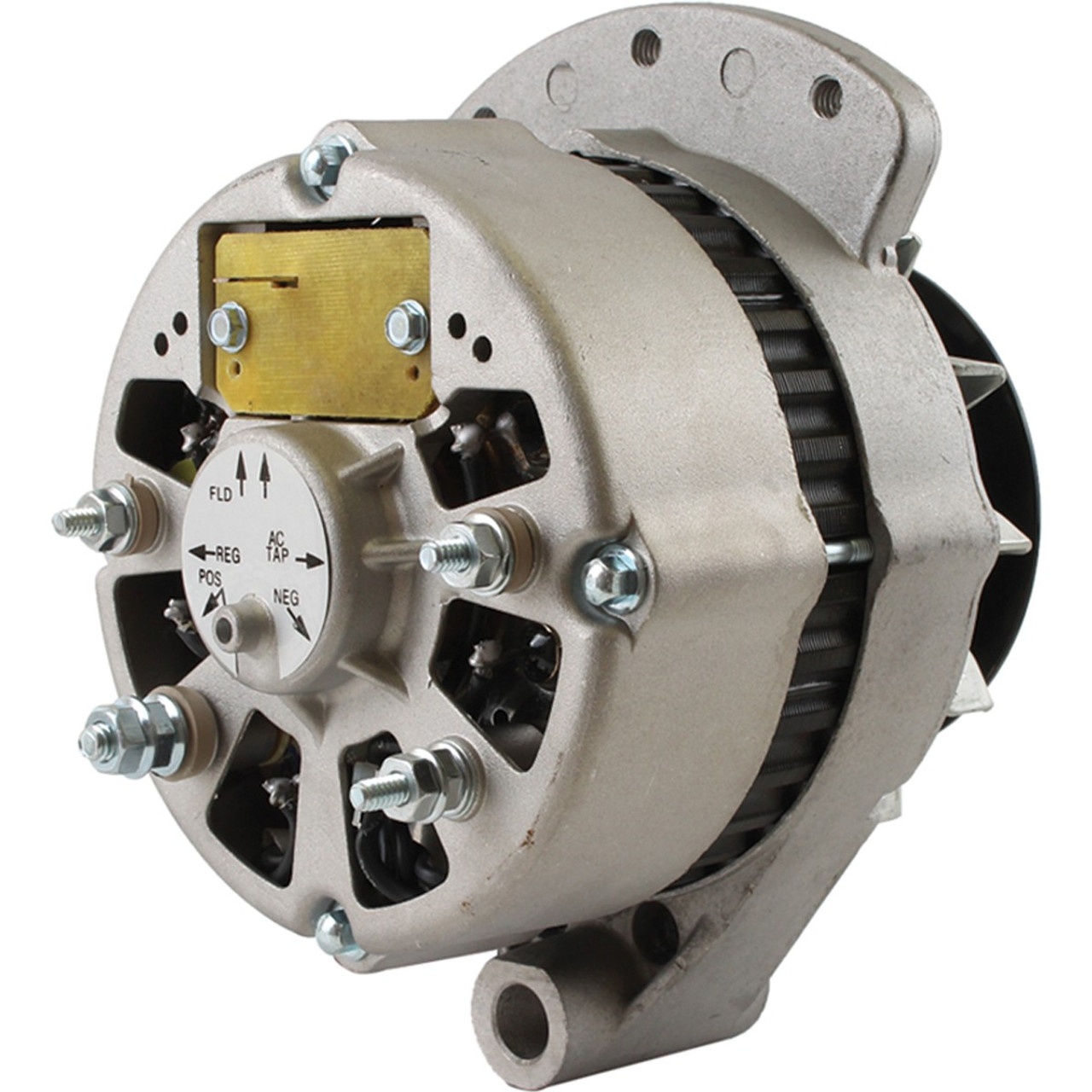

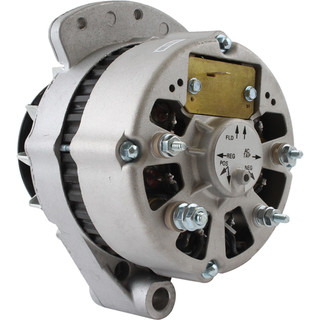

| TERMINAL ID 2 | B+ |
| TERMINAL 2 SIZE | 1/4-20 |
| TERMINAL ID 3 | D+ |
| TERMINAL 3 SIZE | 10-24 |
| TERMINAL ID 4 | AC |
| TERMINAL 4 SIZE | 10-24 |
| TERMINAL ID 5 | B- |
| TERMINAL 5 SIZE | 10-24 |
| TERMINAL ID 6 | F |
| TERMINAL 6 SIZE | Spade |
| POLARITY | Negative |
| NUMBER OF GROOVES | 1 |
| PULLEY TYPE | Solid |
| PULLEY OUTER DIAMETER | 3.823″ |
| PULLEY OUTER DIAMETER | 97.100mm |
