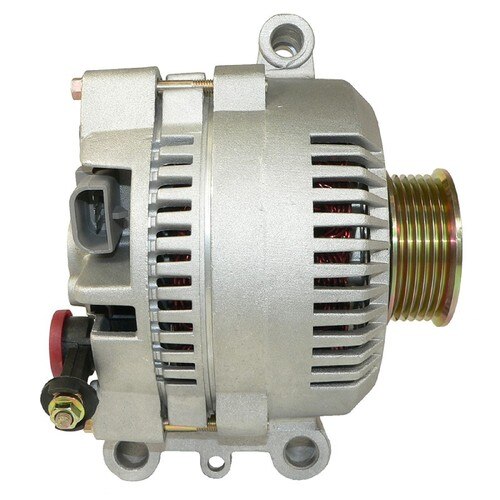

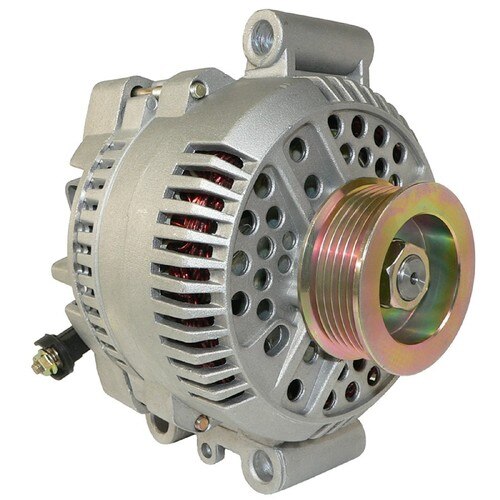

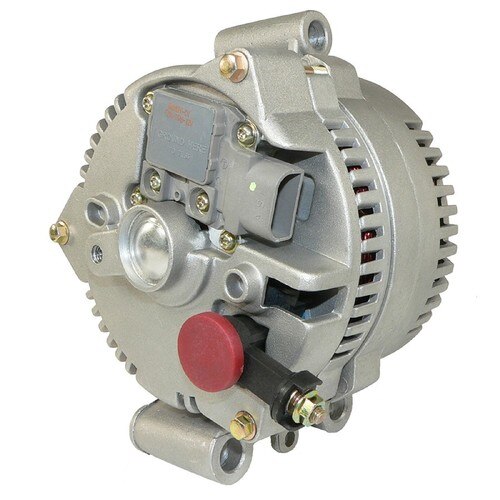

June 17, 2020NEW Alternator for FORD RANGER & MAZDA B4000 2006 Applications; 400-14082, 4L2T10300DB, 4L2T-10300-DB, 4L2T10300DD, 4L2T-10300-DD, 1F72-18-300A; LESTER 8446
$179.99
SEARCH: 493517 (USES LATER REGULATOR)
Specifications
UNIT TYPE | Alternator |
CRITICAL NOTE | Early Regulator Circuitry @400-14101 Has Fast Switching Regulator Circuitry |
FAMILY | Ford 3G |
VOLT | 12 |
AMPS | 130 |
REGULATOR CLOCK | 1:00 |
MOUNT HOLE ID 1 | 10mm |
MOUNT HOLE 1 TYPE | Unthreaded |
MOUNT HOLE 2 TYPE | Unthreaded |
MOUNT HOLE ID 3 | 10mm |
MOUNT HOLE 3 TYPE | Unthreaded |
MOUNTING EAR THICKNESS | 2.193″ |
MOUNTING EAR THICKNESS | 55.700mm |
MOUNTING EAR 2 THICKNESS | 2.193″ |
MOUNTING EAR 2 THICKNESS | 55.700mm |
MOUNTING EAR 3 THICKNESS | 2.193″ |
MOUNTING EAR 3 THICKNESS | 55.700mm |
FAN LOCATION | Internal |
REGULATOR LOCATION | Internal |
TERMINAL ID 2 | B+ |
TERMINAL 2 SIZE | M8x1.25 |
TERMINAL ID 3 | A |
TERMINAL 3 SIZE | Spade |
TERMINAL ID 4 | S |
TERMINAL 4 SIZE | Spade |
TERMINAL ID 5 | I |
TERMINAL 5 SIZE | Spade |
TERMINAL ID 6 | Stator |
TERMINAL 6 SIZE | Spade |
POLARITY | Negative |
NUMBER OF GROOVES | 6 |
PULLEY TYPE | Solid |
PULLEY OUTER DIAMETER | 2.386″ |
PULLEY OUTER DIAMETER | 60.600mm |
WARRANTY | 1 Year |
Part Number & Interchanges
Manufacturer Name | Manufacturer Part # |
ARROWHEAD | AFD0118 |
BOSCH | AL7637X |
FORD | 4L2T10300DB, 4L2T-10300-DB, 4L2T10300DD, 4L2T-10300-DD, 4L2T-DB, 4L2T-DD, 4L2Z10346DA, 4L2Z-10346-DA, GL600 |
J&N ELECTRICAL PRODUCTS | 400-14082 |
LESTER | 8446 |
MAZDA | 1F72-18-300A |
Part fit
Year | Make | Model | Engine |
---|---|---|---|
Year | Make | Model | Engine |
2006 | FORD | RANGER | 4.0L(245) V6 |
2006 | MAZDA | B4000 | 4.0L |
