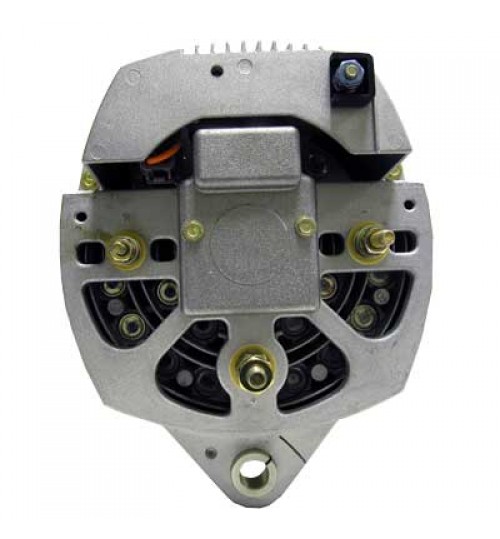

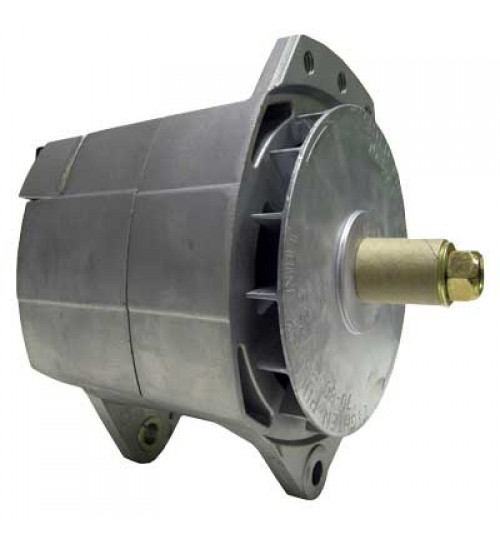

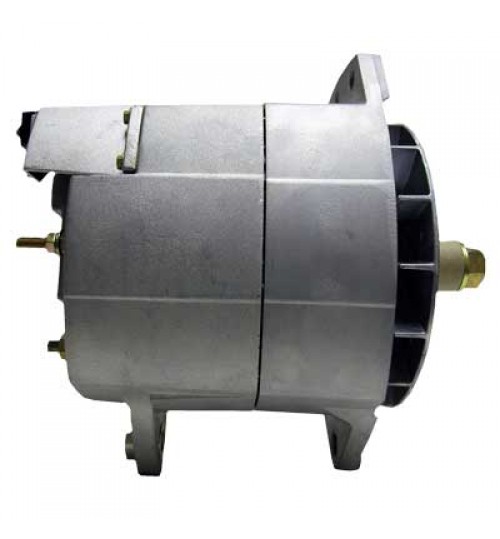

NEW Alternator for High Amp MARINE Applications; 400-16037, 849748-9, 110-184, 110-258, 110-258A, 8SC3005V, 8SC3009Z, 8SC3009ZA, 8SC3009ZAC, 8SC3157V; LESTER 8422
$599.99
ADDL INFO: 105-229 REGULATOR
Specifications
| UNIT TYPE | Alternator |
| FAMILY | Leece Neville 8SC/SCJ |
| VOLT | 24 |
| AMPS | 175 |
| REGULATOR CLOCK | 12:00 |
| ROTATION DIRECTION | Clockwise |
| MOUNT HOLE ID 1 | 1/2-13 |
| MOUNT HOLE 1 TYPE | Threaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| MOUNT HOLE ID 3 | 12.900mm |
| MOUNT HOLE 3 TYPE | Unthreaded |
| MOUNTING EAR THICKNESS | 0.543″ |
| MOUNTING EAR THICKNESS | 13.800mm |
| MOUNTING EAR 2 THICKNESS | 0.543″ |
| MOUNTING EAR 2 THICKNESS | 13.800mm |
| MOUNTING EAR 3 THICKNESS | 0.799″ |
| MOUNTING EAR 3 THICKNESS | 20.300mm |
| FAN LOCATION | External |
| REGULATOR LOCATION | Internal |
| TERMINAL ID 2 | B+ |
| TERMINAL 2 SIZE | 5/16 |
| TERMINAL ID 3 | L |
| TERMINAL 3 SIZE | 10-24 |
| TERMINAL ID 4 | IG |
| TERMINAL 4 SIZE | M5x0.8 |
| TERMINAL ID 5 | B- |
| TERMINAL 5 SIZE | 1/4-28 |
| POLARITY | Negative |
| SHAFT PULLEY OD | 0.875″ |
| SHAFT PULLEY OD | 22.220mm |
| SHAFT | 5/8-18 |
| Short Description | (3) 1/2-13 Threaded Positions in Upper Mounting Ear, Includes Fan |
