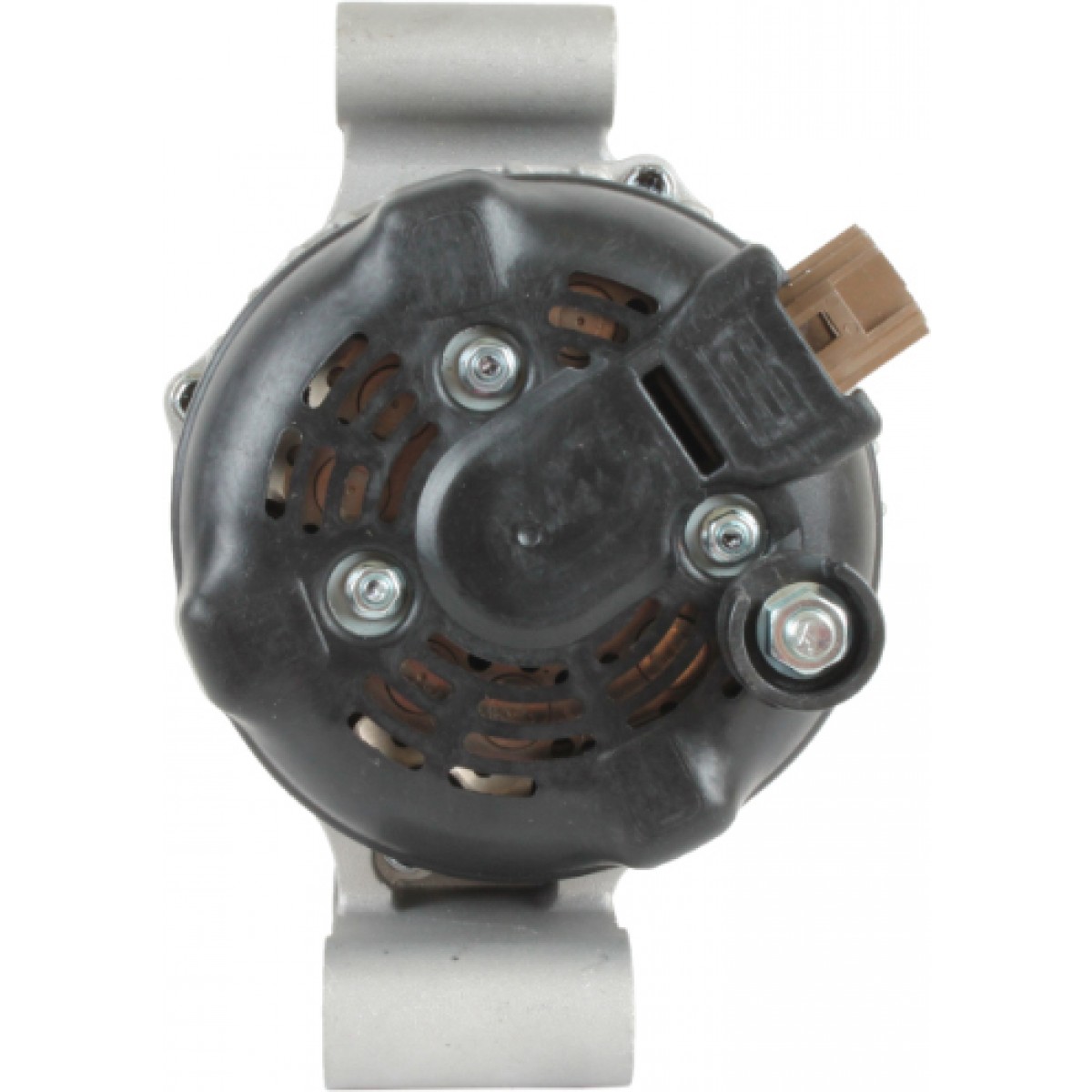

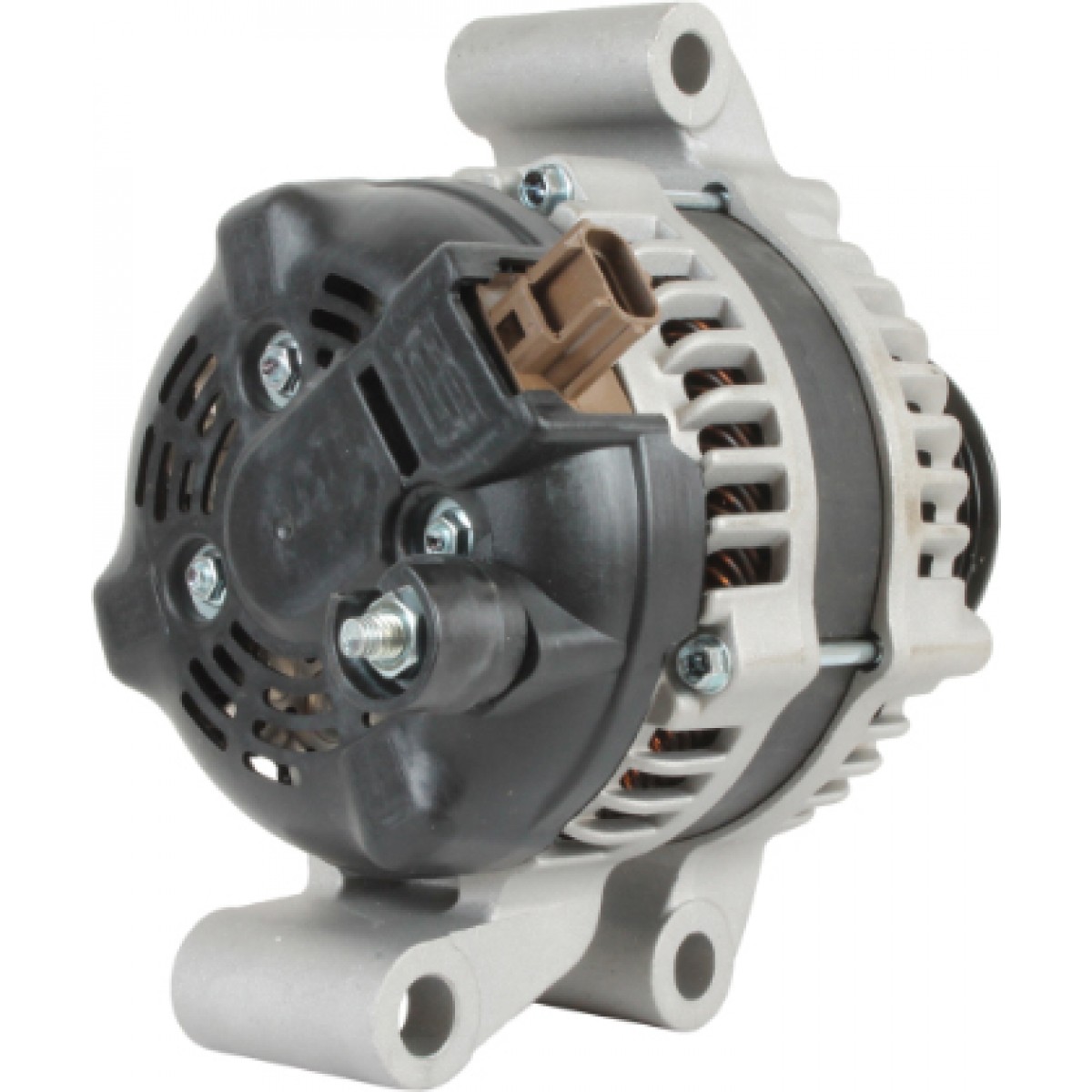

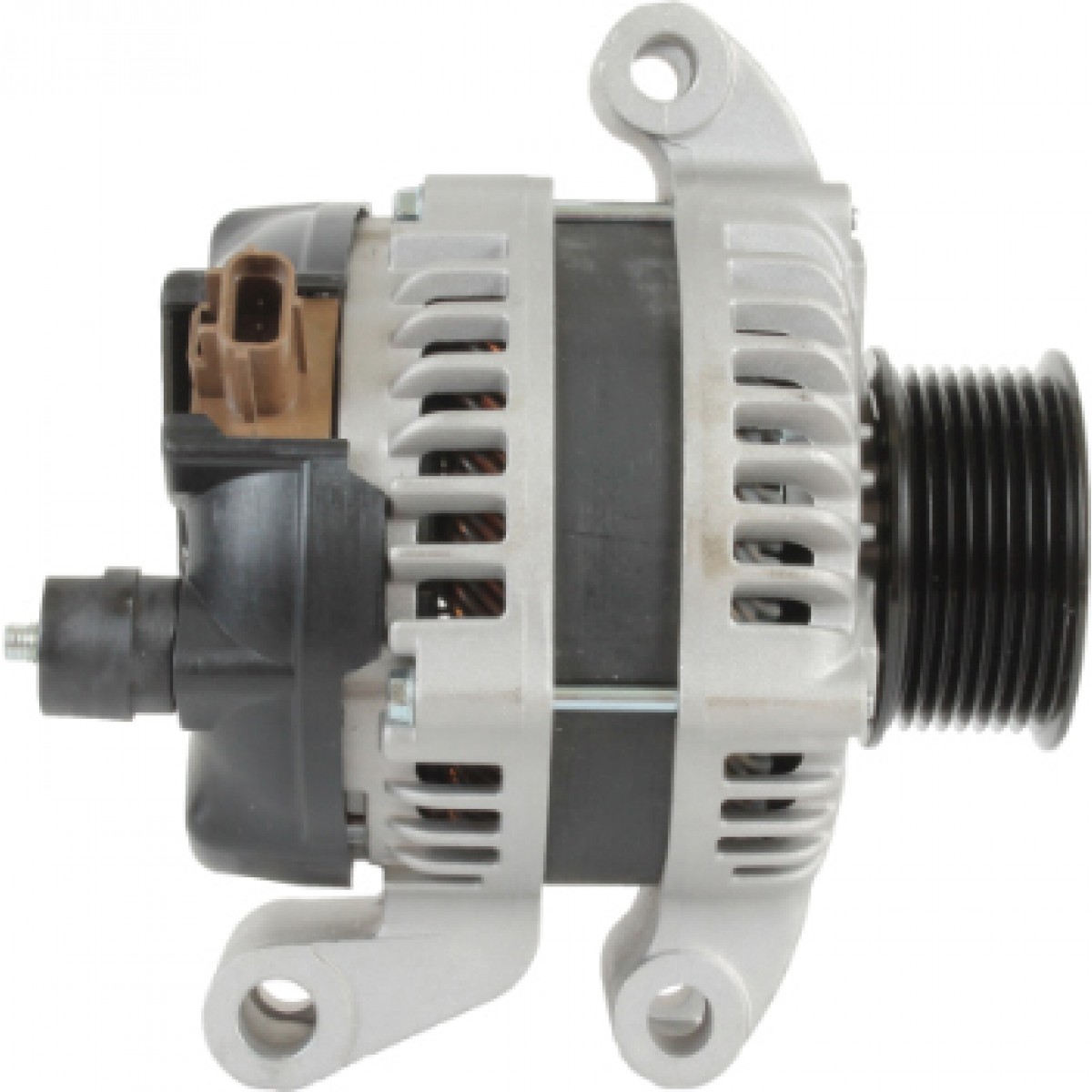

NEW Alternator for FORD Truck Applications; AND0457, 104210-5430, 104210-5431, 104210-5432, 104210-5433, 210-0643, 7C3T-10300-FB, 7C3T-FB, 7C3Z-10346-A; LESTER 11291
NEW Alternator for FORD Truck Applications; AND0457, 104210-5430, 104210-5431, 104210-5432, 104210-5433, 210-0643, 7C3T-10300-FB, 7C3T-FB, 7C3Z-10346-A; LESTER 11291 - Image 2
NEW Alternator for FORD Truck Applications; AND0457, 104210-5430, 104210-5431, 104210-5432, 104210-5433, 210-0643, 7C3T-10300-FB, 7C3T-FB, 7C3Z-10346-A; LESTER 11291 - Image 3
NEW Alternator for FORD Truck Applications; AND0457, 104210-5430, 104210-5431, 104210-5432, 104210-5433, 210-0643, 7C3T-10300-FB, 7C3T-FB, 7C3Z-10346-A; LESTER 11291 - Image 4

NEW Alternator for FORD Truck Applications; AND0457, 104210-5430, 104210-5431, 104210-5432, 104210-5433, 210-0643, 7C3T-10300-FB, 7C3T-FB, 7C3Z-10346-A; LESTER 11291

$254.99

Email
Categories: , ,

Specifications

UNIT TYPE Alternator
FAMILY Denso SC (Hairpin)
VOLT 12
AMPS 110
REGULATOR CLOCK 2:00
ROTATION DIRECTION Clockwise
MOUNT HOLE ID 1 10.300mm
MOUNT HOLE 1 TYPE Unthreaded
MOUNT HOLE 2 TYPE Unthreaded
MOUNT HOLE ID 3 12.900mm
MOUNT HOLE 3 TYPE Unthreaded
MOUNTING EAR THICKNESS 2.165″
MOUNTING EAR THICKNESS 55mm
MOUNTING EAR 2 THICKNESS 2.165″
MOUNTING EAR 2 THICKNESS 55mm
MOUNTING EAR 3 THICKNESS 2.165″
MOUNTING EAR 3 THICKNESS 55mm
FAN LOCATION Internal
REGULATOR LOCATION Internal
TERMINAL ID 2 B+
TERMINAL 2 SIZE M8x1.25
TERMINAL ID 3 AS
TERMINAL 3 SIZE 1.7mm spade
TERMINAL ID 4 RC
TERMINAL 4 SIZE 1.7mm Spade
TERMINAL ID 5 LI
TERMINAL 5 SIZE 1.7mm Spade
POLARITY Negative
NUMBER OF GROOVES 8
PULLEY TYPE Solid
PULLEY OUTER DIAMETER 2.748″
PULLEY OUTER DIAMETER 69.800mm



WRITE YOUR OWN REVIEW

We appreciate your feedback about our parts, services experience or anything which may help us to serve you better.
[testimonial_view id=”1″]

Part Number & Interchanges

Manufacturer Name Manufacturer Part #
ARROWHEAD AND0457, VND0457
BOSCH AL7668X
DENSO 104210-5430, 104210-5431, 104210-5432, 104210-5433, 210-0643
FORD 7C3T-10300-FB, 7C3T-FB, 7C3Z-10346-A
J&N ELECTRICAL PRODUCTS 400-52253, 400-52253R
LESTER 11291

Part fit

Year Make Model Engine
Year Make Model Engine
2008 - 2010 FORD F-250 SUPER-DUTY 6.4L(391) V8 (Diesel)
2008 - 2010 FORD F-450 Super-Duty Ford 6.4L(391) V8 Dsl
2008 - 2010 FORD F-550 Super-Duty Ford 6.4L(391) V8 Dsl
