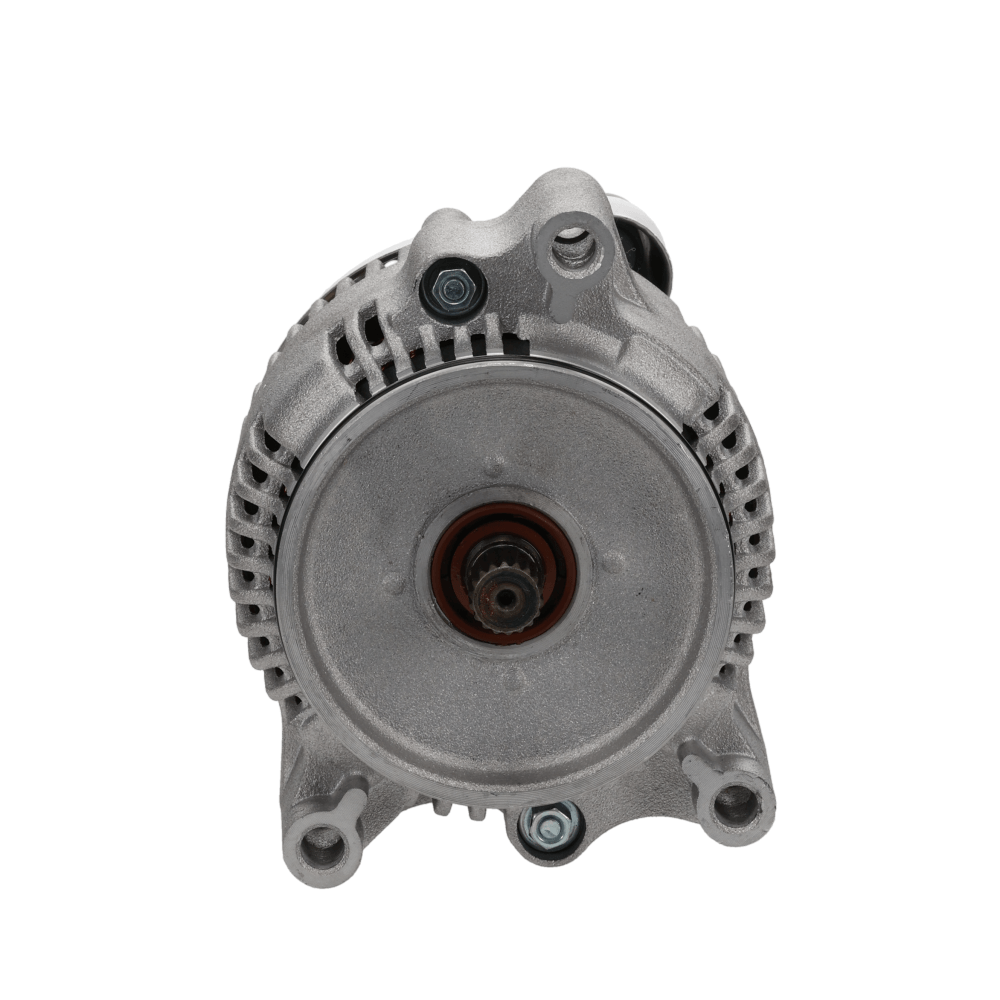

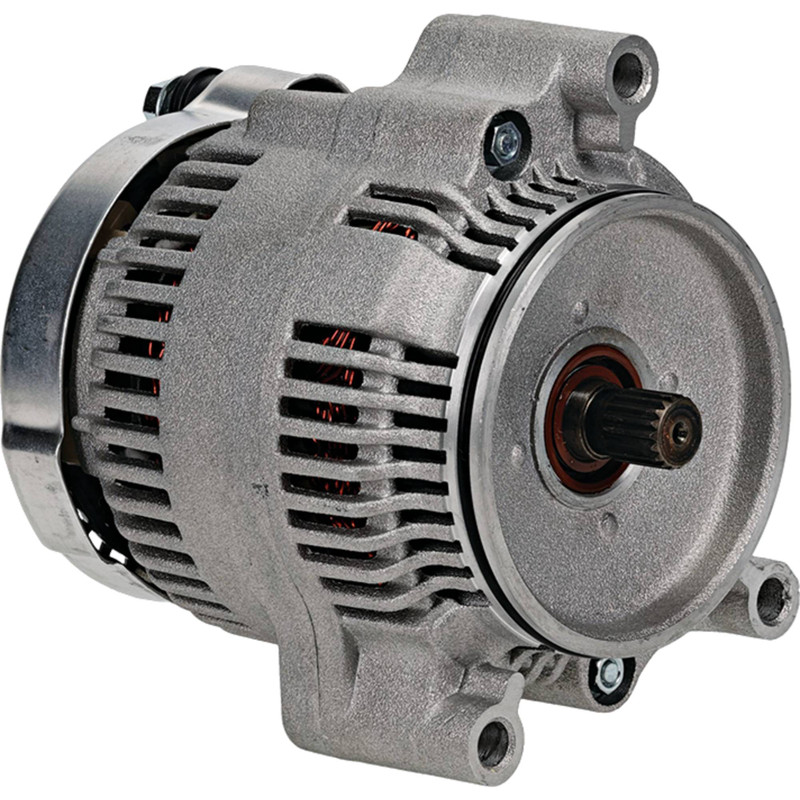

NEW Alternator for HONDA ST 1100 & ST 1100 ABS Motorcycles; 400-52377, 31100MAJ-G41, 31100MAJ-G42, CGD38; LESTER 12505
$269.99
Specifications
| UNIT TYPE |
Alternator |
| VOLT |
12 |
| AMPS |
40 |
| MOUNT HOLE ID 1 |
8.400mm |
| MOUNT HOLE 1 TYPE |
Unthreaded |
| MOUNT HOLE 2 TYPE |
Unthreaded |
| MOUNT HOLE ID 3 |
8.400mm |
| MOUNT HOLE 3 TYPE |
Unthreaded |
| MOUNTING EAR THICKNESS |
1.925″ |
| MOUNTING EAR THICKNESS |
48.900mm |
| MOUNTING EAR 2 THICKNESS |
1.925″ |
| MOUNTING EAR 2 THICKNESS |
48.900mm |
| MOUNTING EAR 3 THICKNESS |
1.925″ |
| MOUNTING EAR 3 THICKNESS |
48.900mm |
| FAN LOCATION |
Internal |
| REGULATOR LOCATION |
Internal |

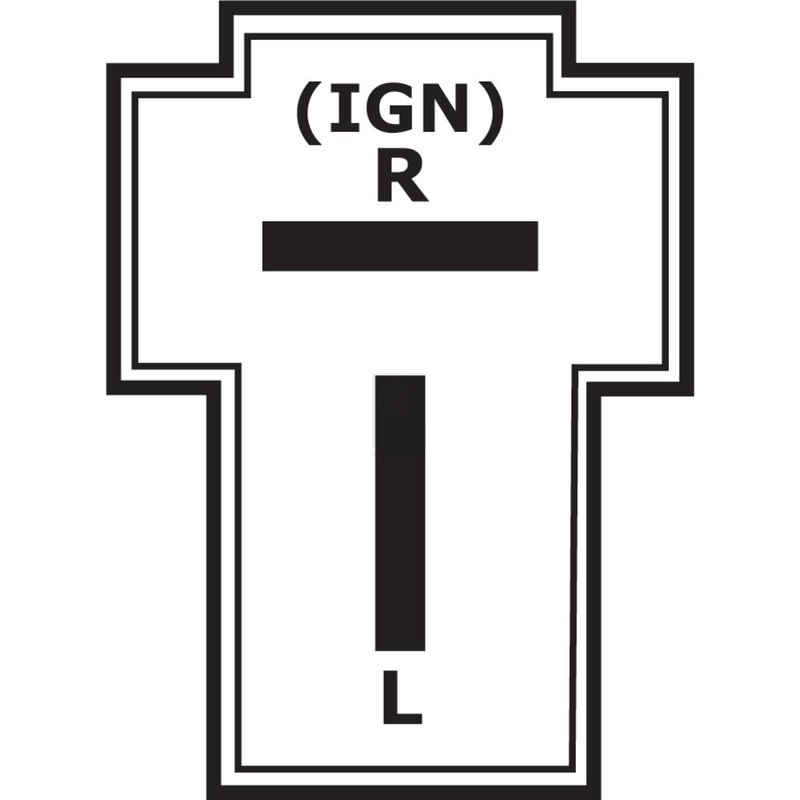

| TERMINAL ID 2 |
B+ |
| TERMINAL 2 SIZE |
M6x1.00 |
| TERMINAL ID 3 |
IGN |
| TERMINAL 3 SIZE |
Spade |
| TERMINAL ID 4 |
L |
| TERMINAL 4 SIZE |
Spade |
| POLARITY |
Negative |
|
19 Spline 14.1mm OD Rotor Shaft |
Part Number & Interchanges
| Manufacturer Name |
Manufacturer Part # |
| ARROWHEAD |
AND0451 |
| DENSO |
101211-1570 |
| HONDA |
31100-MAJ-G41, 31100MAJ-G41, 31100-MAJ-G42, 31100MAJ-G42, CGD38 |
| J&N ELECTRICAL PRODUCTS |
400-52377 |
| LESTER |
12505 |
Applications
Part fit
| MAKE |
MODEL |
ENGINE |
YEAR |
| Honda |
ST 1100 ABS |
1084cc |
1996, 1997, 1998, 1999, 2000, 2001, 2002 |
| Honda |
ST 1100 |
1084cc |
1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003 |
