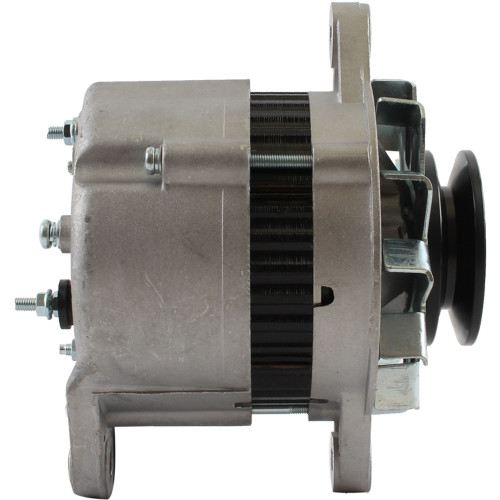

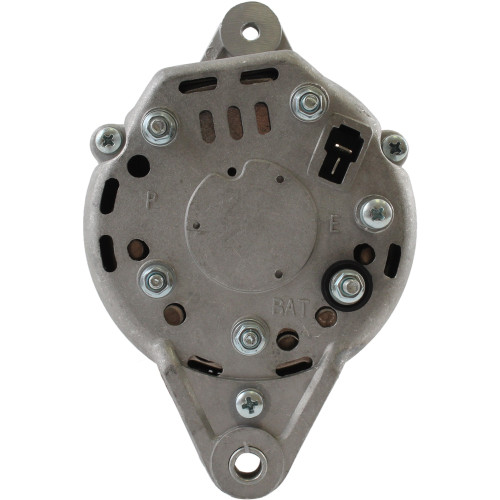

NEW Alternator for ISUZU Industrial Equipment & TCM EQUIPMENT Lift Trucks; 400-44057, 5812003300, 5812003350; LESTER 12114
$159.99
Specifications
| UNIT TYPE |
Alternator |
| VOLT |
24 |
| AMPS |
20 |
| REGULATOR CLOCK |
2:00 |
| MOUNT HOLE ID 1 |
M8x1.25 |
| MOUNT HOLE 1 TYPE |
Threaded |
| MOUNT HOLE 2 TYPE |
Unthreaded |
| MOUNT HOLE ID 3 |
8mm |
| MOUNT HOLE 3 TYPE |
Unthreaded |
| FAN LOCATION |
External |
| REGULATOR LOCATION |
Internal |
| TERMINAL ID 2 |
B+ |
| TERMINAL 2 SIZE |
M5x0.8 |
| POLARITY |
Negative |
| NUMBER OF GROOVES |
1 |
| PULLEY TYPE |
Solid |
| PULLEY OUTER DIAMETER |
2.835″ |
| PULLEY OUTER DIAMETER |
72mm |
| WARRANTY |
1 Year |
|
80mm Between Bottom Mounting Ears, 2-Blade Plug & Belt Width 11mm |
Part Number & Interchanges
| Manufacturer Name |
Manufacturer Part # |
| ARROWHEAD |
AHI0077, LR220-23, LR220-24 |
| HITACHI |
LR220-23, LR220-24 |
| ISUZU |
5812003300, 5812003350 |
| J&N ELECTRICAL PRODUCTS |
400-44057 |
| LESTER |
12114 |
| LUCAS ELECTRIC |
LRA02437 |
Applications
| MAKE |
MODEL |
ENGINE |
YEAR |
| Isuzu |
Misc. Industrial Equipment |
4JB1 Engine |
|
| Mitsubishi |
FD-10 |
|
|
| Mitsubishi |
FD-14 |
|
|
| Mitsubishi |
FD-15 |
|
|
| Mitsubishi |
FD-15T |
|
|
| Mitsubishi |
FDC-20-D |
Mitsubishi S4 |
|
| Mitsubishi |
FDC-25-D |
Mitsubishi S4 |
|
| TCM Equipment |
FD20Z |
Isuzu C240 Diesel |
|
| TCM Equipment |
FD23Z |
Isuzu C240 Diesel |
|
| TCM Equipment |
FD25Z |
Isuzu C240 Diesel |
|
| TCM Equipment |
FD30Z |
Isuzu C240 Diesel |
|
