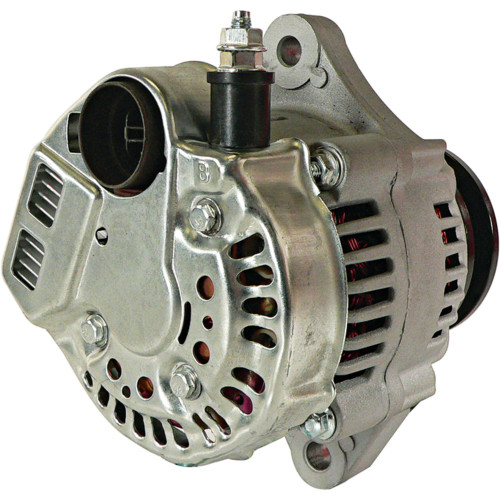

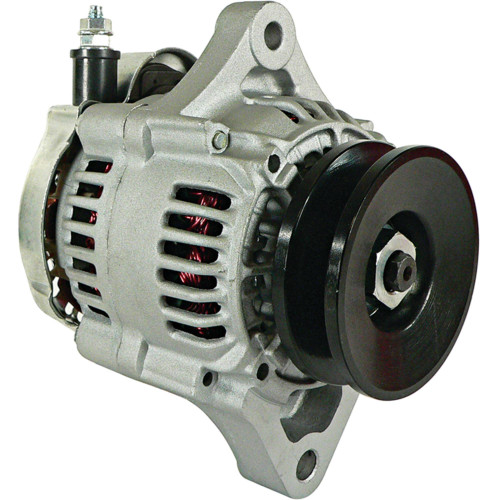

NEW Alternator for JOHN DEERE 27C ZTS, 35C ZTS & 50C ZTS Excavator – Compact; 400-52301, 8972251170, AT195649, 021080-0830, 101211-1240, 101211-1241, 101211-1242; LESTER 12653
$179.99
Specifications
| UNIT TYPE |
Alternator |
| VOLT |
12 |
| AMPS |
35 |
| REGULATOR CLOCK |
12:00 |
| ROTATION DIRECTION |
Clockwise |
| MOUNT HOLE ID 1 |
8.500mm |
| MOUNT HOLE 1 TYPE |
Unthreaded |
| MOUNT HOLE 2 TYPE |
Unthreaded |
| MOUNTING EAR THICKNESS |
0.606″ |
| MOUNTING EAR THICKNESS |
15.400mm |
| MOUNTING EAR 2 THICKNESS |
0.823″ |
| MOUNTING EAR 2 THICKNESS |
20.900mm |
| FAN LOCATION |
Internal |
| REGULATOR LOCATION |
Internal |

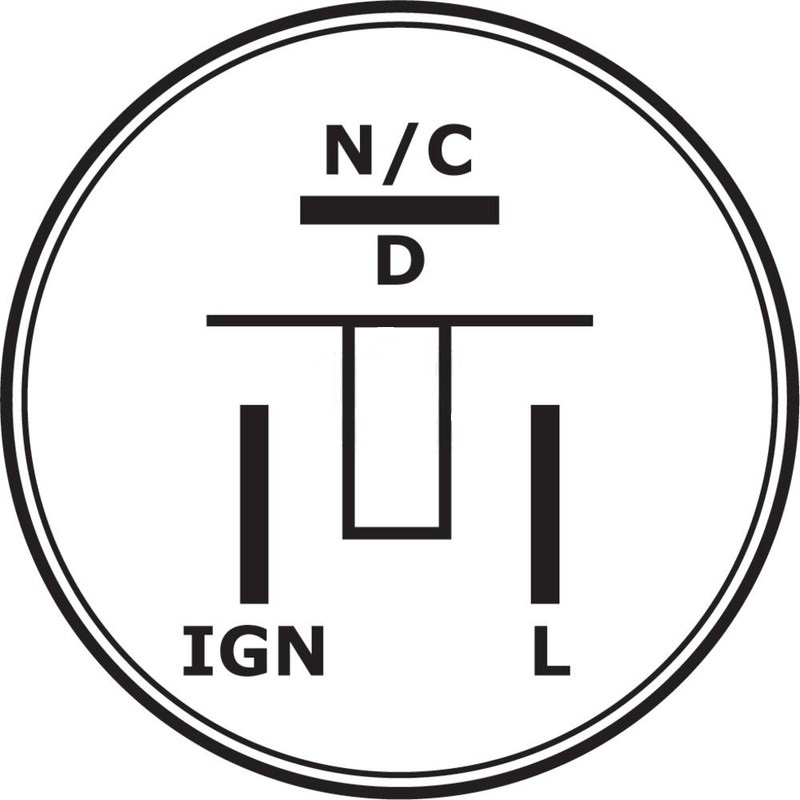

| TERMINAL ID 2 |
B+ |
| TERMINAL 2 SIZE |
M6x1.00 |
| TERMINAL ID 3 |
N/C |
| TERMINAL 3 SIZE |
Spade |
| TERMINAL ID 4 |
IG |
| TERMINAL 4 SIZE |
Spade |
| TERMINAL ID 5 |
L |
| TERMINAL 5 SIZE |
Spade |
| POLARITY |
Negative |
| NUMBER OF GROOVES |
1 |
| PULLEY TYPE |
Solid |
| PULLEY OUTER DIAMETER |
2.917″ |
| PULLEY OUTER DIAMETER |
74.100mm |
Part Number & Interchanges
| Manufacturer Name |
Manufacturer Part # |
| ARROWHEAD |
ND101211-1242 |
| DENSO |
021080-0830, 101211-1240, 101211-1241, 101211-1242 |
| ISUZU |
8972251170, 8-97225117-0 |
| JOHN DEERE |
8972251170, AT195649 |
| LESTER |
12653 |
| LUCAS ELECTRIC |
LRA01910 |
Applications
| MAKE |
MODEL |
ENGINE |
YEAR |
| Isuzu |
3LB1 |
|
|
| John Deere |
27C ZTS |
3LD |
|
| John Deere |
27ZTS |
Isuzu 3LD |
|
| John Deere |
35C ZTS |
|
|
| John Deere |
35ZTS |
|
|
| John Deere |
50 ZTS |
|
|
| John Deere |
50C ZTS |
|
|
