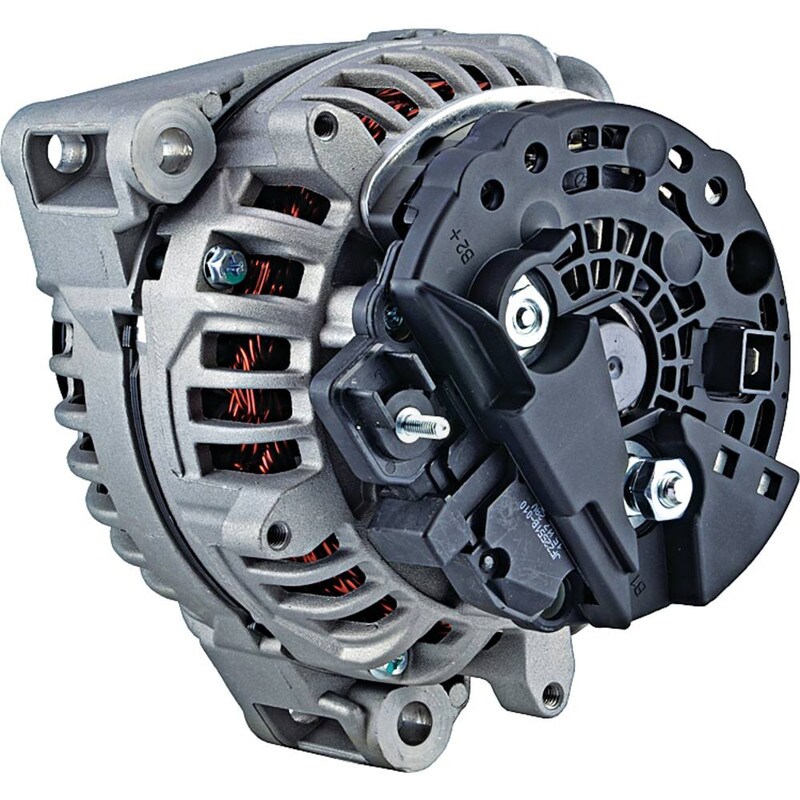

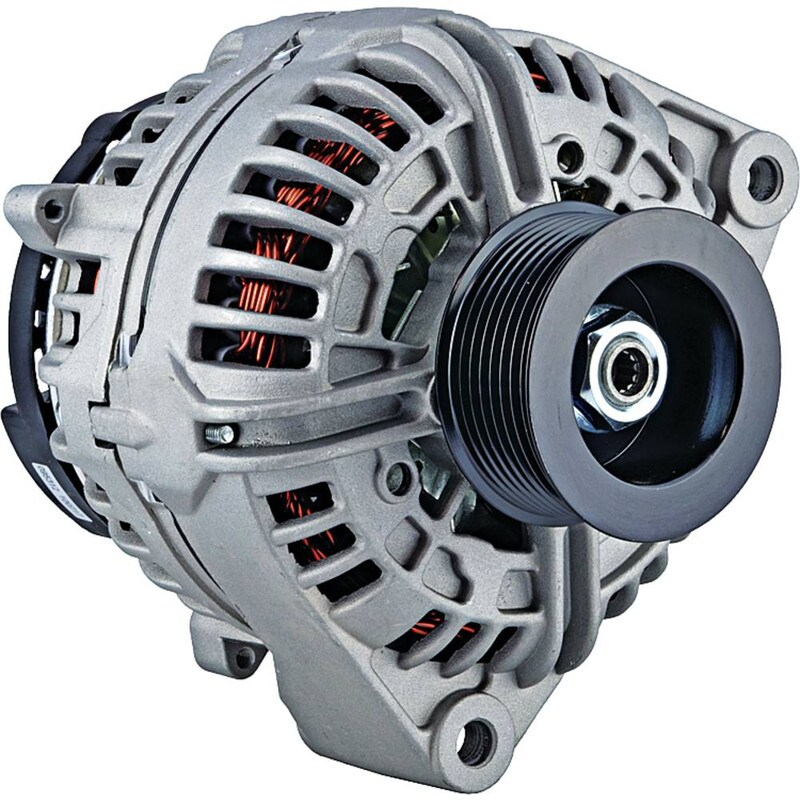

NEW Alternator for JOHN DEERE Applications; 400-24249, RE538241, RE558676, 0124655081, 0124655189, 0124655190; LESTER 11909
$297.99
Specifications
| Unit Type | Alternator |
| Volt | 24 |
| Amps | 100 |
| Rotation Direction | Clockwise |
| Mount Hole ID 1 | 10.500mm |
| Mount Hole 1 Type | Unthreaded |
| Mount Hole 2 Type | Unthreaded |
| Mounting Ear Thickness | 2.193″ |
| Mounting Ear Thickness | 55.700mm |
| Mounting Ear 2 Thickness | 2.193″ |
| Mounting Ear 2 Thickness | 55.700mm |
| Fan Location | Internal |
| Regulator Location | Internal |
| Terminal ID 2 | B+ |
| Terminal 2 Size | M8x1.25 |
| Terminal ID 3 | L |
| Terminal 3 Size | M5x0.8 |
| Terminal ID 4 | W |
| Terminal 4 Size | Spade |
| Polarity | Negative |
| Number of Grooves | 8 |
| Groove OD | 2.717″ |
| Groove OD | 69mm |
| Pulley Type | Solid |
| Pulley Outer Diameter | 2.913″ |
| Pulley Outer Diameter | 74mm |
