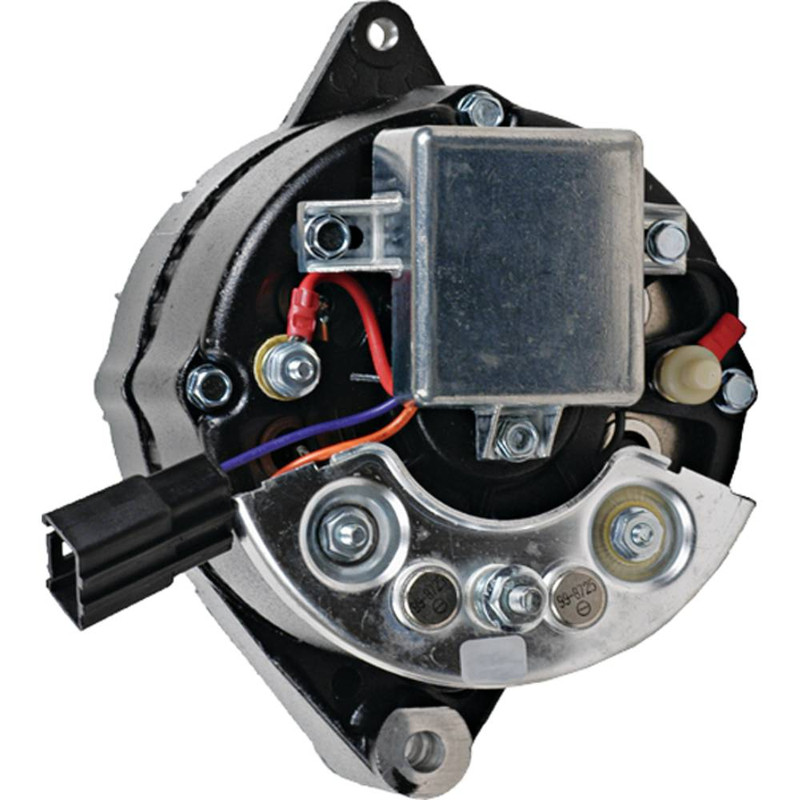

NEW Alternator for JOHN DEERE BACKHOE, TRACTOR & SPRAYER Applications; 400-16022, AR21229, AR38429, AR38458, [LEECE NEVILLE 110-39, RA12NJD604, RA12NJD604S]; LESTER 7356, 7357

Name: NEW Alternator for JOHN DEERE BACKHOE, TRACTOR &amp; SPRAYER Applications; 400-16022, AR21229, AR38429, AR38458, [LEECE NEVILLE 110-39, RA12NJD604, RA12NJD604S]; LESTER 7356, 7357
SKU: 8591
Availability: InStock

$245.14

Categories: Alternator, Backhoe Loader, Sprayer, Tractor

Specifications

UNIT TYPE	Alternator
VOLT	12
AMPS	51
REGULATOR CLOCK	12:00
MOUNT HOLE ID 1	5/16-18
MOUNT HOLE 1 TYPE	Threaded
MOUNT HOLE 2 TYPE	Unthreaded
MOUNTING EAR THICKNESS	0.421″
MOUNTING EAR THICKNESS	10.700mm
MOUNTING EAR 2 THICKNESS	1.969″
MOUNTING EAR 2 THICKNESS	50mm
FAN LOCATION	External
REGULATOR LOCATION	Internal
TERMINAL ID 2	B+
TERMINAL 2 SIZE	1/4-20
TERMINAL ID 3	B-
TERMINAL 3 SIZE	10-24
TERMINAL ID 4	AC
TERMINAL 4 SIZE	10-24

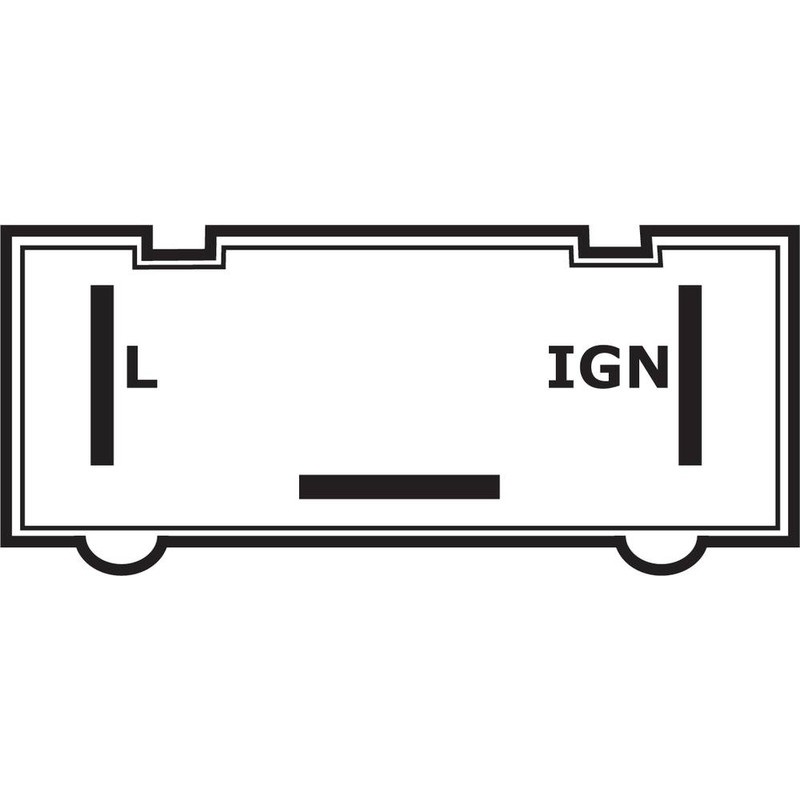

TERMINAL ID 5	L
TERMINAL 5 SIZE	Spade
TERMINAL ID 6	IG
TERMINAL 6 SIZE	Spade
POLARITY	Negative
SHAFT PULLEY OD	0.626″
SHAFT PULLEY OD	15.900mm
SHAFT	5/8-18
WARRANTY	1 Year

WRITE YOUR OWN REVIEW

We appreciate your feedback about our parts, services experience or anything which may help us to serve you better.

[testimonial_view id=”1″]

Part Number & Interchanges

Manufacturer Name	Manufacturer Part #
ARROWHEAD	AMO0071
ATLANTIC QUALITY PARTS	1400-0568
J&N ELECTRICAL PRODUCTS	400-16022
JOHN DEERE	AR21229, AR38429, AR38458, AR40420, AR47937, AT21229, SE501357, TY1427, TY1430, TY24306, TY24307
LEECE NEVILLE	110-39, RA12NJD604, RA12NJD604S
LESTER	7356, 7357
LUCAS ELECTRIC	LRA01200
MOTOROLA	10-38, RA12N55-JD6, RA12N55-JD7, RA12NJD453, RA12NJD604
PRESTOLITE	110-38, 110-39

Applications

Part fit

MAKE	MODEL	ENGINE	YEAR
John Deere	1020	135 Ga	1970, 1971, 1972, 1973
John Deere	1020	152 Diesel	1970, 1971, 1972, 1973
John Deere	135	Diesel Engine	1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982
John Deere	135	Gas Engine	1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982
John Deere	152	Diesel Engine	1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982
John Deere	152	Gas Engine	1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982
John Deere	1520	164 Diesel	1968, 1969, 1970, 1971, 1972, 1973
John Deere	1520	164 Ga	1968, 1969, 1970, 1971, 1972, 1973
John Deere	1530	164 Diesel	1974, 1975
John Deere	180	Diesel Engine	1970
John Deere	180	Gas Engine	1970
John Deere	202	Diesel Engine	1970
John Deere	202	Gas Engine	1970
John Deere	2020	180 Ga	1970, 1971, 1972
John Deere	2020	202 Diesel	1970, 1971, 1972
John Deere	2030	219 Diesel	1971, 1972, 1973, 1974, 1975
John Deere	2030	219 Ga	1971, 1972, 1973, 1974, 1975
John Deere	210C	4-239 Diesel	1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992
John Deere	2250	225 , Ga	1975, 1976, 1977, 1978
John Deere	2250	225 Chrysler Ga	1975, 1976, 1977, 1978
John Deere	2270	225 Chrysler Ga	1975, 1976, 1977, 1978
John Deere	2270	4-219 Diesel	1975, 1976, 1977, 1978
John Deere	2280	All Engine	1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985
John Deere	2320	225 Chrysler Ga	1981, 1982, 1983
John Deere	2320	4-219 Diesel	1981, 1982, 1983
John Deere	2420	219 Diesel	1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985
John Deere	2420	225 Chrysler Ga	1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985
John Deere	2440	JD 4-219 Ds	1976, 1977, 1978, 1979, 1980, 1981, 1982
John Deere	2510	JD 4-202 Ds	1965, 1966, 1967, 1968
John Deere	2520	JD 4-202 Ga	1967, 1968, 1969, 1970, 1971, 1972, 1973
John Deere	2520	JD 4-219 Ds	1967, 1968, 1969, 1970, 1971, 1972, 1973
John Deere	2630	JD 4-276 Ds	1974, 1975
John Deere	2640	276 Diesel	1976, 1977, 1978, 1979, 1980, 1981, 1982
John Deere	2640	JD 4-276 Ds	1976, 1977, 1978, 1979, 1980, 1981, 1982
John Deere	300	Diesel Engine	1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975
John Deere	300	Gas Engine	1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975
John Deere	300B	All	1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985
John Deere	301	Diesel Engine	1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985
John Deere	301	Gas Engine	1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985
John Deere	301A	Diesel Engine	1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985
John Deere	301A	Gas Engine	1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985
John Deere	302	Diesel Engine	1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981
John Deere	302	Gas Engine	1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981
John Deere	3020	JD 4-240 Ga	1969, 1970, 1971, 1972
John Deere	3020	JD 4-270 Ds	1969, 1970, 1971, 1972
John Deere	302A	Diesel Engine	1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981
John Deere	302A	Diesel Engine	1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981
John Deere	310	Diesel Engine	1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986
John Deere	310	Gas Engine	1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986
John Deere	310A	Diesel Engine	1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986
John Deere	310A	Gas Engine	1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986
John Deere	310B	Diesel Engine	1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986
John Deere	310B	Gas Engine	1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986
John Deere	310C	Diesel Engine	1987, 1988, 1989, 1990, 1991, 1992
John Deere	315C	4039 Diesel	1987, 1988, 1989, 1990, 1991, 1992
John Deere	3164D	All
John Deere	3430	All	1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992
John Deere	362		1970
John Deere	3830	All	1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992
John Deere	400		1978, 1979, 1980, 1981, 1982, 1983
John Deere	4000	JD 6-360 Ga	1969, 1970, 1971, 1972
John Deere	4000	JD 6-404 Ds	1969, 1970, 1971, 1972
John Deere	400A	All	1967, 1968, 1969, 1970
John Deere	400B	All	1970, 1971, 1972, 1973, 1974, 1975, 1976
John Deere	401	Diesel Engine	1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981
John Deere	401	Gas Engine	1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981
John Deere	401A	Diesel Engine	1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981
John Deere	401A	Gas Engine	1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981
John Deere	401B	Diesel Engine	1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981
John Deere	401B	Gas Engine	1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981
John Deere	401C	Diesel Engine	1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981
John Deere	401C	Gas Engine	1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981
John Deere	401D	Diesel Engine	1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981
John Deere	401D	Gas Engine	1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981
John Deere	4020	JD 6-362 Gas & LP	1969, 1970, 1971, 1972
John Deere	4020	JD 6-404 Ds	1969, 1970, 1971, 1972
John Deere	404		1970
John Deere	410	Diesel Engine	1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984
John Deere	410	Gas Engine	1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984
John Deere	410B	Diesel Engine	1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986
John Deere	410B	JD 4-219 Ds	1983, 1984, 1985, 1986
John Deere	410C	JD 4-276 Ds	1987, 1988, 1989, 1990, 1991, 1992
John Deere	4219DF	All
John Deere	4239D / 4239T	All
John Deere	4239D
John Deere	4239T
John Deere	4276D / T	All
John Deere	4276D
John Deere	4276T
John Deere	4320	JD 6-404 Ds	1969, 1970, 1971, 1972, 1973
John Deere	450C	219 Diesel	1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981
John Deere	4520	JD 6-404 Ds	1969, 1970, 1971, 1972, 1973
John Deere	4620	JD 6-404 Ds	1969, 1970, 1971, 1972, 1973
John Deere	480A	Diesel Engine	1977, 1978, 1979, 1980, 1981, 1982
John Deere	480A	Gas Engine	1977, 1978, 1979, 1980, 1981, 1982
John Deere	480B	Diesel Engine	1977, 1978, 1979, 1980, 1981, 1982
John Deere	480B	Gas Engine	1977, 1978, 1979, 1980, 1981, 1982
John Deere	480C	Diesel Engine	1977, 1978, 1979, 1980, 1981, 1982
John Deere	480C	Gas Engine	1977, 1978, 1979, 1980, 1981, 1982
John Deere	500		1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975
John Deere	500C	Diesel Engine	1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982
John Deere	5020	JD 6-531 Ds	1966, 1967, 1968, 1969, 1970, 1971, 1972
John Deere	510	All	1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986
John Deere	510	JD 4-269 80HP Ds	1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981
John Deere	510B	All	1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986
John Deere	510B	JD 4-276 70HP Ds	1983, 1984, 1985, 1986
John Deere	510C	All	1985, 1986
John Deere	510C	JD 4045T 90HP Ds	1985, 1986 , 1987, 1988, 1989, 1990, 1991, 1992
John Deere	600 / 600A	152.0, Diesel	1973, 1974, 1975, 1976, 1977, 1978
John Deere	600	152.0, Diesel	1973, 1974, 1975, 1976, 1977, 1978
John Deere	6000 Hi Cycle	219 Diesel	1975, 1976, 1977, 1978
John Deere	6000	219.0, Diesel	1975, 1976, 1977, 1978, 1979
John Deere	600A	152.0, Diesel	1973, 1974, 1975, 1976, 1977, 1978
John Deere	6030	JD 6-531 Ds	1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977
John Deere	610B	JD 4-276 80HP Ds	1983, 1984, 1985, 1986
John Deere	610C	JD 4-276 95HP Ds	1987, 1988, 1989
John Deere	6329D	All
John Deere	6619	All
John Deere	690 / 690A	404 Diesel	1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983
John Deere	690	404 Diesel , Diese	1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983
John Deere	700		1973, 1974, 1975, 1976, 1977, 1978
John Deere	7020	404 Diesel Turbocharged , Diesel	1971, 1972, 1973, 1974, 1975
John Deere	710B	All	1983, 1984, 1985, 1986
John Deere	710B	JD 6-329 100HP Ds	1987, 1988, 1989
John Deere	710C	All	1983, 1984, 1985, 1986
John Deere	710C	JD 6059T 115HP Ds	1989, 1990, 1991, 1992, 1993
John Deere	734		1973, 1974, 1975, 1976, 1977, 1978
John Deere	7520	6-531 Diesel	1971, 1972, 1973, 1974, 1975
John Deere	760A	531 Diesel	1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976
John Deere	800	Chrysler 22	1975, 1976, 1977, 1978, 1979, 1980
John Deere	830	Chrysler 22	1975, 1976, 1977, 1978, 1979, 1980
John Deere	880	135 Ga	1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980
John Deere	880	180 Ga	1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980
John Deere	880	202 Diesel	1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980
John Deere	EA-135		1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982
John Deere	EA-152		1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982
John Deere	EA-180		1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982
John Deere	EA-202		1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982
John Deere	JD24	J. Deere Diese	1970, 1971, 1972, 1973, 1974, 1975, 1976
John Deere	JD300	Diesel Engine	1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974
John Deere	JD300	Gas Engine	1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974
John Deere	JD301	Diesel Engine	1971, 1972, 1973
John Deere	JD301A	Diesel Engine	1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981
John Deere	JD301A	Gas Engine	1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981
John Deere	JD310	Diesel
John Deere	JD310	Ga
John Deere	JD310	Gas or Diesel Engine
John Deere	JD350	Diesel Engine	1965, 1966, 1967, 1968, 1969, 1970
John Deere	JD350	Gas Engine	1965, 1966, 1967, 1968, 1969, 1970
John Deere	JD380	164 Diesel	1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981
John Deere	JD380	164 Ga	1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981
John Deere	JD400	Diesel Engine	1965, 1966, 1967, 1968, 1969, 1970, 1971
John Deere	JD400	Gas Engine	1965, 1966, 1967, 1968, 1969, 1970, 1971
John Deere	JD401	Diesel Engine	1971, 1972, 1973
John Deere	JD401	Gas Engine	1971, 1972, 1973
John Deere	JD480	180.6 Ga	1966, 1967, 1968, 1969, 1970, 1971, 1972
John Deere	JD480	202 Diesel	1966, 1967, 1968, 1969, 1970, 1971, 1972
John Deere	JD480A	202 Diesel	1972, 1973, 1974
John Deere	JD480B	All	1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981
John Deere	JD480C	All	1981, 1982, 1983, 1984, 1985, 1986
John Deere	JD500	Gas Engine	1965, 1966, 1967
John Deere	JD500A	Gas Engine	1967, 1968, 1969, 1970
John Deere	JD500B	Gas Engine	1969, 1970
John Deere	JD500C	JD 80HP Ds	1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985
John Deere	JD600	Gas Engine	1964, 1965, 1966, 1967, 1968, 1969, 1970
John Deere	JD700	531 Diesel	1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974
John Deere	JD700A	531 Diesel	1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976
John Deere	JD760A	531 Diesel	1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976
John Deere	NA-135		1970
John Deere	NA-152		1970
John Deere	NA-180		1970
John Deere	NA-202		1970
Minneapolis-Moline	336-4A	Diesel Engine	1970, 1971, 1972
Minneapolis-Moline	336-4A	Gas & LPG Engine	1970, 1971, 1972
Minneapolis-Moline	605A-6A	Gas & LPG Engine	1970, 1971, 1972
Minneapolis-Moline	A4T-1400	6-504 Diesel	1969, 1970, 1971, 1972
Minneapolis-Moline	A4T-1600	6-504 LP	1969, 1970, 1971, 1972
Minneapolis-Moline	A4T-1600	6-585 Diesel	1969, 1970, 1971, 1972
Minneapolis-Moline	G-1050	6-504 LPG / Diesel	1969, 1970, 1971, 1972
Minneapolis-Moline	G-1350	6-504 LPG Engine	1970, 1971, 1972
Minneapolis-Moline	G-1350	6-585 Diesel	1970, 1971, 1972
Minneapolis-Moline	G-900	6-425 Gas Engine	1969
Minneapolis-Moline	G-900	6-451 Diesel Engine	1969
Minneapolis-Moline	G-950	6-425 Gas Engine	1969, 1970, 1971, 1972
Minneapolis-Moline	G-950	6-425 LPG Engine	1969, 1970, 1971, 1972
Minneapolis-Moline	G-950	6-451 Diesel Engine	1969, 1970, 1971, 1972
Minneapolis-Moline	HD-504A-6A	504 Engine	1970, 1971, 1972
Minneapolis-Moline	HD-605B-6A	Gas & LPG Engine	1970, 1971, 1972
Minneapolis-Moline	HD-800-6A	Gas Engine	1970, 1971, 1972
Minneapolis-Moline	M-670 / M-670 Super	4-336 Gas and LP	1969

+1 (800) 978 4880

info@partszone.ca

Login

NEW Alternator for JOHN DEERE BACKHOE, TRACTOR & SPRAYER Applications; 400-16022, AR21229, AR38429, AR38458, [LEECE NEVILLE 110-39, RA12NJD604, RA12NJD604S]; LESTER 7356, 7357

Specifications

We appreciate your feedback about our parts, services experience or anything which may help us to serve you better.

Part Number & Interchanges

Applications

Our Goal

Store Policies

Contact Us

Fulfillment Facility

NEW Alternator for JOHN DEERE BACKHOE, TRACTOR & SPRAYER Applications; 400-16022, AR21229, AR38429, AR38458, [LEECE NEVILLE 110-39, RA12NJD604, RA12NJD604S]; LESTER 7356, 7357

Specifications

We appreciate your feedback about our parts, services experience or anything which may help us to serve you better.

Related products
