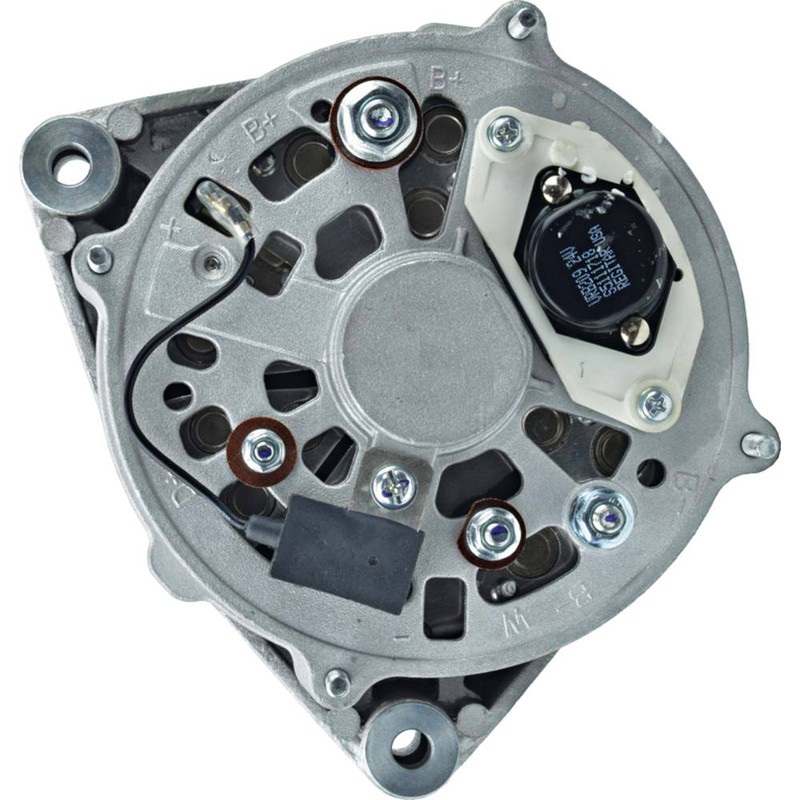

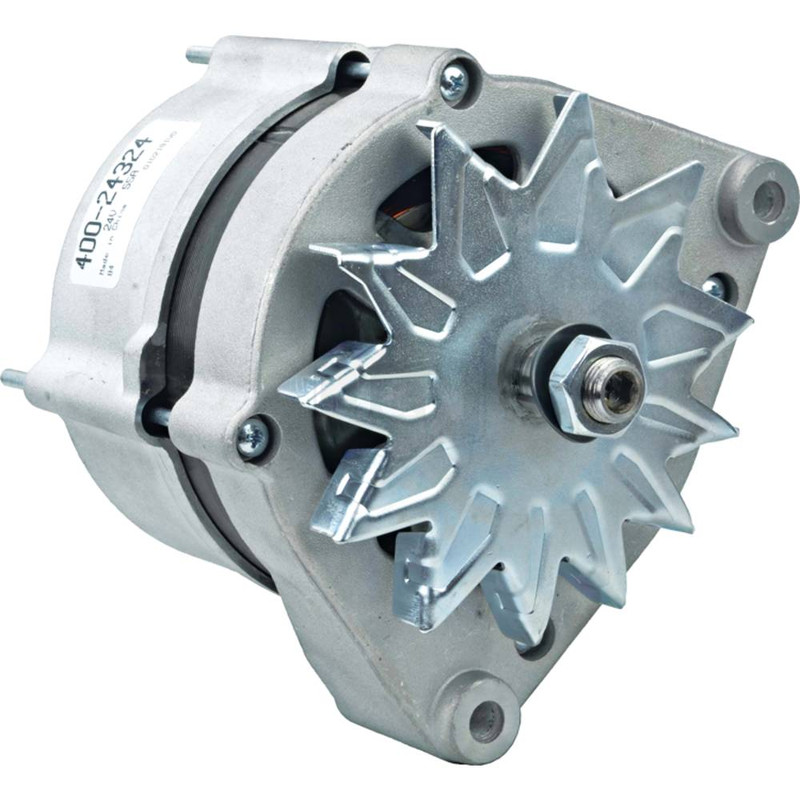

NEW Alternator for KHD DEUTZ BF10L513 Diesel Engines & TUG ACU5134 Applications; 400-24324, R941520, R941520EX, 117-1628, 1174253, 1176424, 117-9469, 117-9840, 118-0005; LESTER 12294
$209.99
Specifications
UNIT TYPE |
Alternator |
QUALITY TYPE |
Heavy Duty |
VOLT |
24 |
AMPS |
55 |
REGULATOR CLOCK |
2:00 |
MOUNT HOLE ID 1 |
8.800mm |
MOUNT HOLE 1 TYPE |
Unthreaded |
MOUNT HOLE 2 TYPE |
Unthreaded |
FAN LOCATION |
External |
REGULATOR LOCATION |
Internal |
TERMINAL ID 2 |
B+ |
TERMINAL 2 SIZE |
M8x1.25 |
TERMINAL ID 3 |
D+ |
TERMINAL 3 SIZE |
M4x0.7 |
TERMINAL ID 4 |
W |
TERMINAL 4 SIZE |
M5x0.8 |
POLARITY |
Negative |
SHAFT PULLEY OD |
0.669″ |
SHAFT PULLEY OD |
17mm |
WARRANTY |
1 Year |
Part Number & Interchanges
Manufacturer Name |
Manufacturer Part # |
ARROWHEAD |
400-24011 |
BOSCH |
0120469030, 0120469521, 0120469585, 0986034430 |
CASEIH |
R941520, R941520EX |
DEUTZ |
0117-1628, 0117-4253, 0117-6424, 0117-9840 |
FORD |
1620918, 83DB10346AA |
J&N ELECTRICAL PRODUCTS |
400-24121, 400-24324 |
JOHN DEERE |
AT274384 |
KHD |
17-1628, 1174253, 1176424, 117-9469, 117-9840, 118-0005 |
LESTER |
12294 |
MAHLE |
11.201.903, AAK3318, IA0903, MG384 |
MARELLI |
943357775, MAR905 |
MERCEDES |
0061544802, 7161090140 |
OTHER OEMS |
1702121, 42522722, 4792491, 521566, 6000973, 6104073, 8EL725800-001, CA501IR |
VALEO |
436418 |
VOLVO |
14511656 |
Applications
Part fit
MAKE |
MODEL |
ENGINE |
John Deere |
1050C |
All |
John Deere |
655C |
Liebherr D927 Ds |
John Deere |
755C |
Liebherr D926 Ds |
KHD |
BF10L513 |
16L |
KHD |
BF6L513R |
9.6L |
Tug |
ACU5134 |
Deutz BF6M101 |
