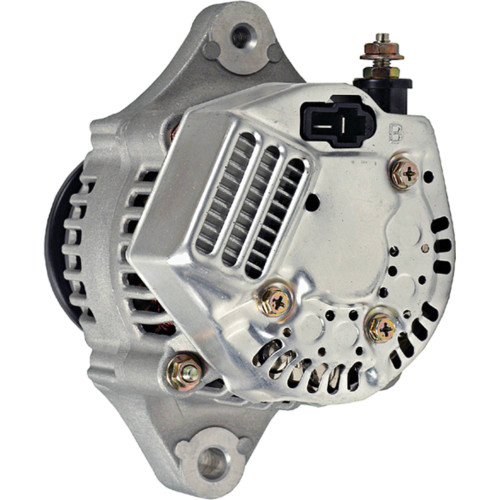

NEW Alternator for KOMATSU & TOYOTA Applications; 400-52001, 600-821-2350, 600-821-4490, 27060-78001, 27060-78001-71, 27060-96001; LESTER 12180, 12197
$159.99
Specifications
| UNIT TYPE |
Alternator |
| VOLT |
12 |
| AMPS |
35 |
| REGULATOR CLOCK |
12:00 |
| MOUNT HOLE ID 1 |
M8x1.25 |
| MOUNT HOLE 1 TYPE |
Threaded |
| MOUNT HOLE 2 TYPE |
Unthreaded |
| FAN LOCATION |
Internal |
| REGULATOR LOCATION |
Internal |
| TERMINAL ID 2 |
B+ |
| TERMINAL 2 SIZE |
M6x1.00 |
| POLARITY |
Negative |
| NUMBER OF GROOVES |
1 |
| PULLEY TYPE |
Solid |
| WARRANTY |
1 Year |
|
Plug Code “IG, L” |
Part Number & Interchanges
| Manufacturer Name |
Manufacturer Part # |
| ARROWHEAD |
ND100211-1662, ND9760218-166 |
| DENSO |
100211-1660, 100211-1661, 100211-1662, 100211-449, 100211-4490, 9760218-166 |
| HYSTER |
3049491 |
| KHD |
0441-2972 |
| KOMATSU |
600-821-2350, 600-821-4490 |
| LESTER |
12180, 12197 |
| LUCAS ELECTRIC |
LRA02615 |
| TOWMOTOR |
213534 |
| TOYOTA |
27060-78001, 27060-78001-71, 27060-96001 |
Applications
| Make |
Model |
Engine |
Years |
| Komatsu |
FD20-11 |
4D95 |
1988 |
| Komatsu |
FD20DC-11 |
4D95 |
1988 |
| Komatsu |
FD20SDC-11 |
4D95 |
1988 |
| Komatsu |
FD20ST-11 |
4D95 |
1988 |
| Komatsu |
FD20T-11 |
4D95 |
1988 |
| Komatsu |
FD20WC-11 |
4D95 |
1988 |
| Komatsu |
FD30-11 |
4D95 |
1988 |
| Komatsu |
FD30H-11 |
4D95 |
1988 |
| Komatsu |
FD30S-11 |
4D95 |
1988 |
| Komatsu |
FD30S-5 |
4D95 |
1988 |
| Komatsu |
FD30SV-11 |
4D95 |
1990 |
| Komatsu |
FD30V-11 |
4D95 |
1990 |
| Kubota |
5FDL10 |
|
1986 – 1989 |
| Kubota |
V1502 |
|
1986 |
| Toyota |
5FD-10 |
V1502 |
1986 – 1989 |
| Toyota |
5FD-14 |
V1502 |
1986 – 1989 |
| Toyota |
5FD-15 |
V1502 |
1986 – 1989 |
| Toyota |
5FD-18 |
V1502 |
1986 – 1989 |
| Toyota |
5FD-20 |
V1502 |
1986 – 1989 |
| Toyota |
5FD-23 |
V1502 |
1986 – 1989 |
| Toyota |
5FD-25 |
V1502 |
1986 – 1989 |
| Toyota |
5FDL-10 |
V1502 |
1986 – 1989 |
| Toyota |
5FDL-14 |
V1502 |
1986 – 1989 |
| Toyota |
5FDL-15 |
V1502 |
1986 – 1989 |
| Toyota |
5FDL-18 |
V1502 |
1986 – 1989 |
| Toyota |
5FDL-20 |
V1502 |
1986 – 1989 |
| Toyota |
5FDL-23 |
V1502 |
1986 – 1989 |
| Toyota |
5FDL-25 |
V1502 |
1986 – 1989 |
| Toyota |
5FG-10 |
4P |
1986 – 1988 |
| Toyota |
5FG-10 |
4Y |
1986 – 1988 |
| Toyota |
5FG-14 |
4P |
1986 – 1988 |
| Toyota |
5FG-14 |
4Y |
1986 – 1988 |
| Toyota |
5FG-15 |
4P |
1986 – 1988 |
| Toyota |
5FG-15 |
4Y |
1986 – 1988 |
| Toyota |
5FG-18 |
4P |
1986 – 1988 |
| Toyota |
5FG-18 |
4Y |
1986 – 1988 |
| Toyota |
5FG-20 |
4P |
1986 – 1988 |
| Toyota |
5FG-20 |
4Y |
1986 – 1988 |
| Toyota |
5FG-23 |
4P |
1986 – 1988 |
| Toyota |
5FG-23 |
4Y |
1986 – 1988 |
| Toyota |
5FG-25 |
4P |
1986 – 1988 |
| Toyota |
5FG-25 |
4Y |
1986 – 1988 |
| Toyota |
5FG-28 |
4Y |
1986 – 1988 |
| Toyota |
5FG-30 |
4Y |
1986 – 1988 |
| Toyota |
5FGL-10 |
4P |
1986 – 1989 |
| Toyota |
5FGL-14 |
4P |
1986 – 1989 |
| Toyota |
5FGL-15 |
4P |
1986 – 1989 |
| Toyota |
5FGL-18 |
4P |
1986 – 1989 |
| Toyota |
5FGL-20 |
4P |
1986 – 1988 |
| Toyota |
5FGL-23 |
4P |
1986 – 1988 |
| Toyota |
5FGL-25 |
4P |
1986 – 1988 |
