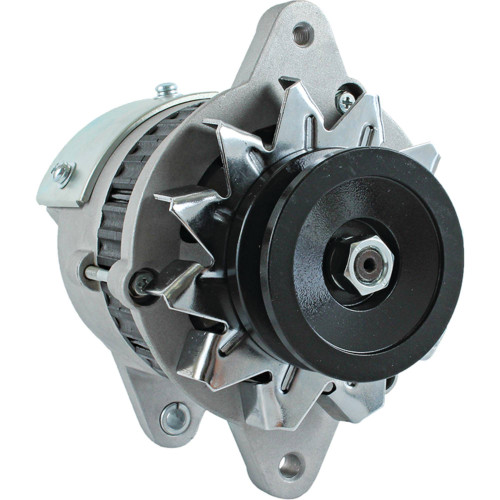

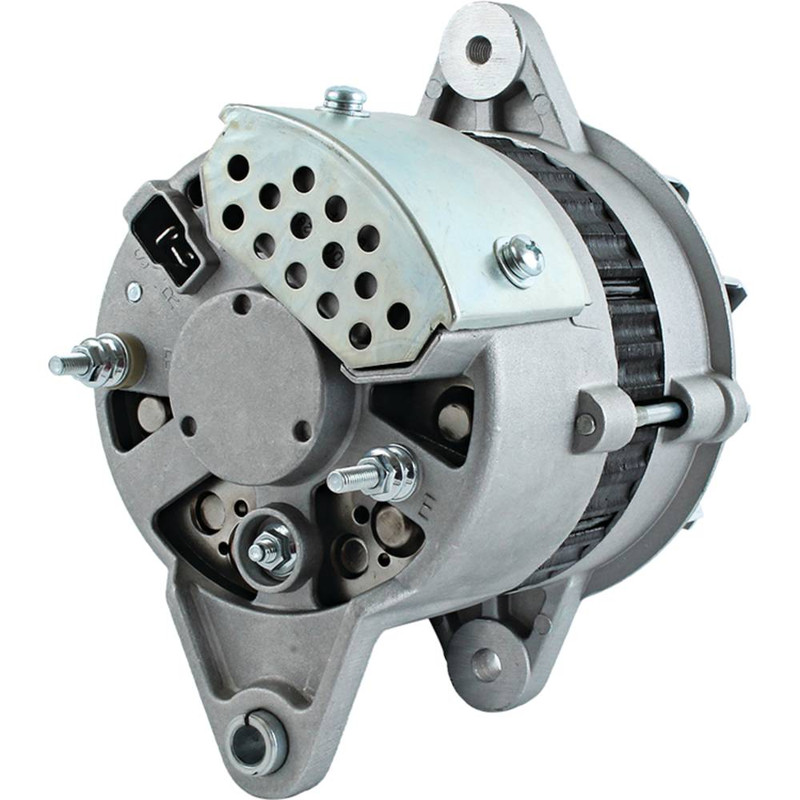

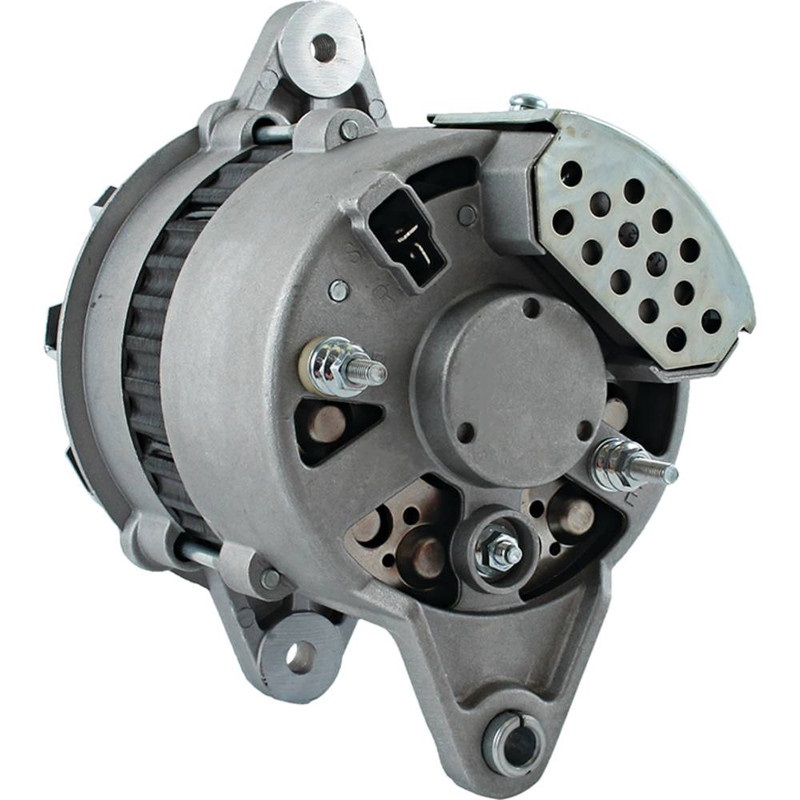

NEW Alternator for KOMATSU Various Applications; 400-50031, 600-821-3840, 600-821-3850, 600-821-3860, 600-821-3870; LESTER 12253, 12256
$184.99
Specifications
| UNIT TYPE |
Alternator |
| VOLT |
24 |
| AMPS |
15 |
| REGULATOR CLOCK |
11:00 |
| ROTATION DIRECTION |
Clockwise |
| MOUNT HOLE ID 1 |
M8x1.25 |
| MOUNT HOLE 1 TYPE |
Threaded |
| MOUNT HOLE 2 TYPE |
Unthreaded |
| MOUNT HOLE ID 3 |
8.500mm |
| MOUNT HOLE 3 TYPE |
Unthreaded |
| MOUNTING EAR THICKNESS |
0.504″ |
| MOUNTING EAR THICKNESS |
12.800mm |
| MOUNTING EAR 2 THICKNESS |
0.512″ |
| MOUNTING EAR 2 THICKNESS |
13mm |
| MOUNTING EAR 3 THICKNESS |
0.689″ |
| MOUNTING EAR 3 THICKNESS |
17.500mm |
| FAN LOCATION |
External |
| REGULATOR LOCATION |
Internal |
| TERMINAL ID 2 |
B+ |
| TERMINAL 2 SIZE |
M5x0.8 |
| TERMINAL ID 3 |
S |
| TERMINAL 3 SIZE |
Spade |
| TERMINAL ID 4 |
R |
| TERMINAL 4 SIZE |
Spade |
| TERMINAL ID 5 |
E |
| TERMINAL 5 SIZE |
M5x0.8 |
| POLARITY |
Negative |
| NUMBER OF GROOVES |
1 |
| PULLEY TYPE |
Solid |
| PULLEY OUTER DIAMETER |
3.031″ |
| PULLEY OUTER DIAMETER |
77mm |
Part Number & Interchanges
| Manufacturer Name |
Manufacturer Part # |
| ARROWHEAD |
ANK0009 |
| J&N ELECTRICAL PRODUCTS |
400-50012 |
| KOMATSU |
600-821-3840, 600-821-3850, 600-821-3860, 600-821-3870 |
| LESTER |
12253, 12256 |
| NIKKO |
01-33-2004, 0-33000-5480, 0-33000-5510, 0-33000-5514, 0-33000-5700, 0-33000-5710 |
Applications
| MAKE |
MODEL |
Engine |
YEAR |
| Komatsu |
D20 |
4D95S Engine |
|
| Komatsu |
D21 |
4D95S Engine |
|
| Komatsu |
D31 |
4D105 Engine |
1995 |
| Komatsu |
D37 |
6D95L Engine |
|
| Komatsu |
D40 |
4D105-5 Engine |
|
| Komatsu |
D41 |
|
|
| Komatsu |
E70Z |
4D9 |
|
| Komatsu |
E70ZS |
4D9 |
|
| Komatsu |
EC50Z |
|
|
| Komatsu |
EC50ZS |
4D9 |
|
| Komatsu |
EC50ZSB |
4D9 |
|
| Komatsu |
EC75Z |
|
|
| Komatsu |
EC75ZS |
4D9 |
|
| Komatsu |
EG60B |
6D95 Engine |
|
| Komatsu |
EG60BS |
6D95 Engine |
|
| Komatsu |
EG85B |
6D9 |
1994 |
| Komatsu |
EG85BS |
6D9 |
1994 |
| Komatsu |
FD23-10 |
4D95 Engine |
|
| Komatsu |
FD25-10 |
4D95 Engine |
|
| Komatsu |
FD25-11 |
4D95 Engine |
|
| Komatsu |
FD25S-11 |
4D95 Engine |
|
| Komatsu |
FD25V-11 |
|
|
| Komatsu |
FD28-10 |
4D95 Engine |
|
| Komatsu |
FD30-11 |
4D95 Engine |
|
| Komatsu |
FD30H-11 |
|
|
| Komatsu |
FD30S-11 |
4D95 Engine |
|
| Komatsu |
FD30S-5 |
4D95 Engine |
|
| Komatsu |
FD30SV-11 |
|
|
| Komatsu |
FD30V-11 |
|
|
| Komatsu |
FD40DC |
6D9 |
|
| Komatsu |
FD40HT |
6D9 |
|
| Komatsu |
FD40HTE |
6D10 |
|
| Komatsu |
FD40HWC |
6D9 |
|
| Komatsu |
FD40HWCE |
6D10 |
|
| Komatsu |
FD40S-4 |
6D95 Engine |
|
| Komatsu |
FD40WC |
6D9 |
|
| Komatsu |
FD40WCE |
6D10 |
|
| Komatsu |
FD40Z-4 |
6D95 Engine |
|
| Komatsu |
FD40Z-5 |
6D95 Engine |
|
| Komatsu |
FD45-4 |
6D95 Engine |
|
| Komatsu |
FD45-5 |
6D95 Engine |
|
| Komatsu |
FD45H-4 |
6D95 Engine |
|
| Komatsu |
FD45S-4 |
6D95 Engine |
|
| Komatsu |
FD50E |
6D9 |
|
| Komatsu |
FD50H |
6D9 |
|
| Komatsu |
FD70HE |
6D10 |
|
| Komatsu |
PC60 |
|
|
| Komatsu |
PC75U |
4D95 Engine |
|
| Komatsu |
PC80 |
4D95 Engine |
|
| Komatsu |
PC90 |
4D95 Engine |
|
| Komatsu |
S23 |
6D9 |
|
| Komatsu |
S23E |
6D9 |
1994 |
