NEW Alternator for LEYLAND NUFFIELD 2100, 4100, 802S, 804S & MASSEY FERGUSON MF 174, MF-184 Tractors, OTH Applications; 400-30030, 1055079M91, 3473834M91, D1RY10346D, [LUCAS ELECTRIC 23568, 23583, 23585, 23592, …]; LESTER 14018, 14030, 14086
$139.99
Info: STD QUALITY
Search: PREMIUM QUALITY
Specifications
| UNIT TYPE | Alternator |
| VOLT | 12 |
| AMPS | 35 |
| REGULATOR CLOCK | 5:00 |
| MOUNT HOLE ID 1 | M8x1.25 |
| MOUNT HOLE 1 TYPE | Threaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| MOUNT HOLE ID 3 | 8.400mm |
| MOUNT HOLE 3 TYPE | Unthreaded |
| MOUNTING EAR THICKNESS | 0.394″ |
| MOUNTING EAR THICKNESS | 10mm |
| MOUNTING EAR 2 THICKNESS | 0.394″ |
| MOUNTING EAR 2 THICKNESS | 10mm |
| MOUNTING EAR 3 THICKNESS | 0.795″ |
| MOUNTING EAR 3 THICKNESS | 20.200mm |
| FAN LOCATION | External |
| REGULATOR LOCATION | Internal |

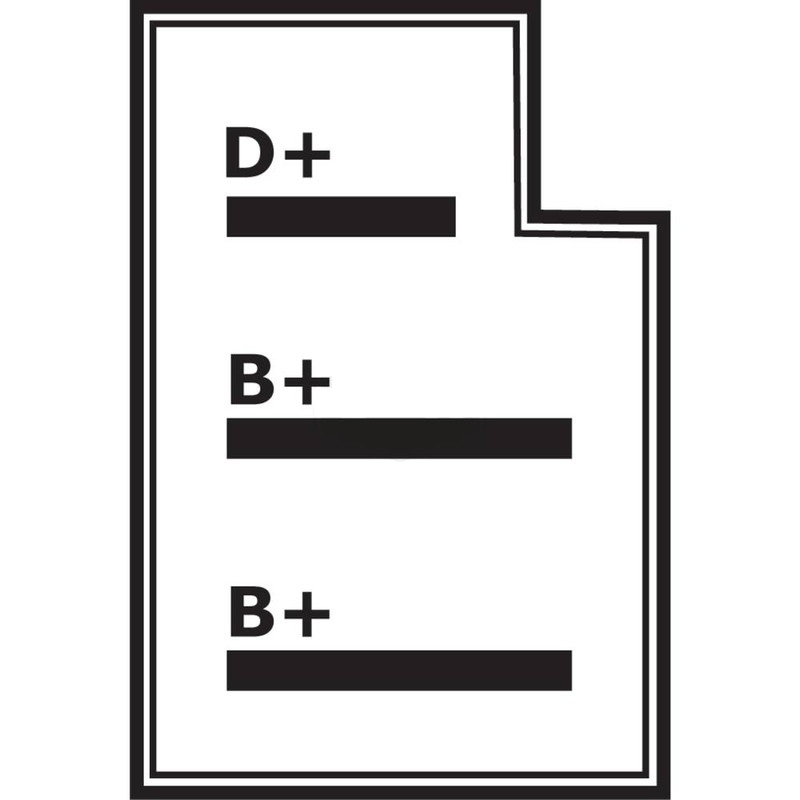

| TERMINAL ID 2 | B+ |
| TERMINAL 2 SIZE | Spade |
| TERMINAL ID 3 | B+ |
| TERMINAL 3 SIZE | Spade |
| TERMINAL ID 4 | D+ |
| TERMINAL 4 SIZE | Spade |
| POLARITY | Negative |
| NUMBER OF GROOVES | 1 |
| PULLEY TYPE | Solid |
| PULLEY OUTER DIAMETER | 2.480″ |
| PULLEY OUTER DIAMETER | 63mm |
| WARRANTY | 1 Year |
WRITE YOUR OWN REVIEW
We appreciate your feedback about our parts, services experience or anything which may help us to serve you better.
[testimonial_view id=”1″]
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | 400-30002, ALU0032, IA0305, MG427 |
| BOSCH | AL318X |
| FORD | D1RY10346D, D1RY-10346-D, GLE102 |
| J&N ELECTRICAL PRODUCTS | 400-30002, 400-30030 |
| LESTER | 14018, 14030, 14086 |
| LETRIKA/ISKRA | IA 0305 |
| LUCAS ELECTRIC | 23568, 23568A, 23583, 23583A, 23583B, 23585, 23592, 23600, 23600A, 23600B, 23624, 23624A, 23624B, 23644, 23644A, 23644B, 23645, 23645A, 23645B, 23646, 23653, 23659, 23675, 23725, 23729, 23736, 23775, 23801, 23818, 23818A, 23818A/D, 23818B, 23818C, 23818D, 23852, 23963, A1513, A1711, A1718, A1719, A1721, A1814, LRA00101, LRA00113, LRA101 |
| LUCAS TVS | 26021250 |
| MAHLE | MG427 |
| MARELLI | 9435645010, MAR478 |
| MASSEY FERGUSON | 1055079M91, 3473834M91 |
| VALEO | VA101 |
Applications
Part fit
| MAKE | TYPE | MODEL | ENGINE | YEAR |
| FORD | Auto and Light Truck | CORTINA | 1.6L | 1971, 1972 |
| LEYLAND NUFFIELD | Tractor | Model 2100 | 1978, 1979 | |
| LEYLAND NUFFIELD | Tractor | Model 285 | 1978, 1979 | |
| LEYLAND NUFFIELD | Tractor | Model 4100 | 1978, 1979 | |
| LEYLAND NUFFIELD | Tractor | Model 485 | 1978, 1979 | |
| LEYLAND NUFFIELD | Tractor | Model 802S | Leyland 4-230 Dsl | 1982-84 |
| LEYLAND NUFFIELD | Tractor | Model 804S | Leyland 4-230 Dsl | 1982-84 |
| LEYLAND NUFFIELD | Tractor | Model SQM / SQMS | All | |
| LOTUS | Auto and Light Truck | ELAN | 1.6L | 1972, 1973 |
| LOTUS | Auto and Light Truck | EUROPA | 1.6L | 1969-74 |
| MASSEY FERGUSON | Tractor | MF 174 | Perkins 4-236 Diesel | 1986-90 |
| MASSEY FERGUSON | Tractor | MF-184 | Perkins AD4-236 Diesel | 1980-85 |
| MERCURY | Auto and Light Truck | CAPRI | 2.0L(121) L4 | 1971-74 |
| TRIUMPH | Auto and Light Truck | TR7 | 2.0L | 1975-82 |
