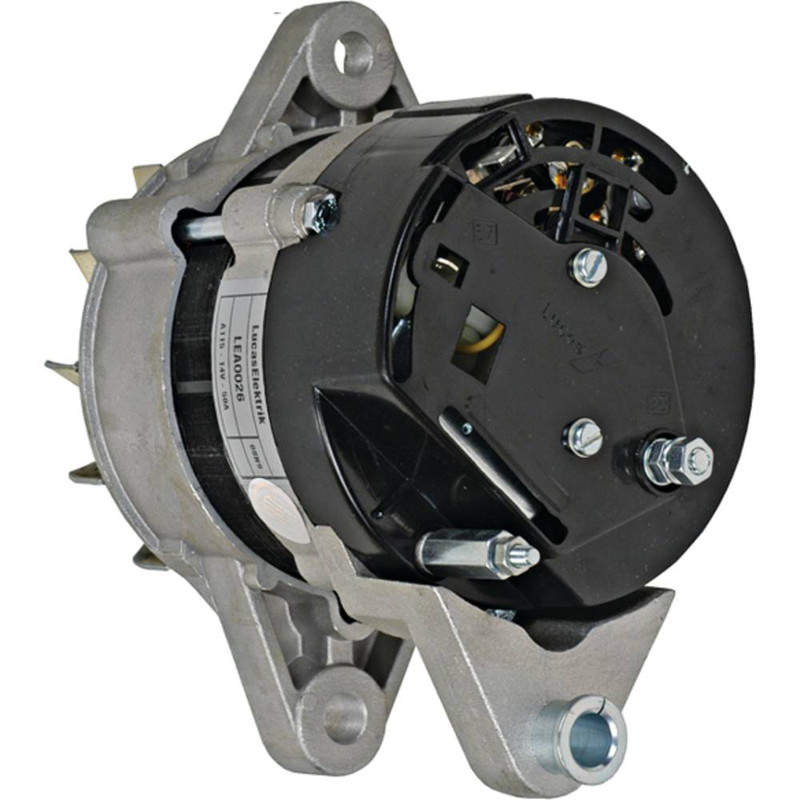

NEW Alternator for MASSEY FERGUSON Tractors; 400-41003, 0011899U91, 0013593U91, 00213593U91, [MARELLI 61920045, 61920166]; LESTER 12869

$244.99



Email
Categories: ,

Specifications

UNIT TYPE Alternator
VOLT 12
AMPS 50
REGULATOR CLOCK 10:00
ROTATION DIRECTION Clockwise
MOUNT HOLE ID 1 11mm
MOUNT HOLE 1 TYPE Unthreaded
MOUNT HOLE 2 TYPE Unthreaded
MOUNT HOLE ID 3 12.300mm
MOUNT HOLE 3 TYPE Unthreaded
MOUNTING EAR THICKNESS 0.654″
MOUNTING EAR THICKNESS 16.600mm
MOUNTING EAR 2 THICKNESS 0.701″
MOUNTING EAR 2 THICKNESS 17.800mm
MOUNTING EAR 3 THICKNESS 1.181″
MOUNTING EAR 3 THICKNESS 30mm
FAN LOCATION External
REGULATOR LOCATION Internal
TERMINAL ID 2 B+
TERMINAL 2 SIZE M6x1.00
TERMINAL ID 3 D+
TERMINAL 3 SIZE Spade
TERMINAL ID 4 W
TERMINAL 4 SIZE Spade
POLARITY Negative
NUMBER OF GROOVES 1
PULLEY TYPE Solid
PULLEY OUTER DIAMETER 2.756″
PULLEY OUTER DIAMETER 70mm
WARRANTY 1 Year



WRITE YOUR OWN REVIEW




We appreciate your feedback about our parts, services experience or anything which may help us to serve you better.
[testimonial_view id=”1″]



Part Number & Interchanges

Manufacturer Name Manufacturer Part #
ARROWHEAD AMM0020, 400-41001
ATLANTIC QUALITY PARTS 1200-0510
LESTER 12869
MARELLI 61920045, 61920166
MASSEY FERGUSON 0011899U91, 0013593U91, 00213593U91

Part fit

Year Make Model Engine
Year Make Model Engine
2004 - 2005 MASSEY FERGUSON 431 3.3L 3-Cyl Diesel
