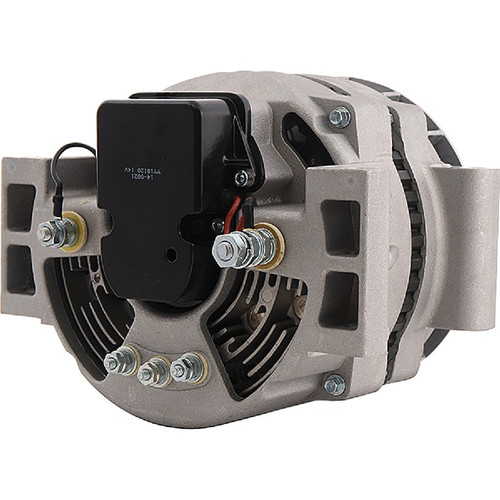

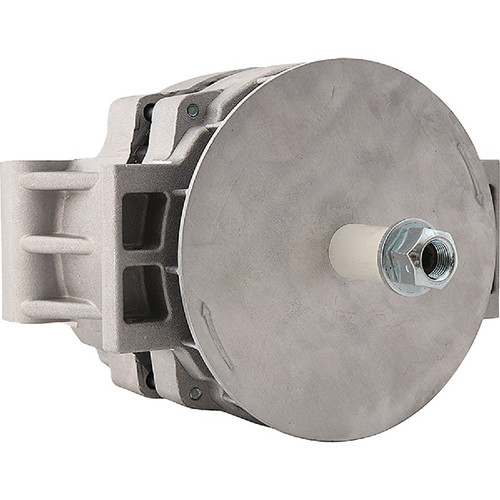

NEW Alternator for MEDIUM-DUTY TRUCKS; 400-16172, 3582185C91, 3591557C91, 4C4O10300PA, 4C4Z10346PA, LN110555P; LESTER 8410, 8732
$299.99
Specifications
| UNIT TYPE |
Alternator |
| QUALITY TYPE |
Standard |
| FAMILY |
Leece Neville 8LHA |
| VOLT |
12 |
| AMPS |
160 |
| REGULATOR CLOCK |
12:00 |
| MOUNT HOLE ID 1 |
10.600mm |
| MOUNT HOLE 1 TYPE |
Unthreaded |
| MOUNT HOLE ID 2 |
10.600mm |
| MOUNT HOLE 2 TYPE |
Unthreaded |
| MOUNT HOLE ID 3 |
10.600mm |
| MOUNT HOLE 3 TYPE |
Unthreaded |
| MOUNT HOLE ID 4 |
10.600mm |
| MOUNT HOLE 4 TYPE |
Unthreaded |
| MOUNTING EAR THICKNESS |
3.150″ |
| MOUNTING EAR THICKNESS |
80mm |
| MOUNTING EAR 2 THICKNESS |
3.150″ |
| MOUNTING EAR 2 THICKNESS |
80mm |
| MOUNTING EAR 3 THICKNESS |
3.150″ |
| MOUNTING EAR 3 THICKNESS |
80mm |
| MOUNTING EAR 4 THICKNESS |
3.150″ |
| MOUNTING EAR 4 THICKNESS |
80mm |
| FAN LOCATION |
External |
| REGULATOR LOCATION |
Internal |
| TERMINAL ID 2 |
B+ |
| TERMINAL 2 SIZE |
5/16-24 |
| TERMINAL ID 3 |
B- |
| TERMINAL 3 SIZE |
1/4-28 |
| TERMINAL ID 4 |
AC |
| TERMINAL 4 SIZE |
10-24 |
| TERMINAL ID 5 |
AC |
| TERMINAL 5 SIZE |
10-24 |
| TERMINAL ID 6 |
AC |
| TERMINAL 6 SIZE |
10-24 |
| POLARITY |
Insulated |
| SHAFT PULLEY OD |
0.875″ |
| SHAFT PULLEY OD |
22.220mm |
| SHAFT |
5/8-18 |
| WARRANTY |
1 Year |
Part Number & Interchanges
| Manufacturer Name |
Manufacturer Part # |
| ARROWHEAD |
400-16172, AMO0048 |
| CASEIH |
3582185C91, 3591557C91 |
| DELCO |
30003VL |
| FORD |
4C4O10300PA, 4C4Z10346PA |
| FREIGHTLINER |
LN110555P |
| J&N ELECTRICAL PRODUCTS |
400-16017 |
| LEECE NEVILLE |
110-555P, 110-555PHO, 110-555PRM, 110-910, 8LHP2170VE, 8LHP2170VF, 8LHP2172VAH, 8LHP2246VAH, BULK110-555PHO, LBP2176, RM110-555P |
| LESTER |
8410, 8732 |
| MCI MOTOR COACH |
GL576 |
| PACCAR |
RE555P |
