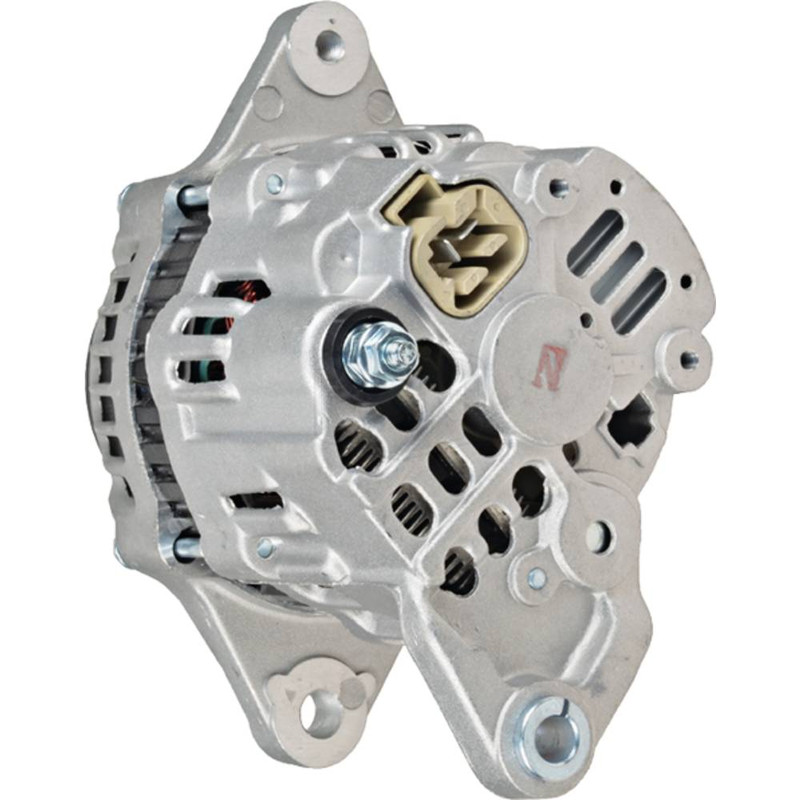

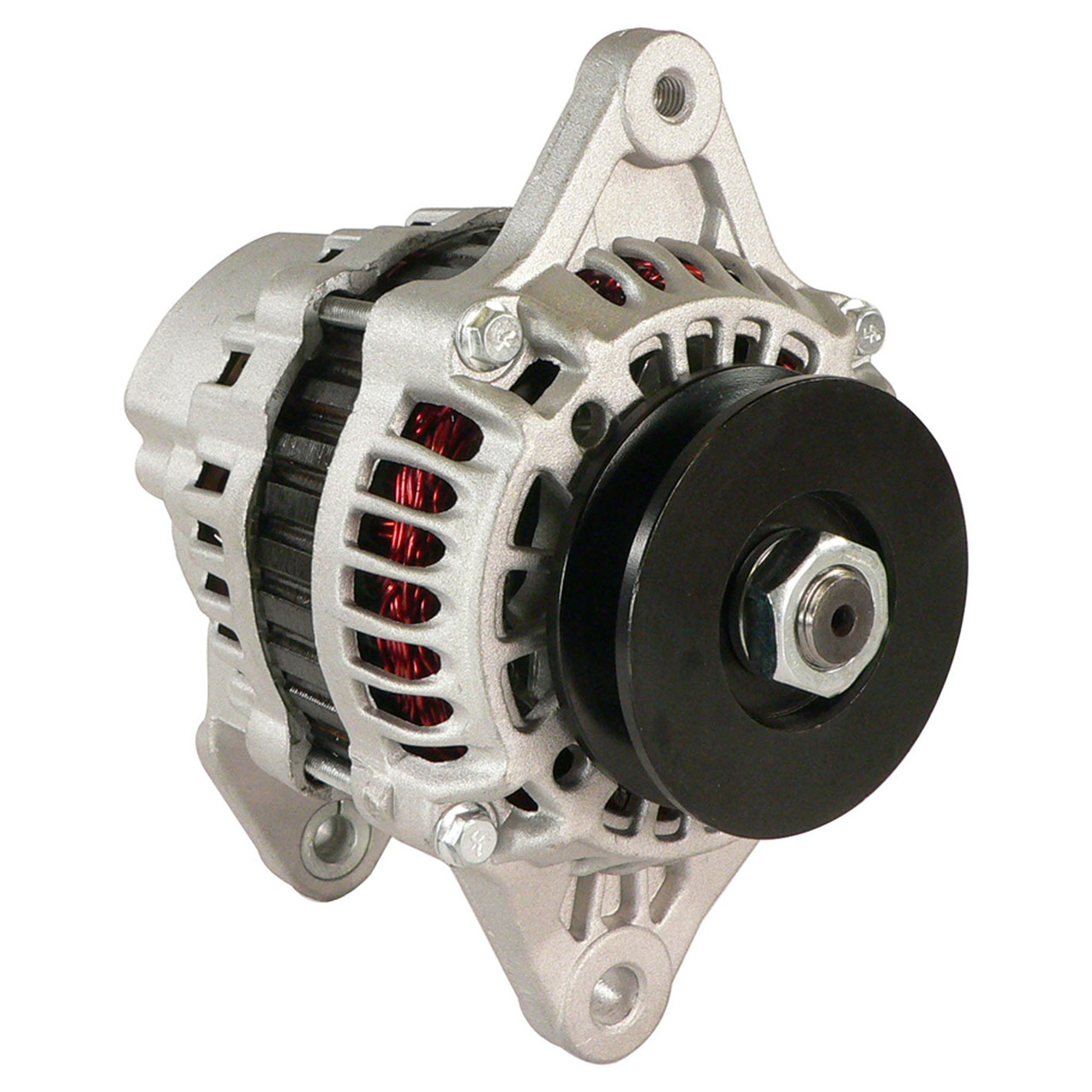

NEW Alternator for SUMITOMO YALE Lift Trucks w/ FE Engine; 400-48062, 1361853, 1450928, 3068342, 1500145-04, 2690027-70, 5059605-60; LESTER 12138
$139.99
2-Blade Plug
Specifications
| UNIT TYPE | Alternator |
| CRITICAL NOTE | No Phase Terminal |
| VOLT | 12 |
| AMPS | 40 |
| REGULATOR CLOCK | 11:00 |
| MOUNT HOLE ID 1 | M8x1.25 |
| MOUNT HOLE 1 TYPE | Threaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| MOUNT HOLE ID 3 | 10.200mm |
| MOUNT HOLE 3 TYPE | Unthreaded |
| FAN LOCATION | Internal |
| REGULATOR LOCATION | Internal |
| TERMINAL ID 2 | B+ |
| TERMINAL 2 SIZE | M6x1.00 |
| POLARITY | Negative |
| NUMBER OF GROOVES | 1 |
| PULLEY TYPE | Solid |
| WARRANTY | 1 Year |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | A7T03277A, AMT0001 |
| BOSCH | AL5009X |
| CLARK EQUIPMENT | 7000215 |
| DELCO | DRA0065 |
| DENSO | 210-9011 |
| HYSTER | 1361853, 1450928, 3068342, 3114961, 3123908, 800045600 |
| J&N ELECTRICAL PRODUCTS | 400-48062 |
| LESTER | 12138 |
| LUCAS ELECTRIC | LRA02043 |
| MAZDA | S5SN-18-300, S5SN18-300, S5SN-18-300A, S5SN18-300A |
| MITSUBISHI | A007T03277, A007T03277A, A7T03277, A7T03277A |
| TOYOTA | 00591-33580-81, 00591-55973-81 |
| YALE | 1500145-04, 2690027-70, 5059605-60, 5059765-79, 5800009-90, 9019488-01 |
