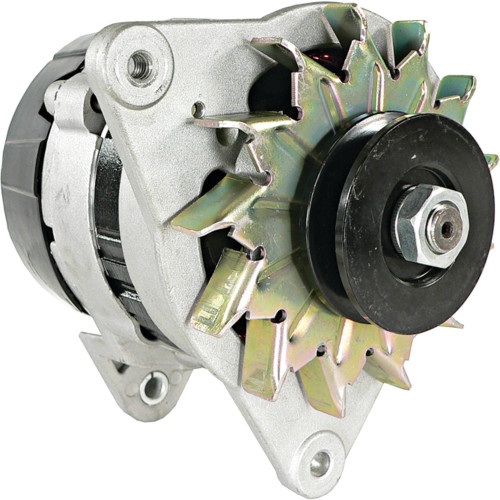

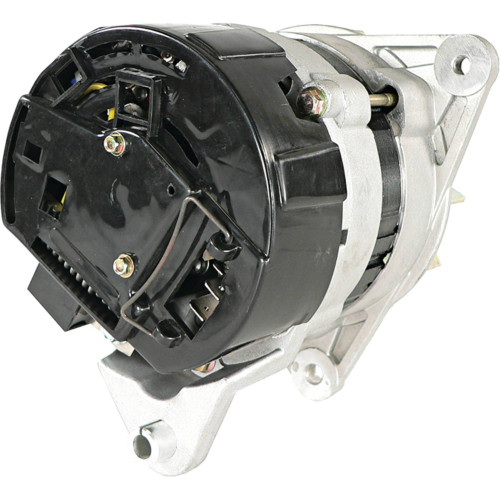

NEW Alternator for Various Applications; 400-30029, AL297X, AL298X, AL300X, 10464215, 10464217, DRA0940, 1096-462-M91, 11.201.067, 11.201.272, 11.201.495, AAG1111; LESTER14028, 14029, 14037
$139.99
QUALITY TYPE: High Output Standard
Specifications
| UNIT TYPE | Alternator |
| QUALITY TYPE | Standard |
| CRITICAL NOTE | The OEM Pulley will not fit onto 400-30029, the OEM Rotor Shaft OD is 15mm 400-30029 has a 17mm OD Rotor Shaft |
| FAMILY | Lucas A115 |
| VOLT | 12 |
| AMPS | 36 |
| REGULATOR CLOCK | 5:00 |
| ROTATION DIRECTION | Clockwise |
| MOUNT HOLE ID 1 | M8x1.25 |
| MOUNT HOLE 1 TYPE | Threaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| MOUNT HOLE ID 3 | 8.300mm |
| MOUNT HOLE 3 TYPE | Unthreaded |
| MOUNTING EAR THICKNESS | 0.394″ |
| MOUNTING EAR THICKNESS | 10mm |
| MOUNTING EAR 2 THICKNESS | 0.394″ |
| MOUNTING EAR 2 THICKNESS | 10mm |
| MOUNTING EAR 3 THICKNESS | 0.795″ |
| MOUNTING EAR 3 THICKNESS | 20.200mm |
| FAN LOCATION | External |
| REGULATOR LOCATION | Internal |

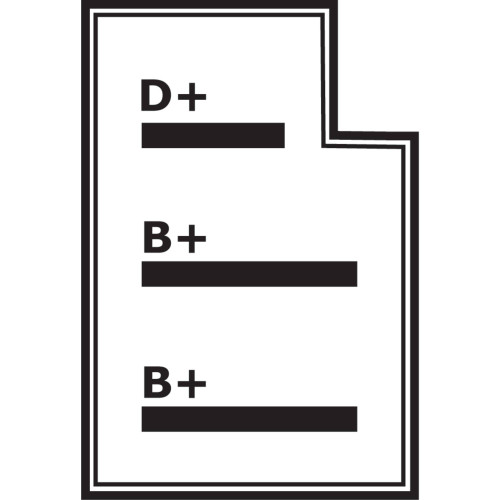

| TERMINAL ID 2 | B+ |
| TERMINAL 2 SIZE | (2) Spade |
| TERMINAL ID 3 | D+ |
| TERMINAL 3 SIZE | Spade |
| POLARITY | Negative |
| NUMBER OF GROOVES | 1 |
| PULLEY TYPE | Solid |
| PULLEY OUTER DIAMETER | 2.484″ |
| PULLEY OUTER DIAMETER | 63.100mm |
| WARRANTY | 1 Year |
| Includes Bolt for Adjusting Ear |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| AC DELCO TOOLS | 334-1526, 334-1529 |
| ARROWHEAD | IA0067, IA0531, L26021193, MG197, MG372 |
| BOSCH | AL297X, AL298X, AL300X |
| CASEIH | K925009 |
| DELCO | 10464215, 10464217, DRA0940 |
| J&N ELECTRICAL PRODUCTS | 400-30008, 400-30029 |
| LESTER | 14028, 14029, 14037 |
| LETRIKA/ISKRA | IA 0067, IA 0531 |
| LUCAS ELECTRIC | 23544, 23554, 23590, 23615, 23617, 23620, 23622, 23643, 23677, 23684, 23691, 23693, 23709, 23713, 23715, 23716, 23717, 23718, 23719, 23721, 23727, 23734, 23735A, 23737, 23745, 23747, 23748, 23750, 23751, 23759, 23765, 23766, 23769, 23771, 23774, 23779, 23795, 23796, 23797, 23802, 23804, 23805, 23808, 23811, 23839, 23842, 23843, 23844, 23845, 23847, 23848, 23850, 23851, 23873, 23889, 23891, 23893, 23925, 23945, 23946, 23962, LRA00100, LRA00106, LRA00226, LRA0103, LRA100 |
| LUCAS TVS | 26021193 |
| MAHLE | 11.201.067, 11.201.272, 11.201.495, AAG1111, AAK1341, AAK4116, IA0067, IA0301, IA0505, MG197, MG207, MG372 |
| MASSEY FERGUSON | 1096-462-M91 |
