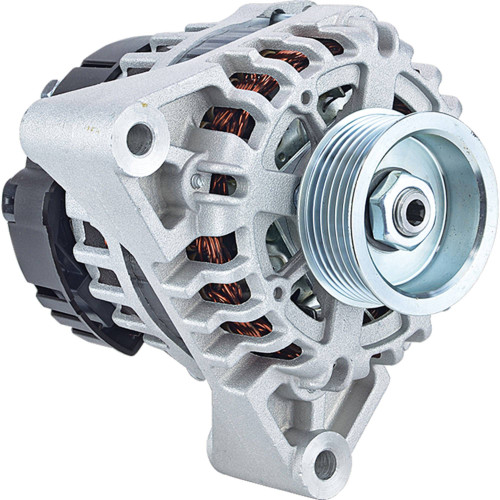

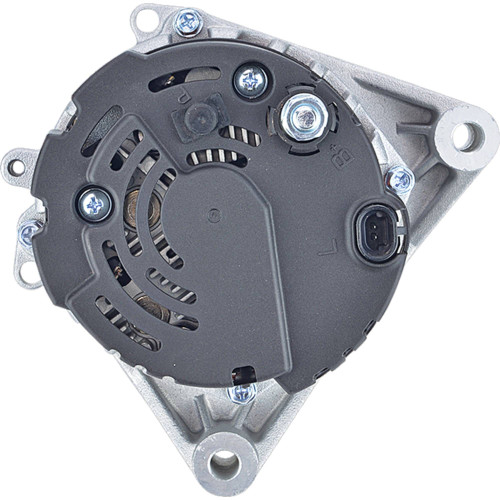

NEW Alternator for VOLVO PENTA Engines – Marine; 400-40057, 2655301, 425302, 600114, A0002655301, 3862613; LESTER 12673
$249.99
Specifications
| UNIT | Alternator |
| VOLT | 12 |
| AMPS | 75 |
| REGULATOR CLOCK | 3:00 |
| MOUNT HOLE ID 1 | 10.100mm |
| MOUNT HOLE 1 TYPE | Unthreaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| MOUNTING EAR THICKNESS | 2.004″ |
| MOUNTING EAR THICKNESS | 50.900mm |
| MOUNTING EAR 2 THICKNESS | 2.004″ |
| MOUNTING EAR 2 THICKNESS | 50.900mm |
| FAN LOCATION | Internal |
| REGULATOR LOCATION | Internal |
| TERMINAL ID 2 | B+ |
| TERMINAL 2 SIZE | M8x1.25 |
| TERMINAL ID 3 | L |
| TERMINAL 3 SIZE | Spade |
| TERMINAL ID 4 | S |
| TERMINAL 4 SIZE | Spade |
| POLARITY | Negative |
| NUMBER OF GROOVES | 6 |
| PULLEY TYPE | Solid |
| PULLEY OUTER DIAMETER | 2.634″ |
| PULLEY OUTER DIAMETER | 66.900mm |
| WARRANTY | 1 Year |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | AVA0120 |
| EMP | 4-6847 |
| J&N ELECTRICAL PRODUCTS | 400-40057 |
| LESTER | 12673 |
| LUCAS ELECTRIC | LRA03018 |
| VALEO | 2655301, 425302, 600114, A0002655301 |
| VOLVO | 3862613 |
Applications
Part fit
| MAKE | MODEL | ENGINE | YEAR |
| Volvo Penta | 3.0GLM | 4cyl 181ci 3.0L Gas | 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007 |
| Volvo Penta | 3.0GLM | 3000cc, 3L/181CI 4-Cyl , Gas | 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007 |
| Volvo Penta | 3.0GLP | 4cyl 181ci 3.0L Ga | 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007 |
| Volvo Penta | 3.0GLP | 3000cc, 3L/181CI 4-Cyl , Gas | 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007 |
| Volvo Penta | 4.3GXi Osi | 6cyl 262ci 4.3L Ga | 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007 |
| Volvo Penta | 4.3GXi | 4300cc, 4.3L/262CI 6-Cyl , Gas | 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007 |
| Volvo Penta | 4.3Osi | 4300cc, 4.3L/262CI 6-Cyl , Gas | 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007 |
| Volvo Penta | 5.0GL | 8cyl 305ci 5.0L G | 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007 |
| Volvo Penta | 5.0GXi Osi | 8cyl 305ci 5.0L G | 2001, 2002, 2003, 2004, 2005, 2006, 2007 |
| Volvo Penta | 5.7Gi | 8cyl 350ci 5.7L Ga | 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007 |
| Volvo Penta | 5.7GiL | 8cyl 350ci 5.7L Ga | 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007 |
| Volvo Penta | 5.7GiL | 5700cc, 5.7L/350CI 8-Cyl , Gas | 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007 |
| Volvo Penta | 5.7GXi | 8cyl 350ci 5.7L Ga | 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007 |
| Volvo Penta | 5.7GXiL | 8cyl 350ci 5.7L Ga | 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007 |
| Volvo Penta | 5.7GXiL | 5700cc, 5.7L/350CI 8-Cyl , Gas | 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007 |
| Volvo Penta | 5.7OSi | 8cyl 350ci 5.7L Gas | 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007 |
| Volvo Penta | 5.7OSXi | 8cyl 350ci 5.7L Gas | 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007 |
| Volvo Penta | 8.1Gi | 8cyl 496ci 8.1L Gas | 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007 |
| Volvo Penta | 8.1GiL | 8cyl 496ci 8.1L Gas | 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007 |
| Volvo Penta | 8.1GXi | 8cyl 496ci 8.1L Gas | 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007 |
| Volvo Penta | 8.1GXiL | 8cyl 496ci 8.1L Gas | 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007 |
| Volvo Penta | 8.1OSI | 8cyl 496ci 8.1L Gas | 2001, 2002, 2003, 2004, 2005, 2006, 2007 |
| Volvo Penta | IPS500G | 8cyl 496ci 8.1L Gas | 2007 |
