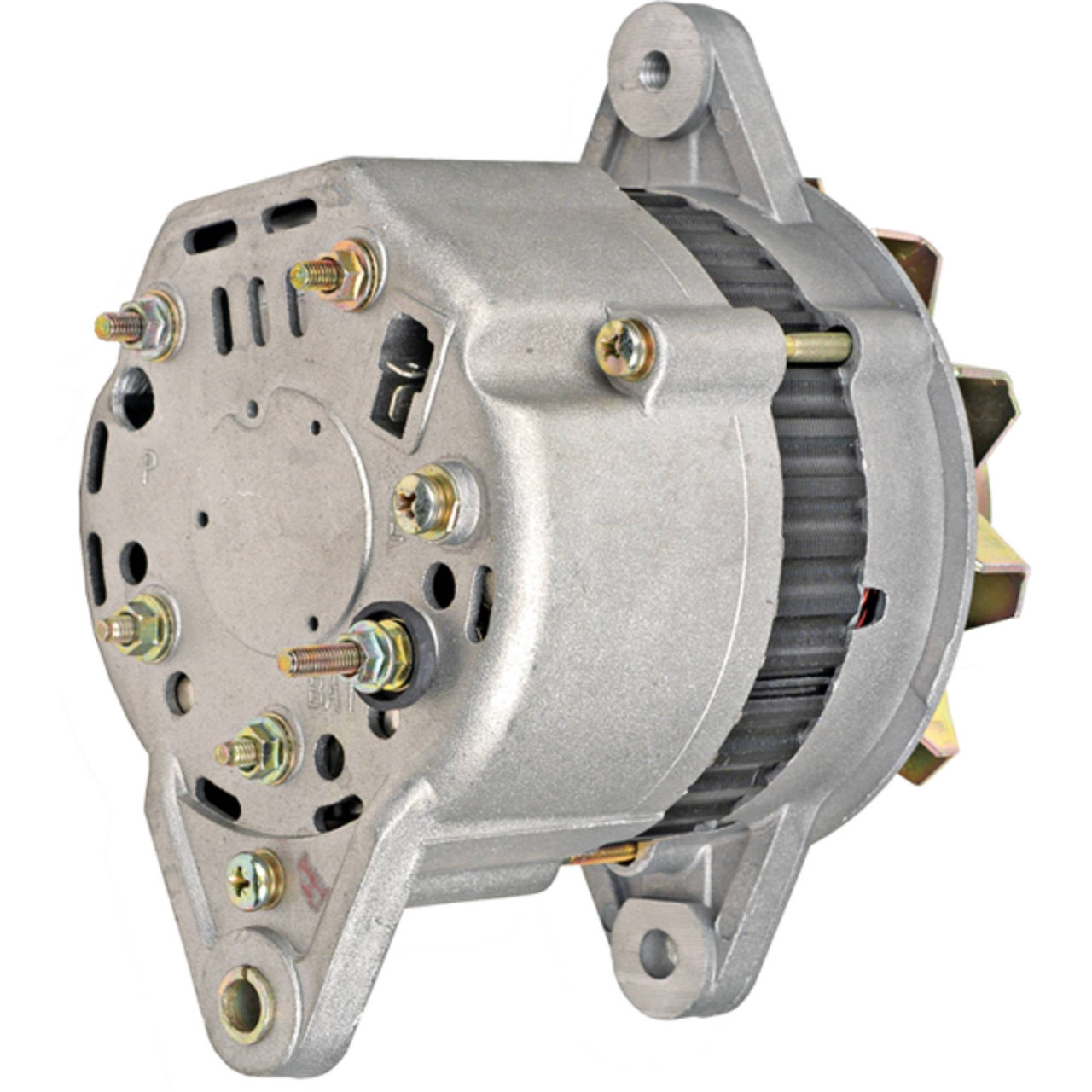

NEW Alternator for YANMAR Engines – Marine & OTH Applications; 400-44041, LR135-105, 18-6284, 128270-77200; LESTER 12109
$149.99
Specifications
| UNIT | Alternator |
| VOLT | 12 |
| AMPS | 35 |
| REGULATOR CLOCK | 1:00 |
| MOUNT HOLE ID 1 | M8x1.25 |
| MOUNT HOLE 1 TYPE | Threaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| MOUNT HOLE ID 3 | 8.500mm |
| MOUNT HOLE 3 TYPE | Unthreaded |
| MOUNTING EAR THICKNESS | 0.551″ |
| MOUNTING EAR THICKNESS | 14mm |
| MOUNTING EAR 2 THICKNESS | 0.551″ |
| MOUNTING EAR 2 THICKNESS | 14mm |
| FAN LOCATION | External |
| REGULATOR LOCATION | Internal |

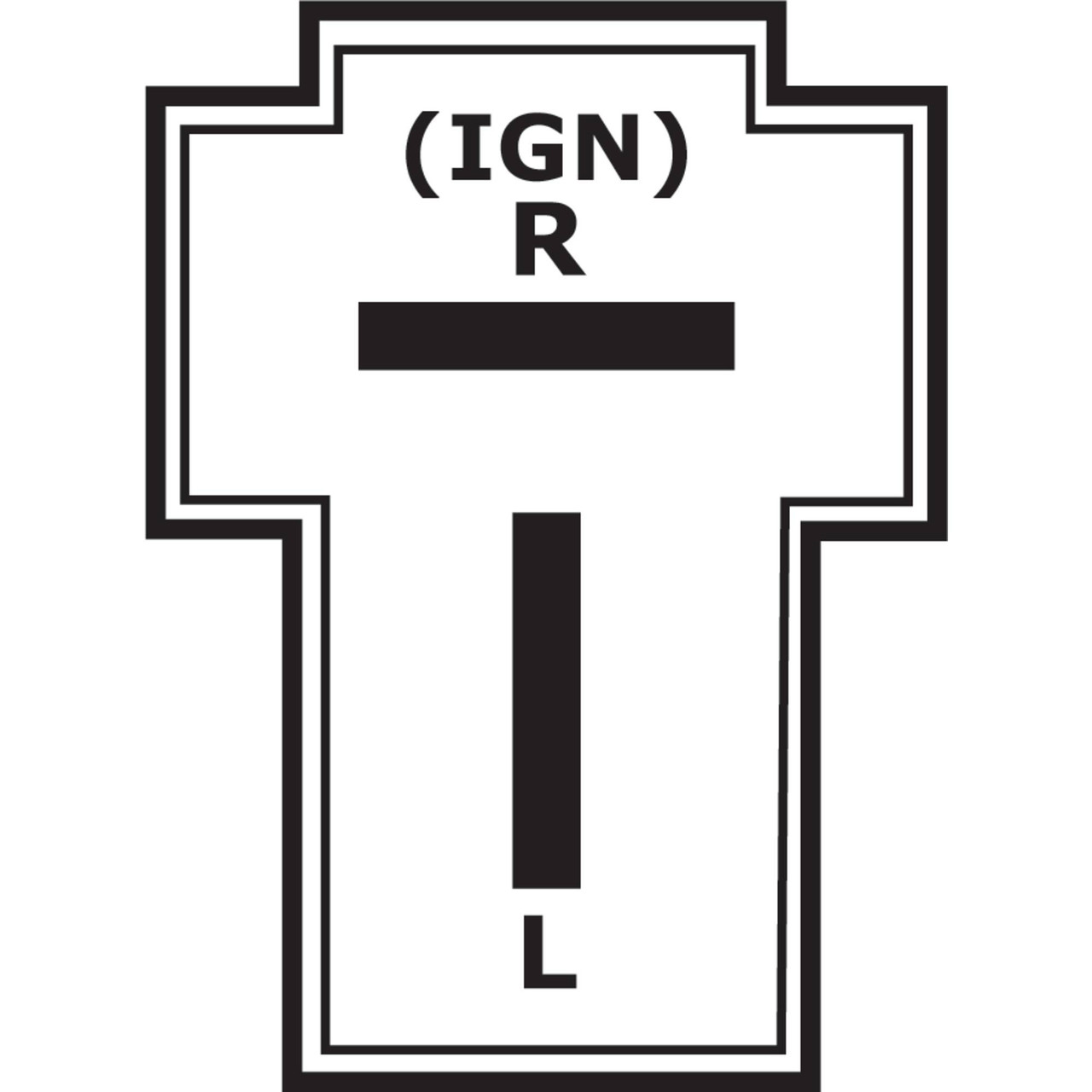

| TERMINAL ID 2 | B+ |
| TERMINAL 2 SIZE | M5x0.8 |
| TERMINAL ID 3 | R |
| TERMINAL ID 4 | L |
| POLARITY | Negative |
| NUMBER OF GROOVES | 1 |
| PULLEY TYPE | Solid |
| WARRANTY | 1 Year |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | AHI0060 |
| EMP | 4-6284 |
| HITACHI | LR135-105 |
| J&N ELECTRICAL PRODUCTS | 400-44041 |
| LESTER | 12109 |
| LUCAS ELECTRIC | LRA01191 |
| SIERRA MARINE | 18-6284 |
| YANMAR | 128270-77200 |
Applications
Part fit
| MAKE | MODEL | ENGINE | YEAR |
| Allis Chalmers | 5020 | 2-77 Diesel | |
| Allis Chalmers | 5030 | 2-90 Diesel | |
| Allis Chalmers | 6140 | 3-142 Toyosha Diesel | |
| Deutz | 5220 | Diesel | |
| Deutz | 5230 | Diesel | |
| Isuzu | Misc. Industrial Equipment | 3AE1 Engine | |
| Isuzu | Misc. Industrial Equipment | 4JB1 Engine | |
| Isuzu | Misc. Industrial Equipment | C240 Engine | |
| Massey Ferguson | MF1030 | 3-87 Diesel | |
| Massey Ferguson | MF1035 | 3-92 Diesel | |
| Massey Ferguson | MF1040 | 3-122 Diesel | |
| Massey Ferguson | MF1045 | 3-122 Diesel | |
| Massey Ferguson | MF205 | 2-77 Diesel | |
| Massey Ferguson | MF210 | 2-77 Diesel | |
| Massey Ferguson | MF2104 | 2-77 Diesel | |
| Massey Ferguson | MF220 | 2-90 Diesel | |
| Massey Ferguson | MF2204 | 2-90 Diesel | |
| White | 21 4WD Field Boss | Iseki 3-71 Diesel | |
| White | 21 Field Boss | Iseki 3-71 Diesel | |
| White | 37 4WD Field Boss | Isuzu 4-111 Diesel | |
| White | 37 Field Boss | Isuzu 4-111 Diesel | |
| White | 43 4WD Field Boss | Isuzu 4-145 Diesel | |
| White | 43 Field Boss | Isuzu 4-145 Diesel | |
| Yanmar | 1GM | 1cyl 19.41ci 0.318 | 1980, 1981, 1982, 1983, 1984 |
| Yanmar | 1GM10 | 1cyl 19.41ci 0.318 | |
| Yanmar | 1GM10C | 1cyl 19.41ci 0.318 | 1982, 1983, 1984 |
| Yanmar | 1GM10L | 1cyl 19.41ci 0.318 | |
| Yanmar | 1GM10VE | 1cyl 19.41ci 0.318 | |
| Yanmar | 1GML | 1cyl 19.41ci 0.318 | |
| Yanmar | 1GML | 318cc, 318cc 1-Cyl Diesel | 1982 |
| Yanmar | 1GMY | 318cc, 318cc 1-Cyl Diesel | 1982 |
| Yanmar | 2GM | 2cyl Diesel | 1980, 1981, 1982, 1983, 1984 |
| Yanmar | 2GM20 | 2cyl 38.81ci 0.636 | |
| Yanmar | 2GMF | 2cyl Diesel | 1980, 1981, 1982, 1983, 1984 |
| Yanmar | 2GMFL | 2cyl Diesel | |
| Yanmar | 2GMFY(E)-E | 2cyl Diesel | |
| Yanmar | 2GML | 2cyl Diesel | |
| Yanmar | 2GMYE-EC | 2cyl Diesel | |
| Yanmar | 2GMZ | 2cyl 0.586L Diesel | |
| Yanmar | 2QM15 | 2cyl 0.662L Diesel | 1977, 1978, 1979, 1980 |
| Yanmar | 2QM15 | 2cyl 0.662L Diesel | 1980 |
| Yanmar | 2TD | 2cyl Diesel | |
| Yanmar | 2TM | 2cyl Diesel | |
| Yanmar | 3GM | 3cyl Diesel | 1980, 1981, 1982, 1983, 1984 |
| Yanmar | 3GM | 3cyl Diesel | 1984 |
| Yanmar | 3GMD | 3cyl Diesel | |
| Yanmar | 3GMF | 3cyl Diesel | |
| Yanmar | 3GMFY-E | 3cyl Diesel | |
| Yanmar | 3GMLE | 3cyl Diesel | |
| Yanmar | 3HM | 3cyl Diesel | 1980, 1981, 1982, 1983, 1984 |
| Yanmar | 3HM | 3cyl Diesel | 1984 |
| Yanmar | 3HMF | 3cyl Diesel | 1980, 1981, 1982, 1983, 1984 |
| Yanmar | 3HMF | 3cyl Diesel | 1984 |
| Yanmar | 3JH2 | 3cyl Diesel | 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999 |
| Yanmar | 3JH2 | 3cyl Diesel | 1999 |
| Yanmar | 3JH3 | 3cyl Diesel | 1999, 2000, 2001, 2002, 2003 |
| Yanmar | 3JH3 | 3cyl Diesel | 2003 |
| Yanmar | 3JH3Z | 3cyl Diesel | |
| Yanmar | 3TD | All | |
| Yanmar | 3TM | All | |
| Yanmar | 4GM | 4cyl Diesel | |
| Yanmar | 4GM | All | |
| Yanmar | 4JH | 4cyl Diesel | |
| Yanmar | 4JH | 4-Cyl Diesel | 1982 |
| Yanmar | 4JH2L-HTNE | 4cyl Diesel | |
| Yanmar | 4JH2L-HTNE | 4-Cyl Diesel | 1988 |
| Yanmar | 4JH2L-TNE | 4cyl Diesel | |
| Yanmar | 4JH2L-TNE | 4-Cyl Diesel | 1988 |
| Yanmar | 4JH3 | 4cyl Diesel | 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003 |
| Yanmar | 4JH3 | 4-Cyl Diesel | 2003 |
| Yanmar | 4JH3ZA | 4cyl Diesel | 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003 |
| Yanmar | 4JH3ZA | 4-Cyl Diesel | 2003 |
| Yanmar | 4JH-HT | 4cyl Diesel | |
| Yanmar | 4JH-HT | 4-Cyl Diesel | 1982 |
| Yanmar | 4JH-HT-Z | 4cyl Diesel | |
| Yanmar | 4JH-HT-Z | 4-Cyl Diesel | 1982 |
| Yanmar | 4JH-T | 4cyl Diese | |
| Yanmar | 4JH-T | 4-Cyl Diesel | 1982 |
| Yanmar | 4JH-TZ | 4cyl Diesel | |
| Yanmar | 4JH-TZ | 4-Cyl Diesel | 1982 |
| Yanmar | 4JHZ | 4cyl Diesel | |
| Yanmar | 4JHZ | 4-Cyl Diesel | |
| Yanmar | 4TD | 4cyl Diesel | |
| Yanmar | 4TD | 4-Cyl Diesel | 1982 |
| Yanmar | 4TM | 4cyl Diesel | |
| Yanmar | 4TM | 4-Cyl Diesel | 1982 |
| Yanmar | KM2A | ||
| Yanmar | KM2P | ||
| Yanmar | KM3V | ||
| Yanmar | Y-5M |
