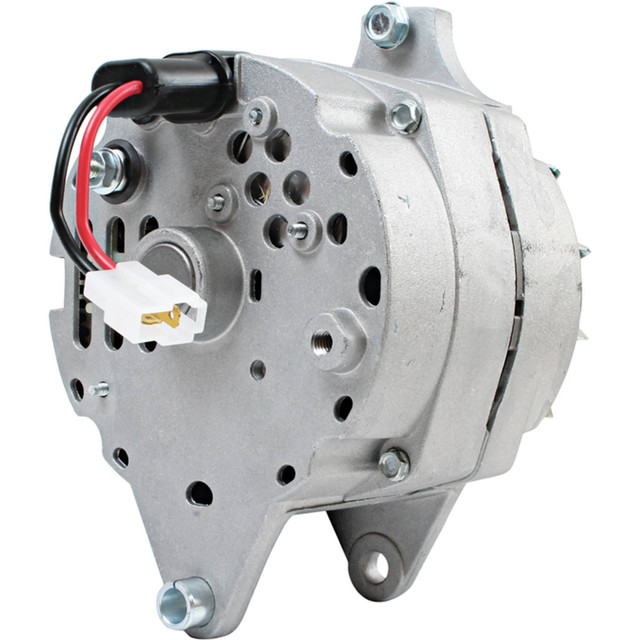

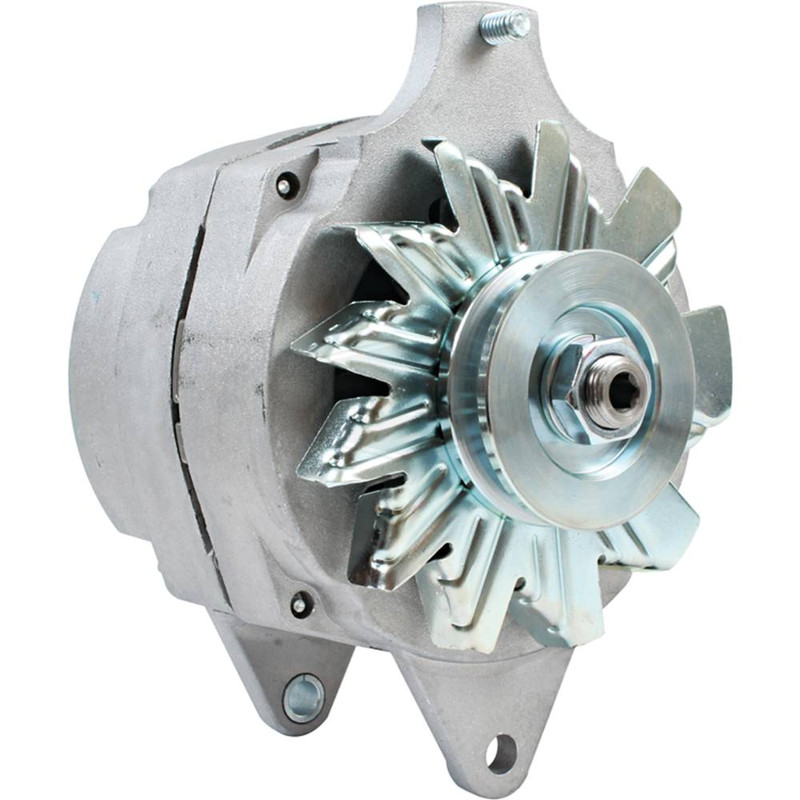

NEW Alternator for YANMAR Engines – Marine; 400-44109, 4-6971, 20109
$199.99
Add’l Info: 3-Wire System, All Components Assembled in USA
Specifications
| UNIT TYPE | Alternator |
| FAMILY | Delco 10SI |
| CRITICAL NOTE | Negative Ground |
| VOLT | 12 |
| AMPS | 120 |
| REGULATOR CLOCK | 12:30 |
| MOUNT HOLE ID 1 | 5/16-18 |
| MOUNT HOLE 1 TYPE | Threaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| MOUNT HOLE ID 3 | 10mm |
| MOUNT HOLE 3 TYPE | Unthreaded |
| MOUNTING EAR THICKNESS | 0.476″ |
| MOUNTING EAR THICKNESS | 12.100mm |
| MOUNTING EAR 2 THICKNESS | 0.374″ |
| MOUNTING EAR 2 THICKNESS | 9.500mm |
| MOUNTING EAR 3 THICKNESS | 0.787″ |
| MOUNTING EAR 3 THICKNESS | 20mm |
| FAN LOCATION | External |
| REGULATOR LOCATION | Internal |

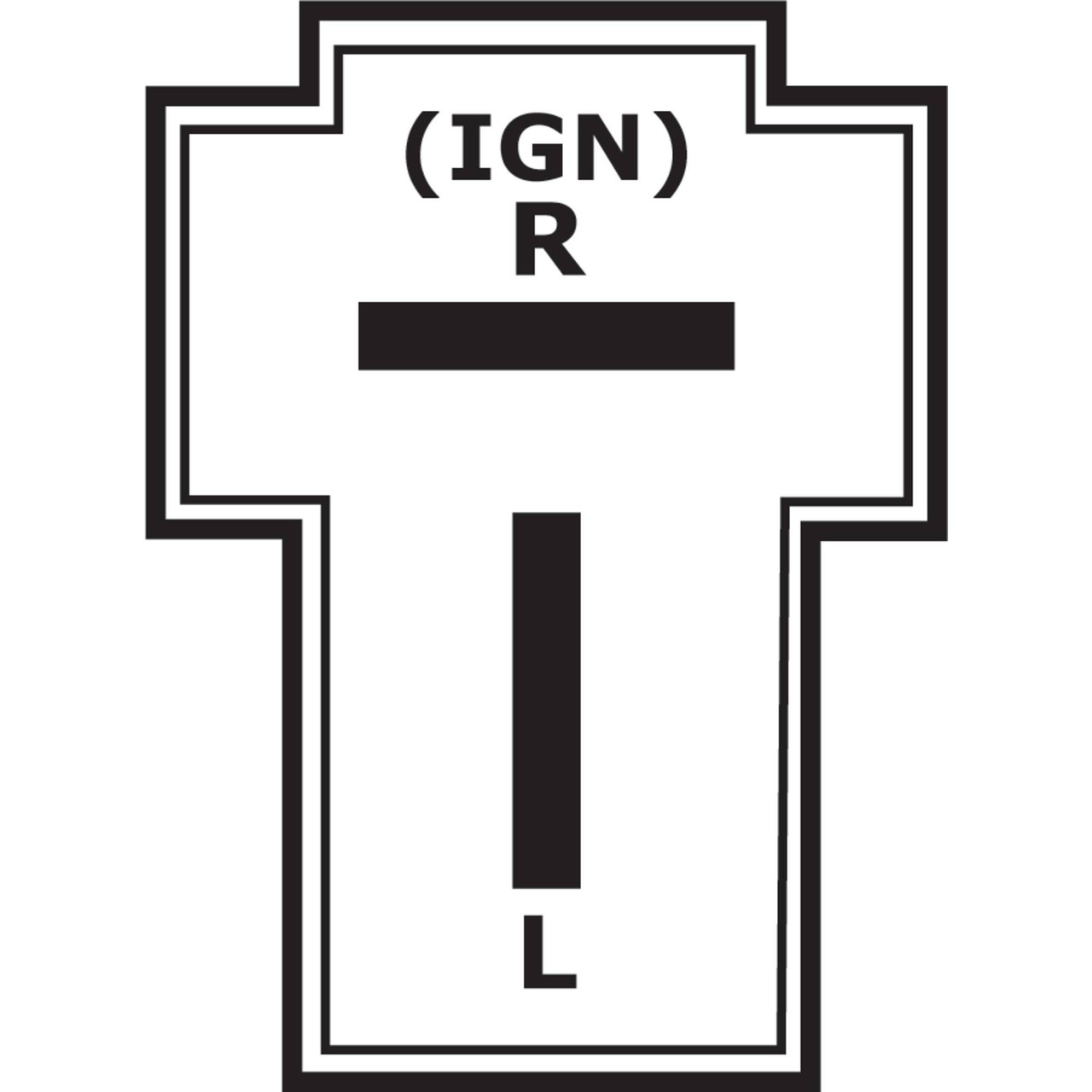

| TERMINAL ID 2 | B+ |
| TERMINAL 2 SIZE | 12-24 |
| TERMINAL ID 3 | R |
| TERMINAL 3 SIZE | 10-32 |
| TERMINAL ID 4 | IGN |
| TERMINAL 4 SIZE | Spade |
| TERMINAL ID 5 | L |
| TERMINAL 5 SIZE | Spade |
| POLARITY | Negative |
| NUMBER OF GROOVES | 1 |
| PULLEY TYPE | Solid |
| PULLEY OUTER DIAMETER | 2.618″ |
| PULLEY OUTER DIAMETER | 66.500mm |
| WARRANTY | 1 Year |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | ADR0439 |
| EMP | 4-6971 |
| J&N ELECTRICAL PRODUCTS | 400-44046, 400-44109 |
Applications
Part fit
| MAKE | MODEL | ENGINE | YEAR |
| Yanmar | 2GM20 | 2cyl 38.81ci 0.636 | |
| Yanmar | 2GMFL | 2cyl Diesel | |
| Yanmar | 2GMFY(E)-E | 2cyl Diesel | |
| Yanmar | 2GML | 2cyl Diesel | |
| Yanmar | 2GMYE-EC | 2cyl Diesel | |
| Yanmar | 3GM30 | 3cyl Diesel | |
| Yanmar | 3HM35 | 3cyl Diesel | 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992 |
| Yanmar | 3HM35 | 3cyl Diesel | 1992 |
| Yanmar | 3JH2 | 3cyl Diesel | 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999 |
| Yanmar | 3JH2 | 3cyl Diesel | 1999 |
| Yanmar | 3JH2BE | 3cyl Diesel | 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999 |
| Yanmar | 3JH2BE | 3cyl Diesel | 1999 |
| Yanmar | 3JH2E | 3cyl Diesel | 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999 |
| Yanmar | 3JH2E | 3cyl Diesel | 1999 |
| Yanmar | 3JH3 | 3cyl Diesel | 1999, 2000, 2001, 2002, 2003 |
| Yanmar | 3JH3 | 3cyl Diesel | 2003 |
| Yanmar | 3JH3E | 3cyl Diesel | |
| Yanmar | 3JH3E-YEU | 3cyl Diesel | |
| Yanmar | 3JH4E | 3cyl 100ci 1.64 | |
| Yanmar | 3JH4E | 3cyl Diesel | |
| Yanmar | 3YM20 | 3cyl Diesel | |
| Yanmar | 3YM20 | ||
| Yanmar | 3YM30 | 3cyl 68ci 1.116 | |
| Yanmar | 3YM30 | ||
| Yanmar | 4JH2-CE | 4cyl Diesel | |
| Yanmar | 4JH2-CE | 4-Cyl Diesel | 1988 |
| Yanmar | 4JH2-DTE | 4cyl Diesel | |
| Yanmar | 4JH2-DTE | ||
| Yanmar | 4JH2-E | 4cyl Diesel | |
| Yanmar | 4JH2-E | ||
| Yanmar | 4JH2-HTE | 4cyl Diesel | |
| Yanmar | 4JH2-HTE | ||
| Yanmar | 4JH2-TE | 4cyl Diesel | |
| Yanmar | 4JH2-TE | ||
| Yanmar | 4JH2-UTE | 4cyl Diesel | |
| Yanmar | 4JH2-UTE | 4-Cyl Diesel | 1988 |
| Yanmar | 4JH3-CE | 4cyl Diesel | 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003 |
| Yanmar | 4JH3-CE | 4-Cyl Diesel | 2003 |
| Yanmar | 4JH3-DTE | 4cyl Diesel | 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003 |
| Yanmar | 4JH3-DTE | ||
| Yanmar | 4JH3E | 4cyl Diesel | 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003 |
| Yanmar | 4JH3E | 4-Cyl Diesel | 2003 |
| Yanmar | 4JH3-HTE | 4cyl Diesel | 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003 |
| Yanmar | 4JH3-HTE | ||
| Yanmar | 4JH3-TCE | 4cyl Diesel | 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003 |
| Yanmar | 4JH3-TCE | 4-Cyl Diese | 2003 |
| Yanmar | 4JH3-TE | 4cyl Diesel | 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003 |
| Yanmar | 4JH3-TE | ||
| Yanmar | 4JH3-TE-YEU | 4cyl Diesel | 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003 |
| Yanmar | 4JH3-TE-YEU | 4-Cyl Diesel | 2003 |
| Yanmar | 4JH-DTE | 4cyl Diesel | |
| Yanmar | 4JH-DTE | ||
| Yanmar | 4JHE | 4cyl Diesel | |
| Yanmar | 4JHE | 4-Cyl Diesel | |
| Yanmar | 4JH-HT-E | 4cyl Diesel | |
| Yanmar | 4JH-HTE | ||
| Yanmar | 4JH-TE | 4cyl Diesel | |
| Yanmar | 4JH-TE | ||
| Yanmar | 4JM-7Z | Al | |
| Yanmar | 4LHA-DTE | 4cyl Diesel | |
| Yanmar | 4LHA-DTE | 4-Cyl Diese | |
| Yanmar | 4LHA-DTZ | 4cyl Diesel | |
| Yanmar | 4LHA-DTZ | 4-Cyl Diese | |
| Yanmar | 4LHA-HTE | 4cyl Diesel | |
| Yanmar | 4LHA-HTE | 4-Cyl Diese | |
| Yanmar | 4LHA-HTZE | 4cyl Diesel | |
| Yanmar | 4LHA-HTZE | 4-Cyl Diese | |
| Yanmar | 4LHA-STE | 4cyl Diesel | |
| Yanmar | 4LHA-STE | 4-Cyl Diese | |
| Yanmar | 4LHA-STZE | 4cyl Diesel | |
| Yanmar | 4LHA-STZE | 4-Cyl Diese | |
| Yanmar | 4LH-DTE | 4cyl Diesel | |
| Yanmar | 4LH-DTE | ||
| Yanmar | 4LH-HTE | 4cyl Diesel | |
| Yanmar | 4LH-HTE | ||
| Yanmar | 4LH-STE | 4cyl Diesel | |
| Yanmar | 4LH-STE | ||
| Yanmar | 4LH-TE | 4cyl Diesel | |
| Yanmar | 4LH-TE | ||
| Yanmar | 6LY2-STE | 6cyl Diesel | |
| Yanmar | 6LY2-STE | ||
| Yanmar | 6LYA-STE | 6cyl Diesel | |
| Yanmar | 6LYA-STE | ||
| Yanmar | 6LYA-UTE | 6cyl Diesel | |
| Yanmar | 6LYA-UTE | ||
| Yanmar | 6LYM-STE | 6cyl Diese | |
| Yanmar | 6LYM-STE | ||
| Yanmar | 6LYM-UTE | 6cyl Diese | |
| Yanmar | 6LYM-UTE | ||
| Yanmar | 6LY-ST | 6cyl Diese | |
| Yanmar | 6LY-ST | 6-Cyl Diese | 1992 |
| Yanmar | 6LY-STE | 6cyl Diese | |
| Yanmar | 6LY-STE | ||
| Yanmar | 6LY-STM | 6cyl Diese | |
| Yanmar | 6LY-STM | 6-Cyl Diese | 1992 |
| Yanmar | 6LY-STZY | 6cyl Diese | |
| Yanmar | 6LY-STZY | 6-Cyl Diese | 1992 |
| Yanmar | 6LY-UT | 6cyl Diese | |
| Yanmar | 6LY-UT | 6-Cyl Diese | 1992 |
| Yanmar | 6LY-UTE | 6cyl Diese | |
| Yanmar | 6LY-UTE | ||
| Yanmar | 6LY-UTM | 6cyl Diesel | |
| Yanmar | 6LY-UTM | 6-Cyl Diese | 1992 |
| Yanmar | 6LY-UTZY | 6cyl Diesel | |
| Yanmar | 6LY-UTZY | 6-Cyl Diese | 1992 |
| Yanmar | 6PH | 6cyl Diesel | |
| Yanmar | 6PH | 6-Cyl Diesel | 1982 |
| Yanmar | 6PH-HTZY | 6cyl Diesel | |
| Yanmar | 6PH-HTZY | 6-Cyl Diesel | 1982 |
| Yanmar | 6PHM-HTE | 6cyl Diesel | |
| Yanmar | 6PHM-HTE | 6-Cyl Diesel | 1982 |
| Yanmar | 6PHM-HTZ | 6cyl Diesel | |
| Yanmar | 6PHM-HTZ | 6-Cyl Diesel | 1982 |
| Yanmar | 6PHM-TZ | 6cyl Diesel | |
| Yanmar | 6PHM-TZ | 6-Cyl Diesel | 1982 |
| Yanmar | 6PHS-HTPS | 6cyl Diesel | |
| Yanmar | 6PHS-HTPS | 6-Cyl Diesel | 1982 |
| Yanmar | 6PHS-TPS | 6cyl Diesel | |
| Yanmar | 6PHS-TPS | 6-Cyl Diesel | 1982 |
| Yanmar | KBW-20 | ||
| Yanmar | KBW-21 | ||
| Yanmar | KM2C | ||
| Yanmar | KM2P | ||
| Yanmar | KM3A | ||
| Yanmar | KM3P | ||
| Yanmar | KM3V | ||
| Yanmar | KM5A | ||
| Yanmar | UJH2E | ||
| Yanmar | UJH2E |
