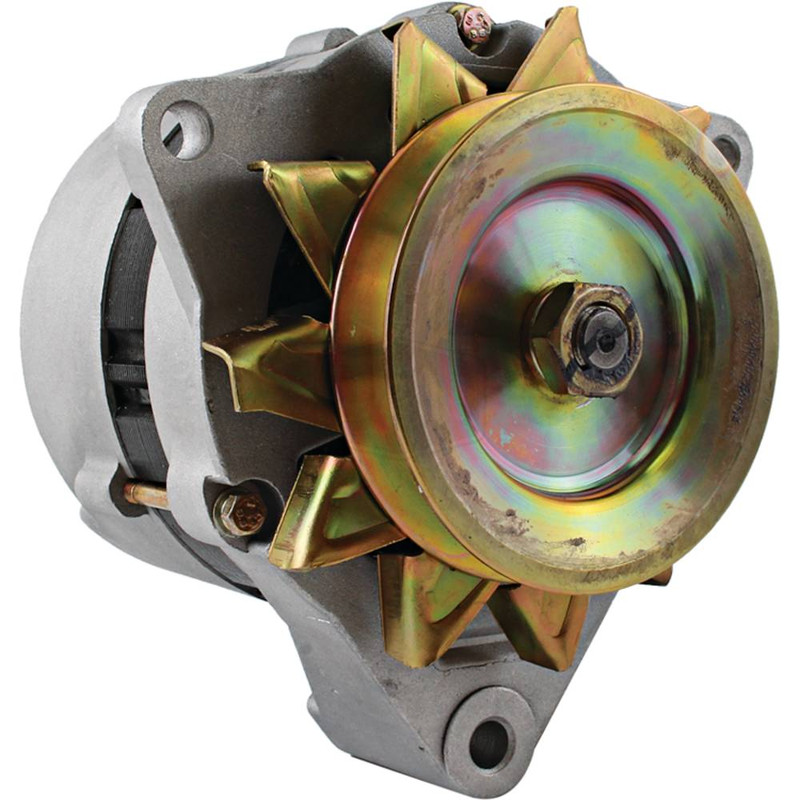

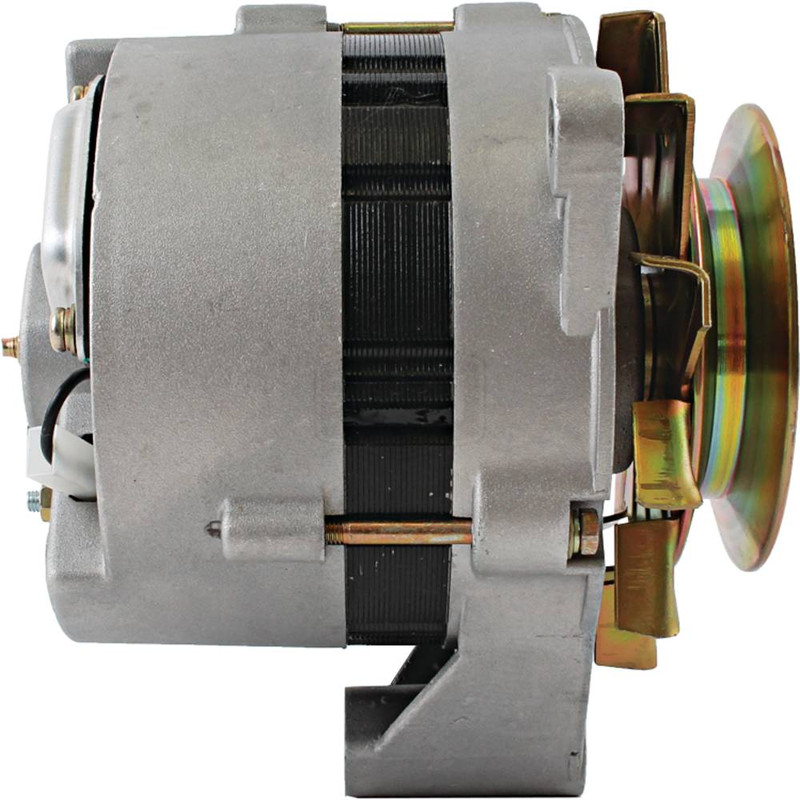

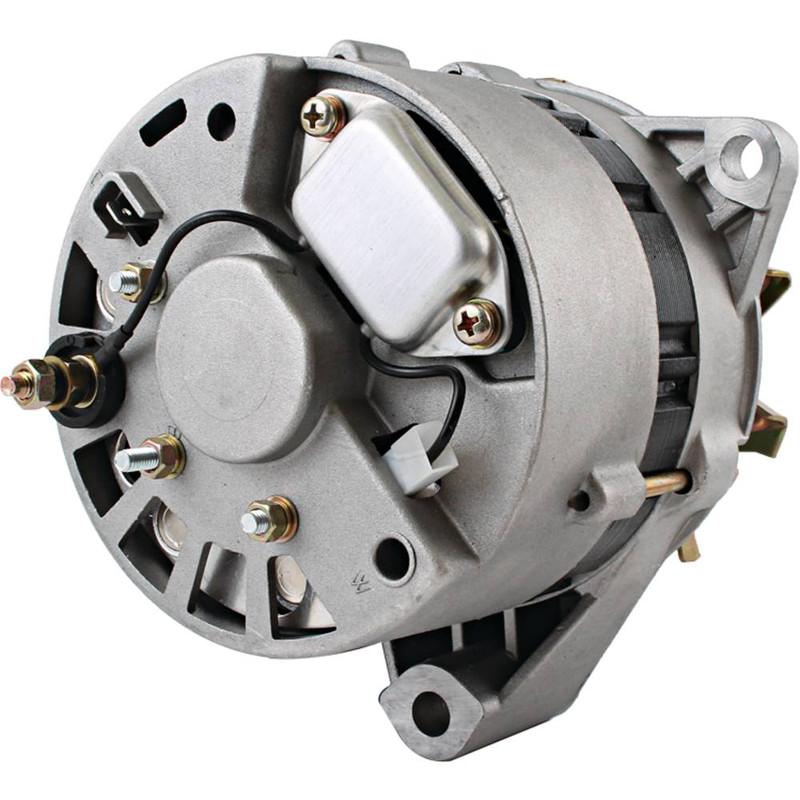

NEW Alternator for ZETOR 8111, 9211, 10111, 12111 Tractors & OTH Models; 400-42009, LRA02356, [MAGNETON 443-113-516-061, 443-113-516-184, 9516051, 9516061]; LESTER12553

$209.99

Email
Categories: ,

Specifications

UNIT TYPE Alternator
VOLT 12
AMPS 55
REGULATOR CLOCK 2:00
ROTATION DIRECTION Clockwise
MOUNT HOLE ID 1 8.500mm
MOUNT HOLE 1 TYPE Unthreaded
MOUNT HOLE 2 TYPE Unthreaded
MOUNT HOLE ID 3 10.200mm
MOUNT HOLE 3 TYPE Unthreaded
MOUNTING EAR THICKNESS 0.457″
MOUNTING EAR THICKNESS 11.600mm
MOUNTING EAR 2 THICKNESS 0.457″
MOUNTING EAR 2 THICKNESS 11.600mm
MOUNTING EAR 3 THICKNESS 1.969″
MOUNTING EAR 3 THICKNESS 50mm
FAN LOCATION External
REGULATOR LOCATION Internal
TERMINAL ID 2 B+
TERMINAL 2 SIZE M6x1.00
TERMINAL ID 3 D+
TERMINAL 3 SIZE Spade
POLARITY Negative
NUMBER OF GROOVES 1
PULLEY TYPE Solid
PULLEY OUTER DIAMETER 3.902″
PULLEY OUTER DIAMETER 99.100mm
ADD’L INFO May require re-using of the OEM pulley for some applications

WRITE YOUR OWN REVIEW


We appreciate your feedback about our parts, services experience or anything which may help us to serve you better.
[testimonial_view id=”1″]

Part Number & Interchanges

Manufacturer Name  Manufacturer Part #
ARROWHEAD AMA0005, 400-42009
LESTER 12553
LUCAS ELECTRIC LRA02356
MAGNETON 443-113-516-061, 443-113-516-184, 9516051, 9516061

Applications

Part fit

MAKE MODEL YEAR
ZATOR 8111 All
ZATOR 8145 All
ZATOR 8211 All
ZATOR 8245 All
ZATOR 9111 All
ZATOR 9145 All
ZATOR 9211 All
ZATOR 9245 All
ZATOR 9245 All
ZATOR 10111 All
ZATOR 10145 All
ZATOR 10211 All
ZATOR 10245 All
ZATOR 12011 All
ZATOR 12045 All
ZATOR 12111 All
ZATOR 12145 All
ZATOR 14145 All
ZATOR 14245 All
ZATOR 16145 All
ZATOR 16245 All
