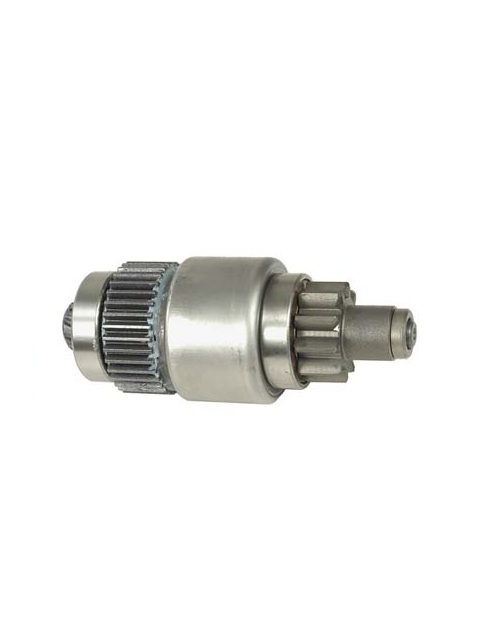

New DENSO Drive Assembly for Denso Starters; DEN-028300-3691, 028300-369, 028300-3690, 028300-3691, 028300-545, 028300-5450, 028300-5451
$153.72 $173.70
Specifications
| Specification | Value |
|---|---|
| Drive Type | Roller & Reduction Gear |
| Rotation Direction | Clockwise |
| Gear OD | 1.587″ / 40.300 mm |
| Length | 5.768″ / 146.500 mm |
| Number of Teeth | 10 |
| Number of Splines | 10 |
| Splines Type | Spiral |
| Wet Clutch Seal | FALSE |
| Clutch Gear OD | 2.185″ / 55.500 mm |
| Number of Clutch Gear Teeth | 35 |
| Assembly Includes | Pinion, Splined Shaft, Spring, Retainers & Bearings (47.0mm OD Each) |
