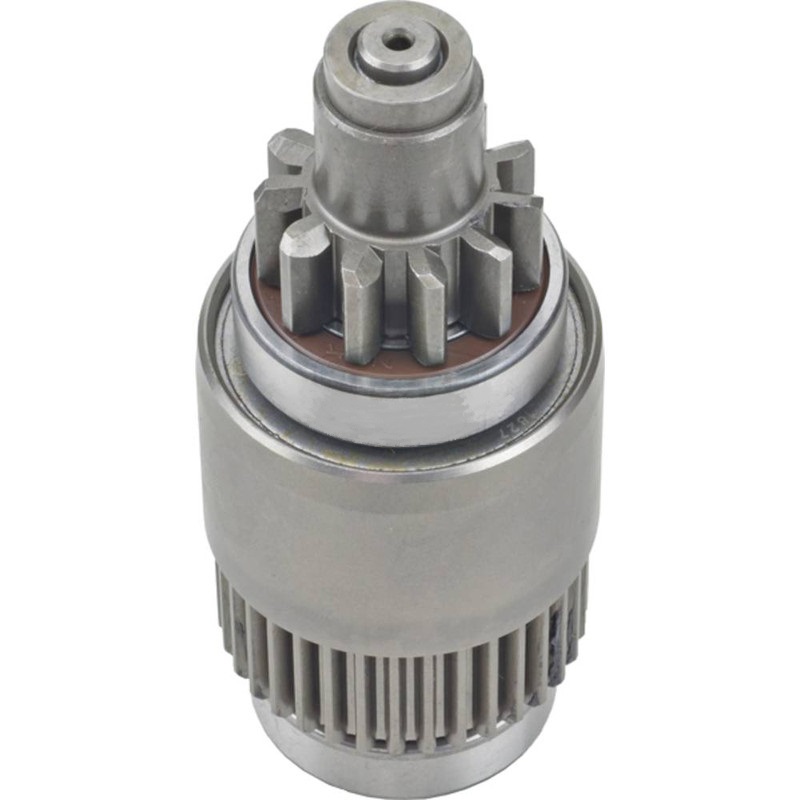

NEW Drive Assembly used on DENSO Starters; 220-52078, 028300-1730, 028300-2011, 028300-2012, 028300-2070, 028300-4550, 028300-4551, 028300-5090, 028300-5091, 1827
$92.99
Specifications
| UNIT TYPE | Starter Drive Assembly |
| QUALITY TYPE | Premium (Brazil) |
| DRIVE TYPE | Roller & Reduction Gear |
| ROTATION DIRECTION | Clockwise |
| GEAR OD | 1.575″ |
| GEAR OD | 40mm |
| LENGTH | 146.600 mm |
| LENGTH | 5.772″ |
| NUMBER OF TEETH | 11 |
| NUMBER OF SPLINES | 10 |
| SPLINES TYPE | Spiral |
| WET CLUTCH SEAL | FALSE |
| CLUTCH GEAR OD | 2.181″ |
| CLUTCH GEAR OD | 55.400mm |
| NUMBER OF CLUTCH GEAR TEETH | 35 |
| (2) Bearings Mounted |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | 220-52078, SND5040 |
| DENSO | 028300-1730, 028300-2011, 028300-2012, 028300-2070, 028300-4550, 028300-4551, 028300-5090, 028300-5091 |
| J&N ELECTRICAL PRODUCTS | 220-52018 |
| ZEN S.A. | 1827 |
