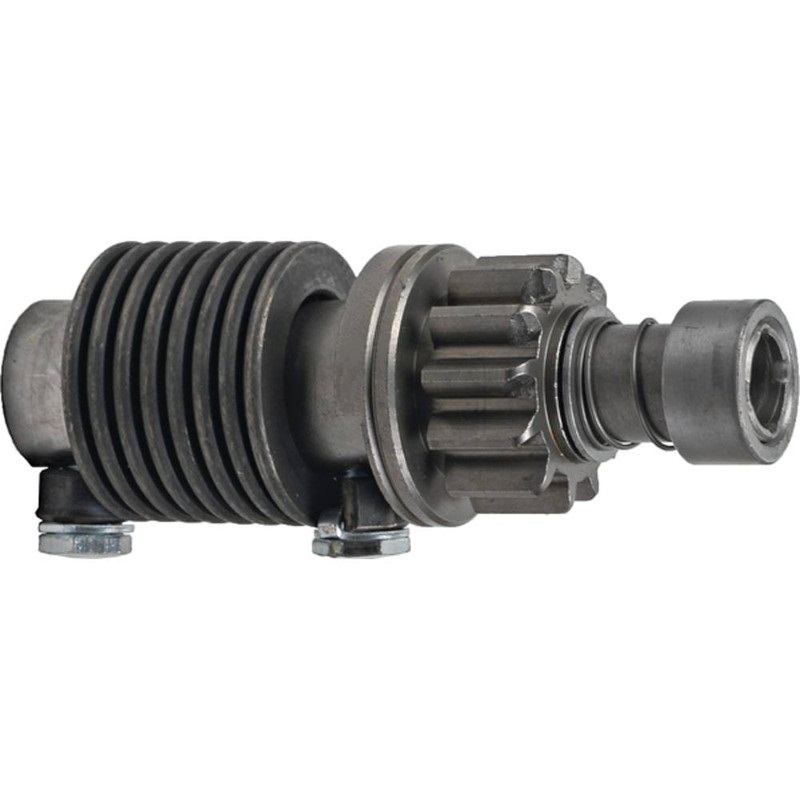

NEW Drive Assembly for DELCO & PRESTOLITE Starters; 220-12151, 1835963, 1841148, 1859383, 1881148, 1892344, 1908059, 59-70, EBB108, SD205, SDX205
$97.99
QUALITY TYPE: Premium (Brazil)
Specifications
| UNIT TYPE | Starter Drive Assembly |
| QUALITY TYPE | Premium |
| ROTATION DIRECTION | Clockwise |
| ID | 0.626″ |
| ID | 15.900 mm |
| GEAR OD | 1.811″ |
| GEAR OD | 46mm |
| LENGTH | 145.540 mm |
| LENGTH | 5.730″ |
| NUMBER OF TEETH | 12 |
| DRIVE TYPE | Spring |
| WET CLUTCH SEAL | FALSE |
| Keyway & Set Screw |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | 3-144AC, SDR5047 |
| DELCO | 1835963, 1841148, 1859383, 1881148, 1892344, 1908059 |
| FACET DRIVES | 480405, A1761, A2148, A2746, A3139 |
| FORD | SD205, SDX205 |
| J&N ELECTRICAL PRODUCTS | 220-12151R, 220-12434, 220-20023, 220-20023R |
| PRESTOLITE | 59-70, EBB108 |
