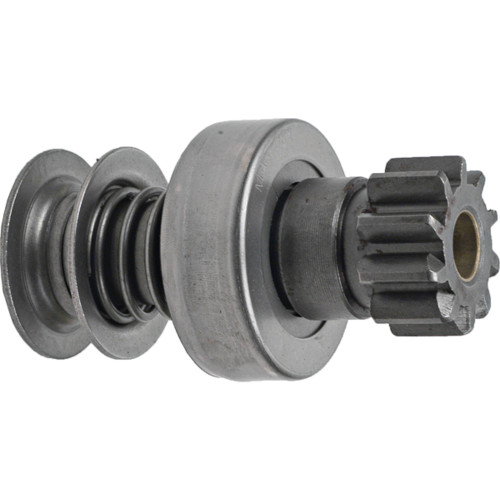

NEW Drive Assembly for PRESTOLITE Starters; 220-20061, 10-607, 18-18, 18-58, BRC3103, BRC-3103, MDL3131
$59.99
Specifications
| UNIT TYPE | Starter Drive Assembly |
| ROTATION DIRECTION | Counter Clockwise |
| ID | 0.563″ |
| ID | 14.300 mm |
| GEAR OD | 1.551″ |
| GEAR OD | 39.400mm |
| LENGTH | 106.700 mm |
| LENGTH | 4.201″ |
| NUMBER OF TEETH | 10 |
| NUMBER OF SPLINES | 3 |
| SPLINES TYPE | Spiral |
| DRIVE TYPE | Roller |
| WET CLUTCH SEAL | FALSE |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | 220-20061, SPL5023 |
| FACET DRIVES | 10607 |
| J&N ELECTRICAL PRODUCTS | 220-20001, 220-20001R, 220-20028, 220-20036, 220-20036R |
