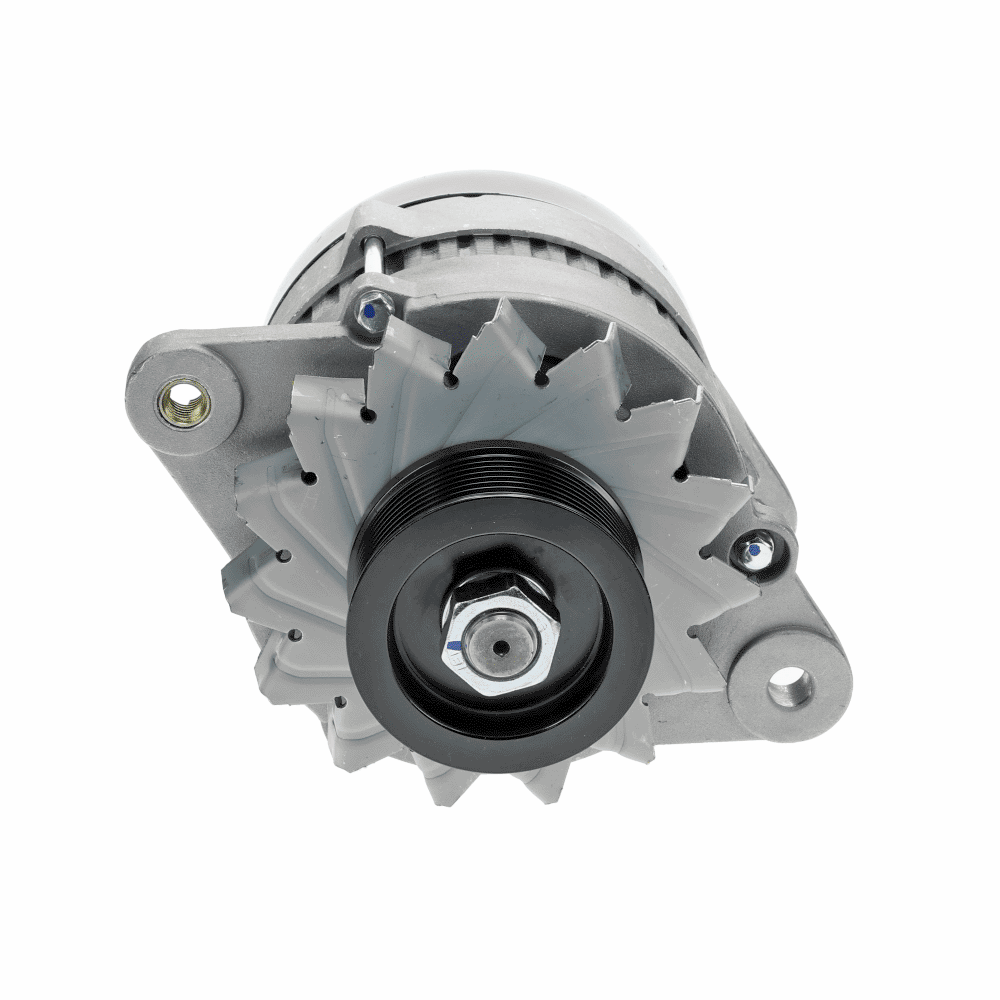

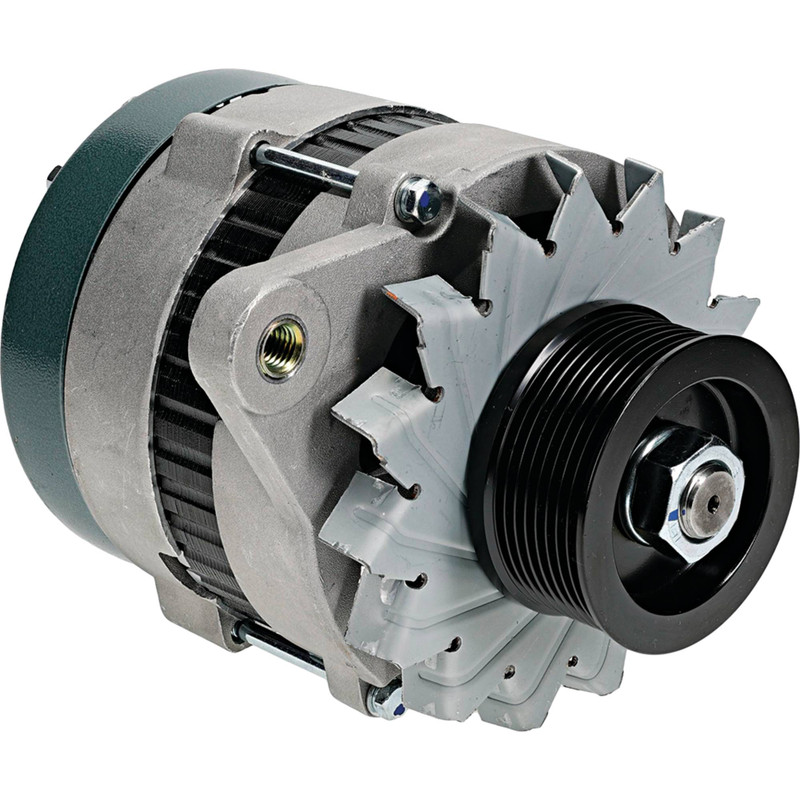

New HD Alternator for KOMATSU Excavators & Wheel Loaders; 400-50017, 600-825-6310, 600-861-6110, 600-861-6111, 01-35-7000, 0-35000-4190, 0-35000-4500, 0-35000-4501; LESTER 12769
$849.99
Quality Type: HEAVY DUTY
Specifications
| UNIT TYPE | Alternator |
| CRITICAL NOTE | This Unit Does Not Have an External Connection for AC Tap |
| VOLT | 24 |
| AMPS | 60 |
| QUALITY TYPE | Heavy Duty |
| MOUNT HOLE ID 1 | M12x1.75 |
| MOUNT HOLE 1 TYPE | Threaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| MOUNT HOLE ID 3 | 13mm |
| MOUNT HOLE 3 TYPE | Unthreaded |
| MOUNTING EAR THICKNESS | 0.630″ |
| MOUNTING EAR THICKNESS | 16mm |
| MOUNTING EAR 2 THICKNESS | 0.630″ |
| MOUNTING EAR 2 THICKNESS | 16mm |
| MOUNTING EAR 3 THICKNESS | 0.827″ |
| MOUNTING EAR 3 THICKNESS | 21mm |
| FAN LOCATION | External |
| REGULATOR LOCATION | Internal |
| TERMINAL ID 2 | B+ |
| TERMINAL 2 SIZE | M6x1.00 |
| TERMINAL ID 3 | D+ |
| TERMINAL 3 SIZE | M5x0.8 |
| POLARITY | Negative |
| NUMBER OF GROOVES | 8 |
| PULLEY TYPE | Solid |
| PULLEY OUTER DIAMETER | 3.740″ |
| PULLEY OUTER DIAMETER | 95mm |
| WARRANTY | 1 Year |
