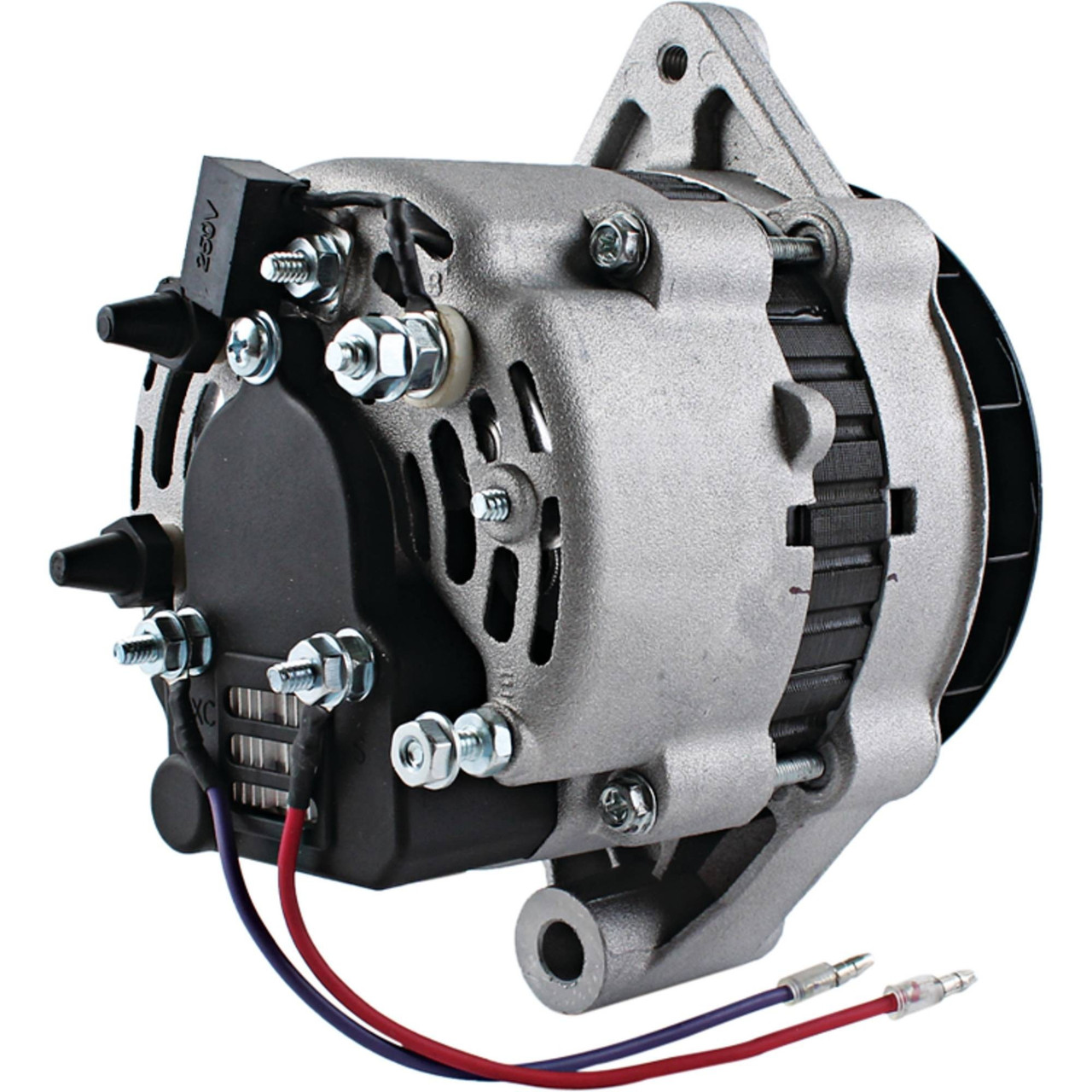

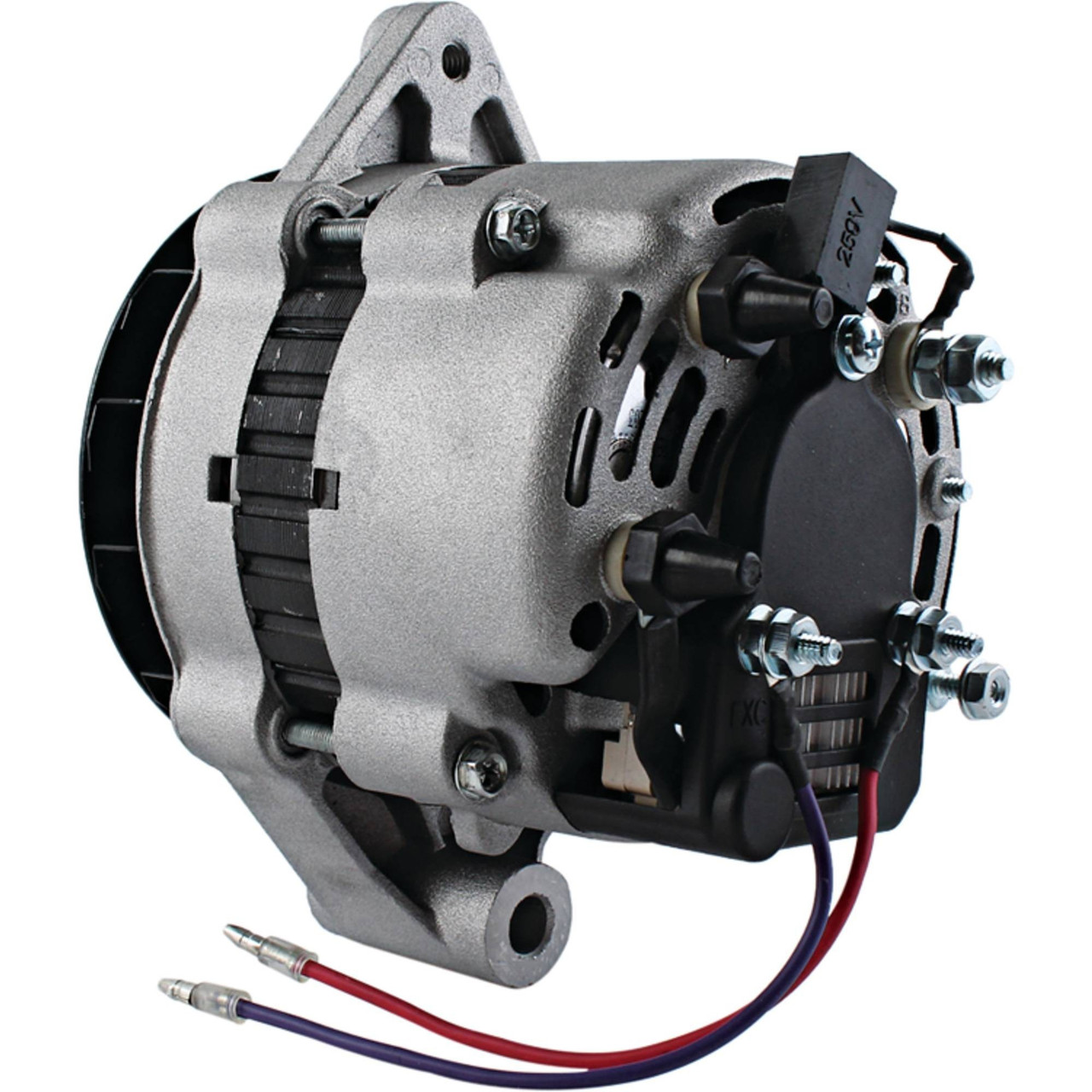

NEW HD Alternator for Late Model VOLVO PENTA Applications; 400-46040, AMN0005, AMN0024, AC165617, M50924, M59207; LESTER 12176
$179.99
Specifications
| UNIT TYPE | Alternator |
| QUALITY TYPE | Heavy Duty |
| CRITICAL NOTE | Built with NSK Brand Bearinggs |
| VOLT | 12 |
| AMPS | 65 |
| ROTATION DIRECTION | Clockwise |
| MOUNT HOLE ID 1 | 9.700mm |
| MOUNT HOLE 1 TYPE | Unthreaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| MOUNTING EAR THICKNESS | 1.988″ |
| MOUNTING EAR THICKNESS | 50.500mm |
| MOUNTING EAR 2 THICKNESS | 1.988″ |
| MOUNTING EAR 2 THICKNESS | 50.500mm |
| FAN LOCATION | External |
| REGULATOR LOCATION | Internal |
| TERMINAL ID 2 | B+ |
| TERMINAL 2 SIZE | 1/4/2020 |
| TERMINAL ID 3 | EXC |
| TERMINAL 3 SIZE | 10-24 Stud |
| TERMINAL ID 4 | S |
| TERMINAL 4 SIZE | 10-24 Stud |
| TERMINAL ID 5 | E |
| TERMINAL 5 SIZE | 10-24 Stud |
| POLARITY | Negative |
| NUMBER OF GROOVES | 6 |
| PULLEY TYPE | Solid |
| PULLEY OUTER DIAMETER | 2.665″ |
| PULLEY OUTER DIAMETER | 67.700mm |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| API MARINE | 20057 |
| ARCO MARINE | 60060 |
| ARROWHEAD | AMN0024, 400-46040 |
| CARGO | 111710 |
| J&N Electrical Products | 400-46009 |
| LESTER | 12176 |
| MANDO | AC165617, M50924, M59207 |
| MERCURY MARINE | 807653, 807653T |
| SIERRA MARINE | 18-5960 |
| WAI | 12176N-6G, 1-2310-31MD |
