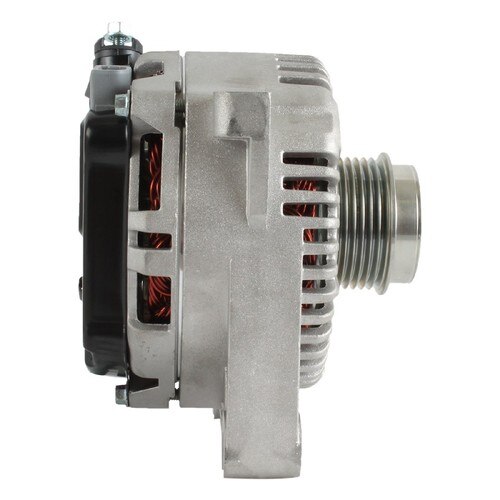

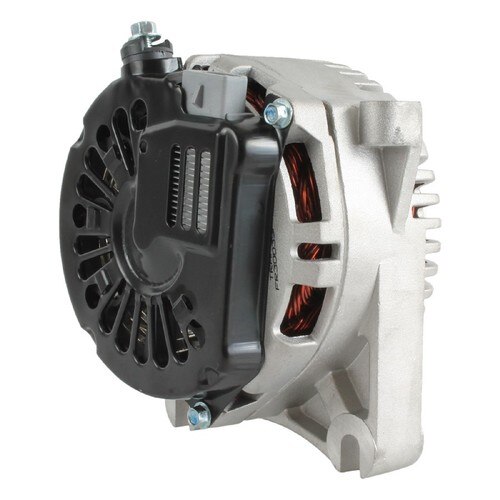

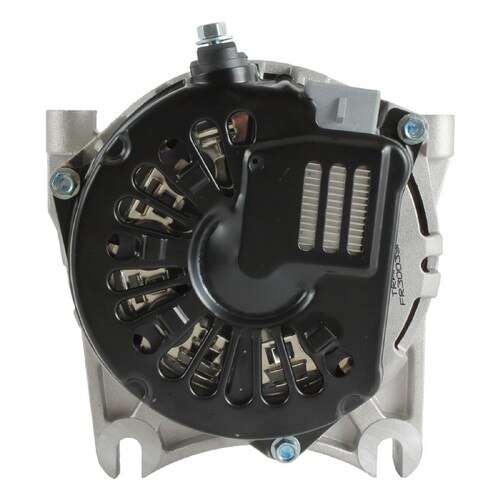

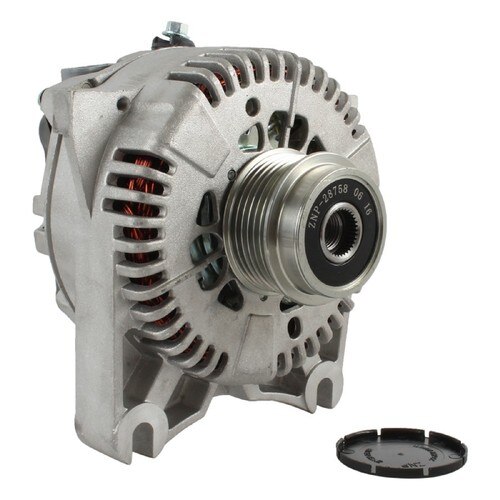

New HIGH OUTPUT Alternator for FORD MUSTANG & MACH Series; AFD0149-220, 400-14182, 400-14183
$299.99
INFO: 4G 12V 220A Alt
SEARCH: 4G 12V 130A Alt
Specifications
| UNIT TYPE | Alternator |
| FAMILY | Ford 4G |
| VOLT | 12 |
| AMPS | 220 |
| REGULATOR CLOCK | 12:00 |
| QUALITY TYPE | High Output |
| ROTATION DIRECTION | Clockwise |
| MOUNT HOLE ID 1 | M6x1.00 |
| MOUNT HOLE 1 TYPE | Threaded |
| MOUNT HOLE ID 2 | M6x1.00 |
| MOUNT HOLE 2 TYPE | Threaded |
| MOUNT HOLE ID 3 | 9.500mm |
| MOUNT HOLE 3 TYPE | Slotted |
| MOUNT HOLE ID 4 | 9.500mm |
| MOUNT HOLE 4 TYPE | Slotted |
| MOUNTING EAR 3 THICKNESS | 1.213″ |
| MOUNTING EAR 3 THICKNESS | 30.800mm |
| MOUNTING EAR 4 THICKNESS | 1.213″ |
| MOUNTING EAR 4 THICKNESS | 30.800mm |
| FAN LOCATION | Internal |
| REGULATOR LOCATION | Internal |
| TERMINAL ID 2 | B+ |
| TERMINAL 2 SIZE | M6x1.00 |
| TERMINAL ID 3 | A |
| TERMINAL 3 SIZE | Spade |
| TERMINAL ID 4 | D |
| TERMINAL 4 SIZE | Spade |
| TERMINAL ID 5 | I |
| TERMINAL 5 SIZE | Spade |
| POLARITY | Negative |
| NUMBER OF GROOVES | 6 |
| PULLEY TYPE | Clutch |
| PULLEY OUTER DIAMETER | 2.520″ |
| PULLEY OUTER DIAMETER | 64mm |
| WARRANTY | 1 Year |
