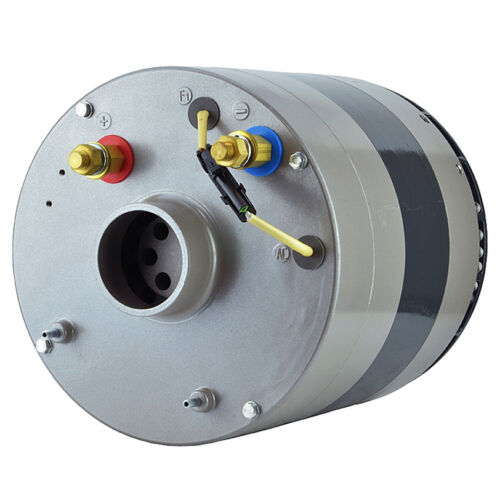

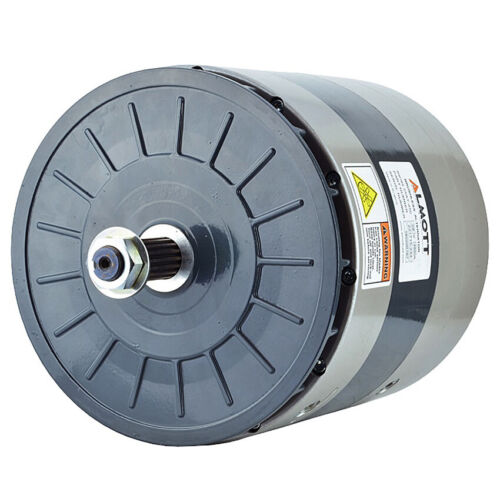

NEW High Output Alternator for TRANSIT BUSES & MOTOR COACHES Applications; 400-42006, 450, 3590028150, EMP3590028150, POWER450
$3,999.99
Applications: Luxury Motor Coaches & “E-Fan” Electric Fan Cooling Systems
Specifications
| UNIT TYPE | Alternator |
| CRITICAL NOTE | 3″ Rear Cover |
| VOLT | 24 |
| AMPS | 450 |
| MOUNT HOLE ID 1 | 1/2-13 |
| MOUNT HOLE 1 TYPE | Threaded |
| MOUNT HOLE ID 2 | 1/2-13 |
| MOUNT HOLE 2 TYPE | Threaded |
| MOUNT HOLE ID 3 | 1/2-13 |
| MOUNT HOLE 3 TYPE | Threaded |
| MOUNT HOLE ID 4 | 1/2-13 |
| MOUNT HOLE 4 TYPE | Threaded |
| FAN LOCATION | External |
| REGULATOR LOCATION | External |
| TERMINAL ID 2 | B+ |
| TERMINAL 2 SIZE | 1/2-20 |
| TERMINAL ID 3 | F1 |
| TERMINAL 3 SIZE | Pin |
| TERMINAL ID 4 | B- |
| TERMINAL 4 SIZE | 1/2-20 |
| TERMINAL ID 5 | AC |
| TERMINAL 5 SIZE | Pin |
| POLARITY | Insulated |
| WARRANTY | 1 Year |
| ADD’L INFO | Splined Rotor Shaft Will Accept 50DN Type Pulleys, Air Cooled, Cradle Mount, 290 Amps at Idle (2000rpm Rotor Speed) |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | 400-42006 |
| EMP | 3590028150, 450, POWER450 |
