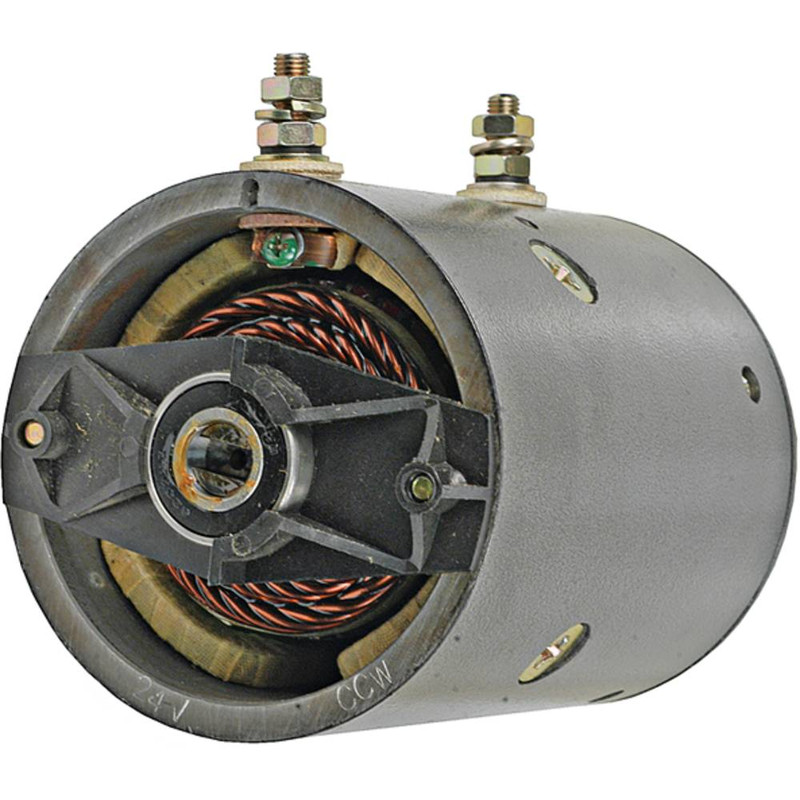

NEW Hyd. Motor for FENNER STONE & MONARCH Applications; 430-20027, 8104, 8120, M642-0102, [PRESTOLITE 46-2073, MHP4005, MHP4005S, MHP4009, MHP4009S]; LESTER 6129
$179.99
Specifications
| UNIT TYPE | Hyd Motor |
| VOLT | 24 |
| CURRENT TYPE | DC |
| POWER | 2 kw |
| HP | 2.682 |
| ROTATION DIRECTION | Counter Clockwise |
| OD | 114.300 mm |
| OD | 4.500″ |
| LENGTH | 170 mm |
| LENGTH | 6.693″ |
| TERMINAL 2 SIZE | 5/16-24 |
| TERMINAL 3 SIZE | 5/16-24 |
| SHAFT | .250″ Drive Slot |
| WARRANTY | 1 Year |
WRITE YOUR OWN REVIEW
We appreciate your feedback about our parts, services experience or anything which may help us to serve you better.
[testimonial_view id=”1″]
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | LPL0010 |
| J&N ELECTRICAL PRODUCTS | 430-20027 |
| LESTER | 6129 |
| MONARCH/BUCHER | 8104, 8120, M642-0102 |
| PRESTOLITE | 46-2073, MHP4005, MHP4005S, MHP4009, MHP4009S |
| RAYMOND | 570-429, 570-429-100 |
