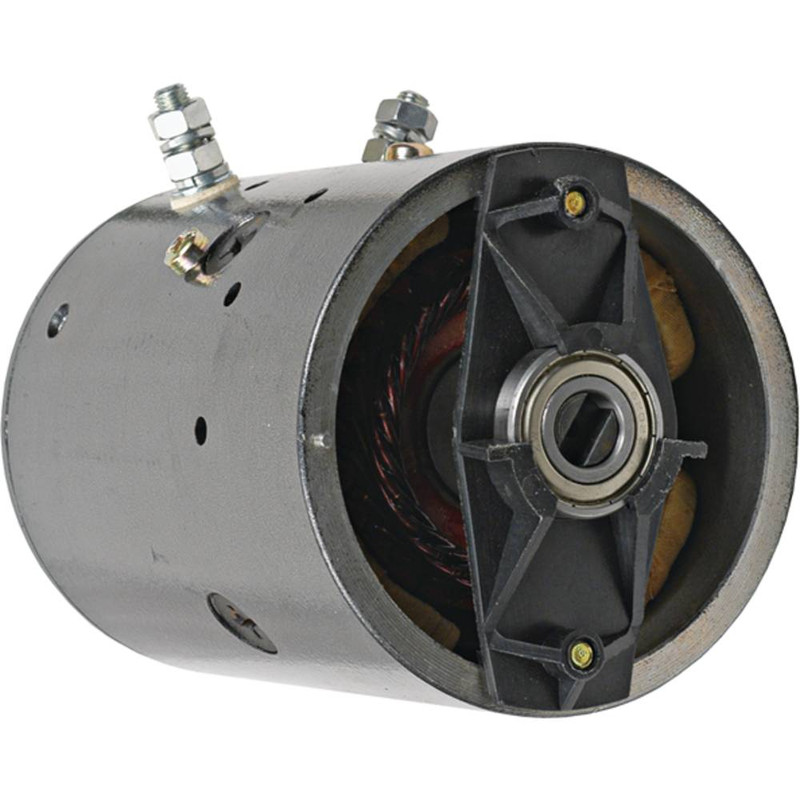

NEW Hyd. Motor for JS BARNES, MONARCH & MTE HYDRAULICS Applications; 430-20040, 46-175, 46-2112, [HALDEX-BARNES 220-0028, 220-0030, 220-0176]; LESTER 6035, 6037
$189.94
Specifications
| UNIT TYPE | Hyd. Motor |
| VOLT | 12 |
| POWER | 1.700 kw |
| HP | 2.28 |
| ROTATION DIRECTION | Counter Clockwise |
| OD | 114 mm |
| OD | 4.488″ |
| SHAFT OD | 0.787″ |
| SHAFT OD | 20mm |
| LENGTH | 175 mm |
| LENGTH | 6.890″ |
| TERMINAL 2 SIZE | 5/16-24 |
| TERMINAL 3 SIZE | 5/16-24 |
| SHAFT | Slotted |
| CURRENT TYPE | DC |
| NUMBER OF FIELDS | 4 |
| WARRANTY | 1 Year |
| ADD’L INFO | Double Ball Bearing, Insulated GroundUSED IN: RAYMOND CORP., HYSTER, JS BARNES MONARCH HYDRAULICS, MTE HYDRAULICS |
WRITE YOUR OWN REVIEW
We appreciate your feedback about our parts, services experience or anything which may help us to serve you better.
[testimonial_view id=”1″]
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | LPL0019 |
| HALDEX-BARNES | 220-0028, 220-0030, 220-0176 |
| J&N ELECTRICAL PRODUCTS | 430-20040 |
| LESTER | 6035, 6037 |
| PRESTOLITE | 46-175, 46-2112, 46-2126, 46-2194, 46-2559, 46-584, MDY6103, MDY6109, MDY6120, MDY6120S, MDY6121, MDY6121S, MDY6203, MDY6203S, MDY6205, MDY7065, MUE6121 |
