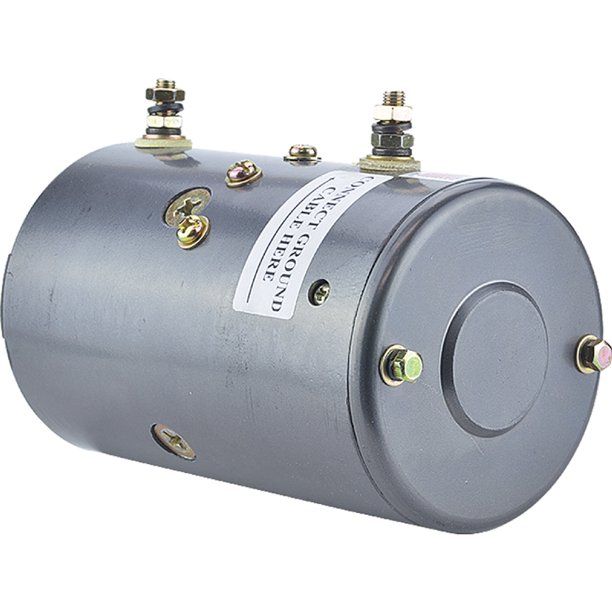

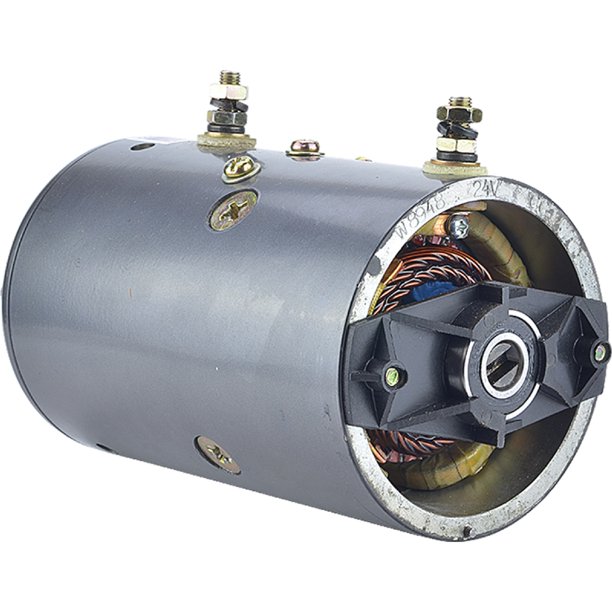

NEW Hydraulic Motor for CLARK EQUIPMENT & HALDEX-BARNES Applications; 430-20070, 62174-6, 220-0233, 46-2574, MUD4001, MUD4001S
$629.99
Specifications
| UNIT TYPE |
Hydraulic Motor |
| CURRENT TYPE |
DC |
| ROTATION DIRECTION |
Counter Clockwise |
| OD |
114.500 mm |
| OD |
4.508″ |
| LENGTH |
199.700 mm |
| LENGTH |
7.862″ |
| TERMINAL 2 SIZE |
B+ 5/16-24 |
| TERMINAL 3 SIZE |
B- 5/16-24 |
| SHAFT |
6.4mm Slot |
| NUMBER OF FIELDS |
4 |
| WARRANTY |
1 Year |
|
Double Ball Bearing, Insulated Ground |
Part Number & Interchanges
| Manufacturer Name |
Manufacturer Part # |
| ARROWHEAD |
430-20070 |
| CLARK EQUIPMENT |
62174-6 |
| HALDEX-BARNES |
220-0233 |
| PRESTOLITE |
46-2574, MUD4001, MUD4001S |
