NEW Alternator for DEUTZ Agrotron 120, 130, 165.7 & 180.7 Tractors | TUG GT-35 & GT-50DZ; 400-29055, 01181745, 01182038, 01183181, 01183427, 01183620, 1171745, 1182038; LESTER 14623
February 4, 2023NEW Alternator for CASE IH & NEW HOLLAND Applications; 400-29030, 2855467, 87371504, 504193811, MG561; LESTER 11675

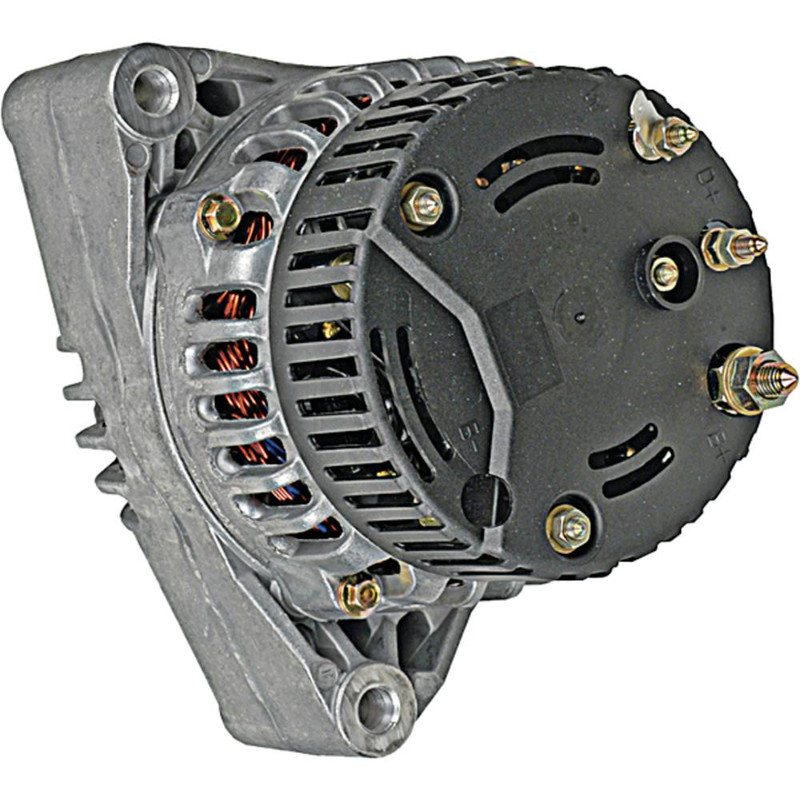

February 8, 2023New MAHLE Alternator for DEUTZ Agrotron 120, 130, 165.7 & 180.7 Tractors | TUG GT-35 & GT-50DZ; MAH-MG344, 01181745, 0118-1745, 01182038, 0118-2038, 01183181, 0118-3181, 01183427, 0118-3427, 01183620, 0118-3620, 1171745, 1182038; LESTER 14623
$454.99
Search: Mahle Alt. Replacement
Specifications
UNIT TYPE | Alternator |
FAMILY | Letrika/MAHLE AAK |
VOLT | 12 |
AMPS | 95 |
MOUNT HOLE ID 1 | 10.200mm |
MOUNT HOLE 1 TYPE | Unthreaded |
MOUNT HOLE 2 TYPE | Unthreaded |
MOUNTING EAR THICKNESS | 2.205″ |
MOUNTING EAR THICKNESS | 56mm |
MOUNTING EAR 2 THICKNESS | 2.205″ |
MOUNTING EAR 2 THICKNESS | 56mm |
FAN LOCATION | Internal |
REGULATOR LOCATION | Internal |
TERMINAL ID 2 | B+ |
TERMINAL 2 SIZE | M8x1.25 |
TERMINAL ID 3 | D |
TERMINAL 3 SIZE | M5x0.8 |
TERMINAL ID 4 | W |
TERMINAL 4 SIZE | M5x0.8 Spade Combo |
POLARITY | Negative |
Dual Mounting Ears at 10:00 & 6:00 when Observing from SRE |
Part Number & Interchanges
Manufacturer Name | Manufacturer Part # |
ARROWHEAD | 400-29055, IA1023 |
DEUTZ | 01181745, 0118-1745, 01182038, 0118-2038, 01183181, 0118-3181, 01183427, 0118-3427, 01183620, 0118-3620, 1171745, 1182038 |
KHD | 1171745, 1182038 |
LESTER | 14623 |
LETRIKA/ISKRA | 11.201.791, 11.203.062, 11.203.398, 11.204.036, AAK5142, AAK5335, AAK5567, AAK5793, IA 1023 |
LUCAS ELECTRIC | LRA03181 |
MAHLE | 11.201.791, 11.203.062, 11.203.398, 11.204.036, AAK5142, AAK5335, AAK5567, AAK5793, AAKA5142, IA1023, MG344 |
Applications
Part fit
MAKE | MODEL | ENGINE | YEAR |
Deutz | Agrotron 120 | 128HP 6-Cyl Deutz BF6M2012C | |
Deutz | Agrotron 130 | 128HP 6-Cyl Deutz BF6M2012 | |
Deutz | Agrotron 165.7 | 170HP 6-Cyl Deutz BF6M1013C | |
Deutz | Agrotron 180.7 | 170HP 6-Cyl Deutz BF6M1013C | |
Deutz | Agrotron Euro II 150.7 | 163.6HP 6-Cyl Deutz diesel | |
Tug | GT-35 | Deutz BF4M2012 Tier I | |
Tug | GT-35 | Deutz BF4M2012 Tier II | |
Tug | GT-50DZ | Tier III |
