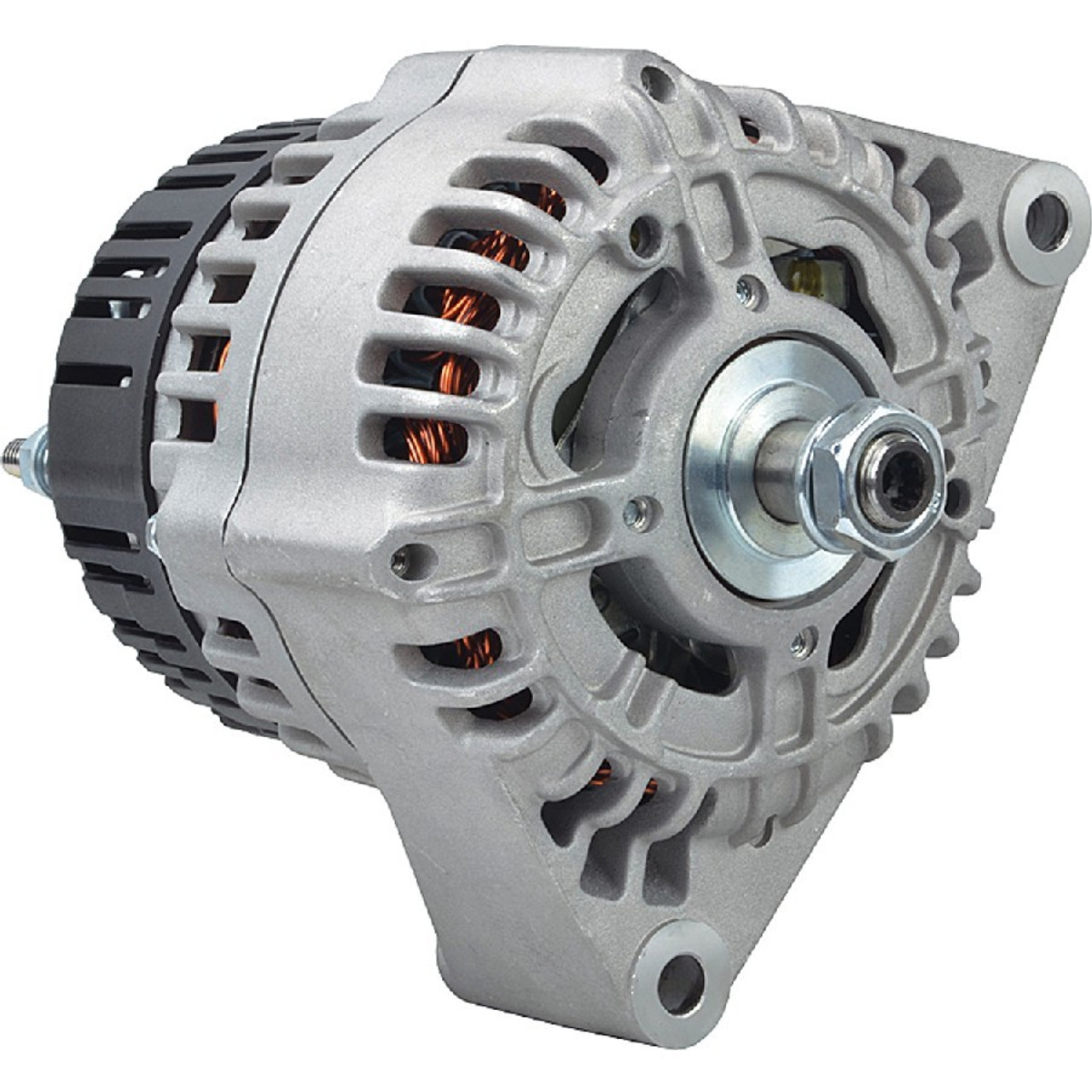

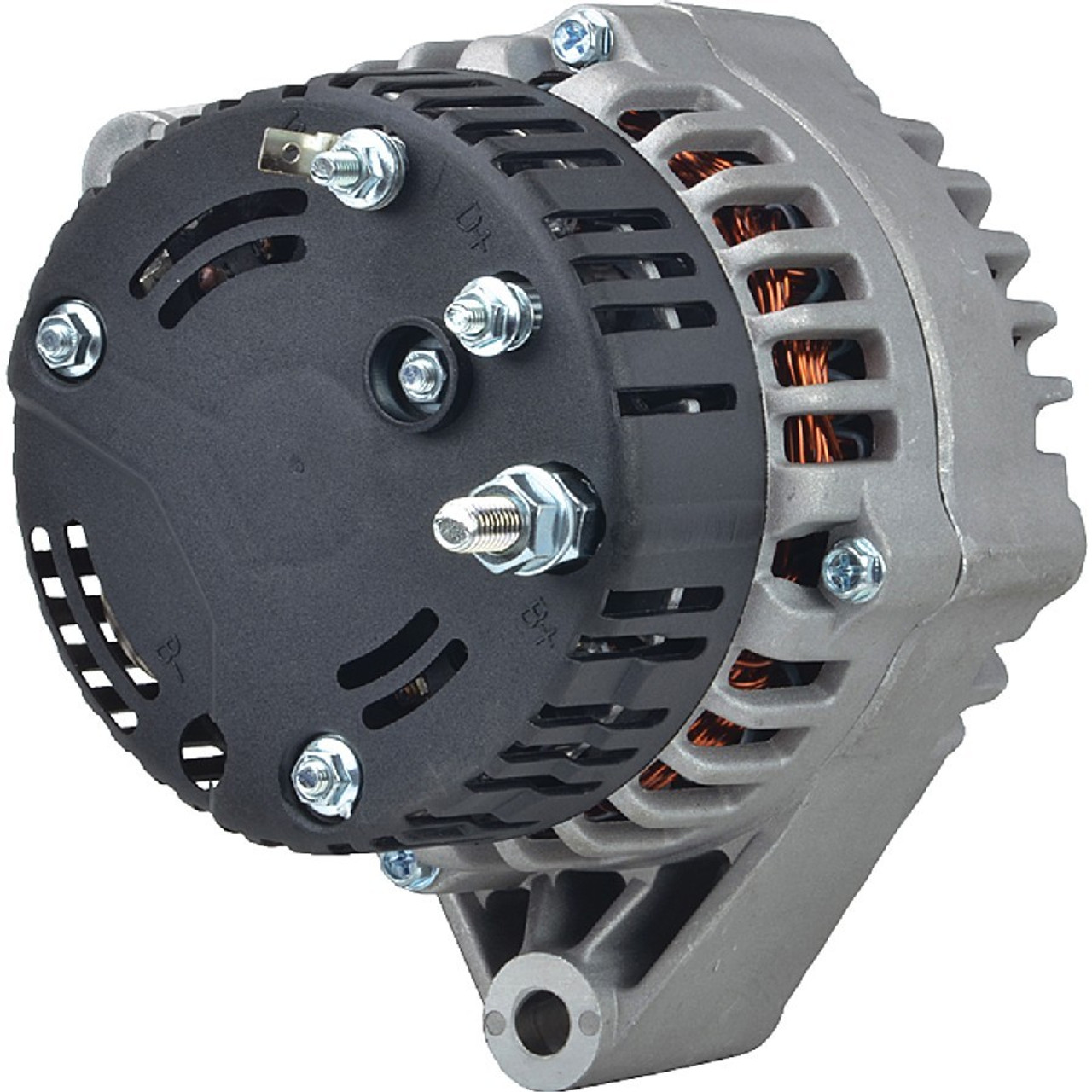

NEW Alternator for DEUTZ Agrotron 120, 130, 165.7 & 180.7 Tractors | TUG GT-35 & GT-50DZ; 400-29055, 01181745, 01182038, 01183181, 01183427, 01183620, 1171745, 1182038; LESTER 14623

$329.99

Search: Mahle Alternator

Email
Categories: , ,

Specifications

UNIT TYPE Alternator
FAMILY Letrika/MAHLE AAK
VOLT 12
AMPS 95
MOUNT HOLE ID 1 10.300mm
MOUNT HOLE 1 TYPE Unthreaded
MOUNT HOLE 2 TYPE Unthreaded
MOUNTING EAR THICKNESS 2.205″
MOUNTING EAR THICKNESS 56mm
MOUNTING EAR 2 THICKNESS 2.205″
MOUNTING EAR 2 THICKNESS 56mm
FAN LOCATION Internal
REGULATOR LOCATION Internal
TERMINAL ID 2 B+
TERMINAL 2 SIZE M8x1.25
TERMINAL ID 3 D
TERMINAL 3 SIZE M5x0.8
TERMINAL ID 4 W
TERMINAL 4 SIZE M5x0.8 Spade Combo
POLARITY Negative
SHAFT PULLEY OD 0.669″
SHAFT PULLEY OD 17mm
SHAFT M16x1.50

Part Number & Interchanges

Manufacturer Name Manufacturer Part #
ARROWHEAD 400-29055
DEUTZ 01181745, 01182038, 01183181, 01183427, 01183620, 1171745, 1182038
KHD 1171745, 1182038
LESTER 14623
MAHLE 11.203.398, AAK5567, IA1023, MG344

Applications

Part fit

MAKE MODEL ENGINE YEAR
Deutz Agrotron 120 128HP 6-Cyl Deutz BF6M2012C
Deutz Agrotron 130 128HP 6-Cyl Deutz BF6M2012
Deutz Agrotron 165.7 170HP 6-Cyl Deutz BF6M1013C
Deutz Agrotron 180.7 170HP 6-Cyl Deutz BF6M1013C
Deutz Agrotron Euro II 150.7 163.6HP 6-Cyl Deutz diesel
Tug GT-35 Deutz BF4M2012 Tier I
Tug GT-35 Deutz BF4M2012 Tier II
Tug GT-50DZ Tier III
