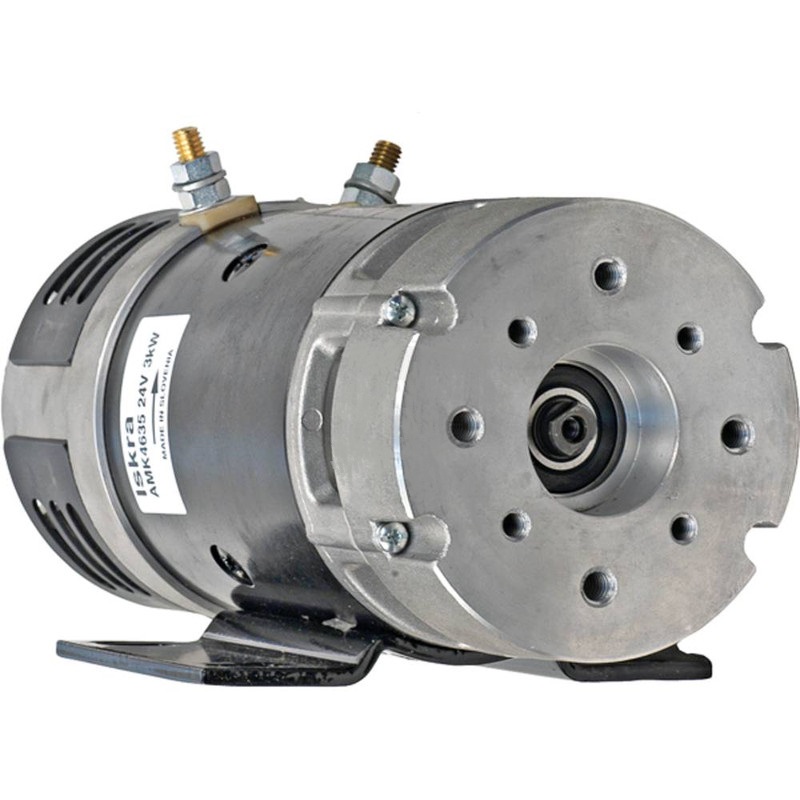

New MAHLE Hydraulic Motor for HALDEX-BARNES & SKYJACK Applications; MAH-MM288, 2201054, 220-1054, 11.216.011, 11.216.130, AMK4626, AMK4635, IM0284, MM288, 715141, 123477
$798.99 $902.86
Specifications
| UNIT TYPE | Hyd. Motor |
| CURRENT TYPE | DC |
| VOLT | 24 |
| POWER | 3 kw |
| HP | 4.023 |
| ROTATION DIRECTION | Clockwise |
| OD | 125 mm |
| OD | 4.921″ |
| SHAFT OD | 0.669″ |
| SHAFT OD | 17mm |
| LENGTH | 11.102″ |
| LENGTH | 282 mm |
| TERMINAL 2 SIZE | 3/8-16 |
| TERMINAL 3 SIZE | 3/8-16 |
| SHAFT | 11mm W x 3.5mm L Tang, 1/4-20 Threaded |
| WARRANTY | 1 Year |
| ADD’L INFO | Insulated Ground & Ventilated |
