New MAHLE Hydraulic Motor for HALDEX-BARNES & SKYJACK Applications; MAH-MM288, 2201054, 220-1054, 11.216.011, 11.216.130, AMK4626, AMK4635, IM0284, MM288, 715141, 123477
November 19, 2022NEW Hydraulic Motor for OIL SISTEM Applications; LIA0007, 430-29005, 11.212.864, 11.216.994, MM59
November 19, 2022

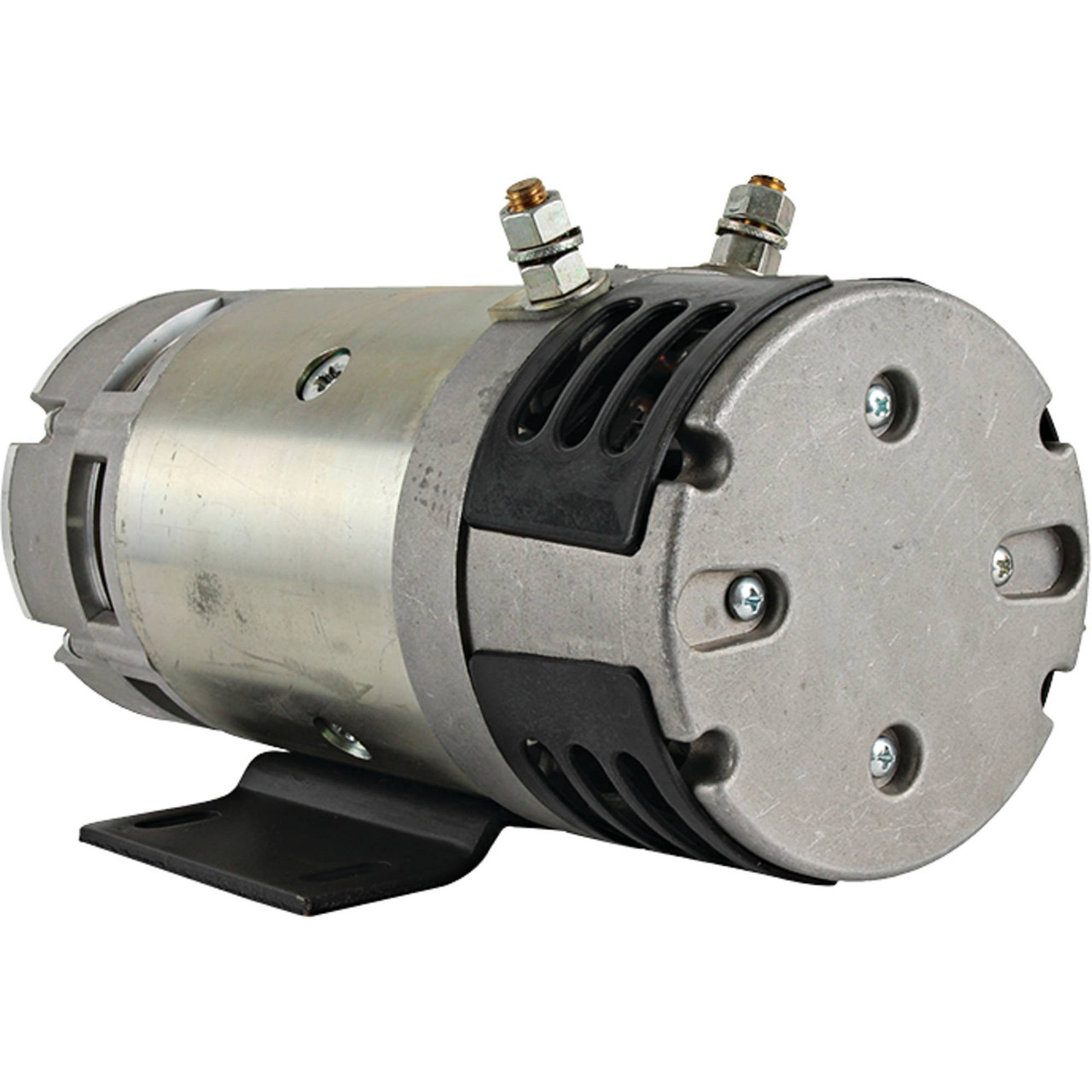

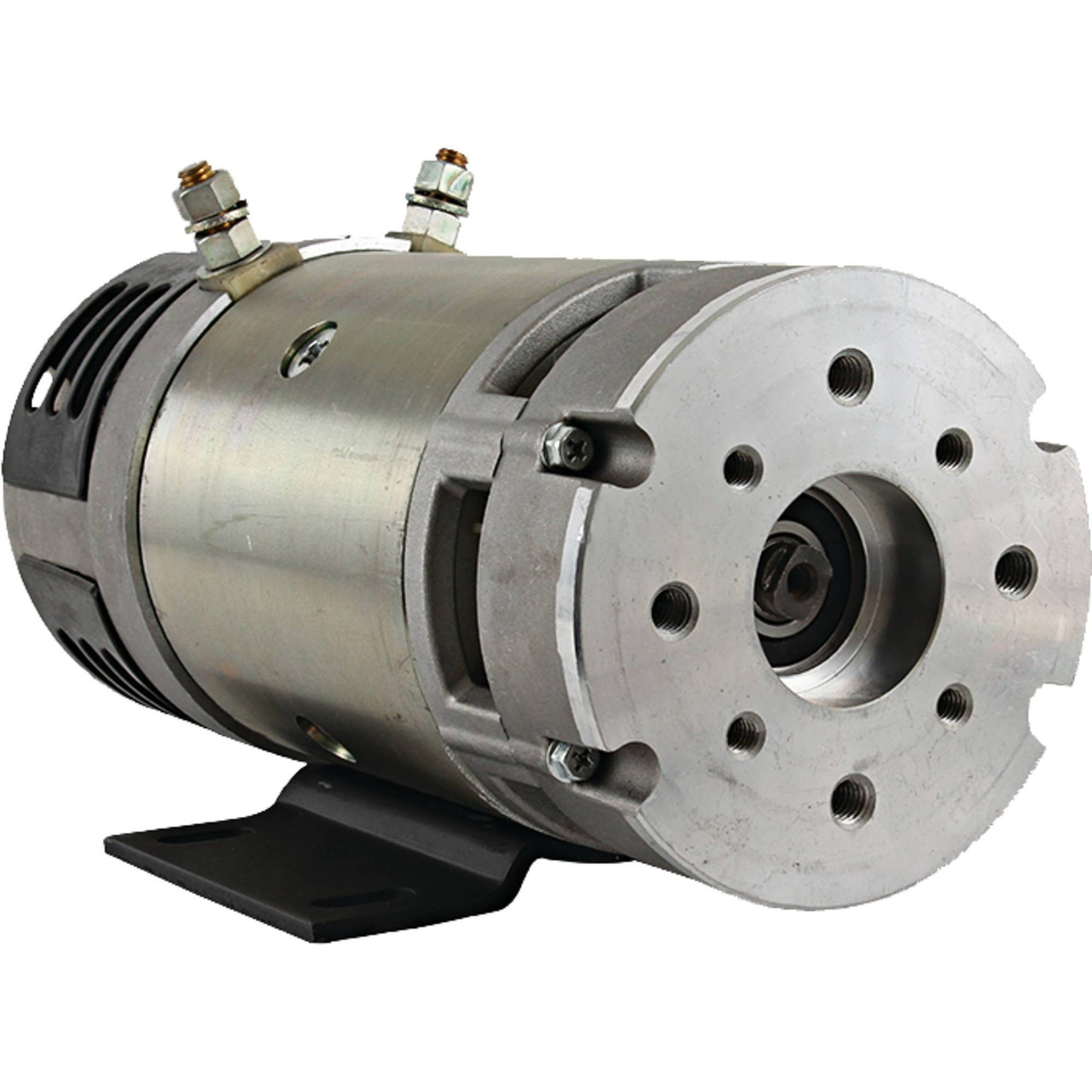

NEW Hydraulic Motor for HALDEX-BARNES & SKYJACK Applications; 430-29015, 220-1054, 11.216.130, AMK4635, IM0284, MM288, 123477
$399.99
Specifications
| UNIT TYPE |
Hyd. Motor |
| CURRENT TYPE |
DC |
| VOLT |
24 |
| POWER |
3 kw |
| HP |
4.023 |
| ROTATION DIRECTION |
Clockwise |
| OD |
125 mm |
| OD |
4.921″ |
| SHAFT OD |
0.669″ |
| SHAFT OD |
17mm |
| LENGTH |
11.102″ |
| LENGTH |
282 mm |
| TERMINAL 2 SIZE |
3/8-16 |
| TERMINAL 3 SIZE |
3/8-16 |
| SHAFT |
11mm W x 3.5mm L Tang, 1/4-20 Threaded |
| WARRANTY |
1 Year |
| ADD’L INFO |
Insulated Ground & Ventilated |
Part Number & Interchanges
| Manufacturer Name |
Manufacturer Part # |
| ARROWHEAD |
LIA0010 |
| HALDEX-BARNES |
220-1054 |
| MAHLE |
11.216.130, AMK4635, IM0284, MM288 |
| OTHER OEMS |
715141, 8106-1184 |
| SKYJACK |
123477 |
