New MAHLE Starter for MASSEY FERGUSON Tractors with PERKINS Engines; MAH-MS149, 11.130.632, AZJ3206, IS0632, MS149; LESTER 17653
June 4, 2020
New MAHLE Starter for CASE & MASSEY FERGUSON Agricultural Applications; MAH-MS206, 11.132.167, AZE4249, IS1395, MS206; LESTER 17653
June 4, 2020

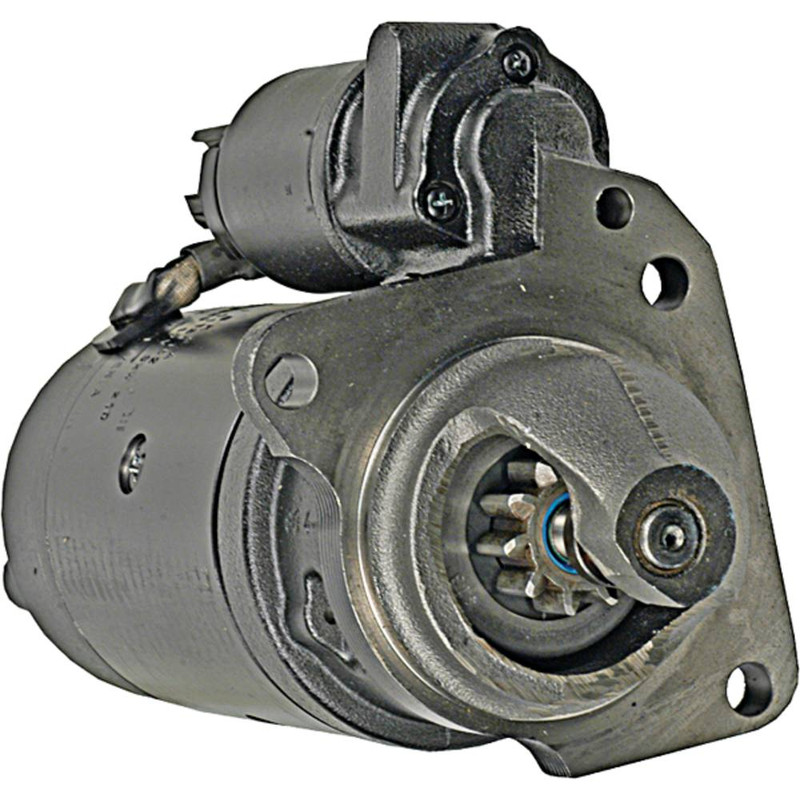

New MAHLE Starter for MASSEY FERGUSON MF Series Tractors with PERKINS Engines; MAH-MS243, 3763363M92, 11.131.093, 11.131.162, AZJ3376, AZJ3389, IS1046, MS243; LESTER 17653
$699.99
INFO: ISKRA 3.0kw DD
SEARCH OTHER VERSIONS: SLU0011, ISKRA 2.8kw DD, ISKRA 3.2kw PLGR, MAGNETON OSGR
Specifications
| UNIT TYPE | Starter |
| FAMILY | Letrika/MAHLE AZJ |
| ELECTRIC STARTER TYPE | Direct Drive (DD) |
| VOLT | 12 |
| POWER | 3 kw |
| HP | 4.023 |
| ROTATION DIRECTION | Clockwise |
| NUMBER OF TEETH | 10 |
| GEAR OD | 1.559″ |
| GEAR OD | 39.600mm |
| MOUNT HOLE ID 1 | 13.100mm |
| MOUNT HOLE 1 TYPE | Unthreaded |
| MOUNT HOLE 2 TYPE | Unthreaded |
| MOUNT HOLE ID 3 | 13.100mm |
| MOUNT HOLE 3 TYPE | Unthreaded |
| Battery Stud M8-1.25 Threaded, Motor Stud M10-1.5 Threaded, Ground Stud on CE Housing |
Part Number & Interchanges
| Manufacturer Name | Manufacturer Part # |
| ARROWHEAD | IS1046 |
| BOSCH | 0986018161 |
| DEUTZ | 3763363M92 |
| LUCAS ELECTRIC | LRS301 |
| MAHLE | 11.131.093, 11.131.162, AZJ3376, AZJ3389, IS1046, MS243 |
| MARELLI | 26273, 27522, 27540, 27571, 27582, 27593A |
| MASSEY FERGUSON | 3821819M91, 3930507R1 |
| OTHER OEMS | 2873B061, 8EA737249-001, CS1032 |
| PERKINS | 28735052, 2873B061, 2873D004 |
